Spare parts for the Leman router table

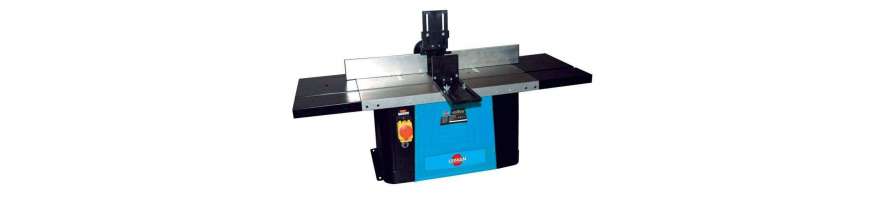

This category is dedicated to spare parts for the Leman LOTDE040 router table. This stationary router combines router-bit operation with a work table, fence and work-holding devices. It uses a carbon-brush motor, electronic speed control, height adjustment mechanism, collets, routing fence, hold-downs and a dust extraction outlet.

Part availability can change with manufacturer supply. This page is therefore not a fixed inventory of today's items. It is intended as a long-term resource for maintaining and repairing the Leman LOTDE040, covering the motor, wear parts, tool clamping system, adjustments, guards, mechanical parts and electrical components as applicable.

LOTDE040 motor and carbon brushes

The LOTDE040 uses a carbon-brush motor. Brushes are wear components that maintain electrical contact with the motor commutator. As they wear, symptoms can include difficult starting, intermittent operation, reduced power or increased sparking. Their condition should be checked before assuming that the complete motor has failed.

A motor that runs hot or appears weak should be diagnosed before replacement. Check the electrical supply, brushes, free rotation, cutter clamping and cutter condition. A blunt router bit or excessive cutting depth increases motor load considerably.

Electronic speed control and switching components

The machine uses electronic speed adjustment to match spindle speed to the cutter and operation. A speed-control or starting fault may involve the controller, switch, wiring, a connection or the motor itself.

Before ordering an electrical or electronic component, record all visible markings, voltage, reference numbers and connection arrangement. Parts that look identical can have different ratings. Never alter the wiring merely to make an unsuitable component fit.

Collets and router-bit clamping

The collet system holds the router-bit shank during high-speed rotation. The LOTDE040 is designed for several shank diameters. The collet must match the cutter shank exactly; incorrect clamping can prevent secure retention and create a serious hazard.

A scored, distorted, cracked or poorly gripping collet should be inspected and replaced when necessary. Clean the clamping surfaces and inspect the nut and associated parts. Do not use improvised sleeves to fit a different shank diameter.

Spindle lift and height adjustment

Cutting height is set through the machine's adjustment mechanism. With use, a crank, shaft, screw, guide or locking component can develop play or become difficult to move.

If adjustment becomes stiff, do not force the control. First check for dust and debris, loose fasteners, misalignment or damaged mechanical parts. Excessive force can break a handle or adjustment component without correcting the original problem.

Routing fence, hold-downs and mitre guide

The fence positions the workpiece during routing. Horizontal and vertical hold-downs help keep the work against the table and fence, while the mitre guide supports certain guided angled operations.

Handles, screws, locking devices, profiles, supports and hold-down parts can wear or suffer impact damage. Identify the exact area and compare dimensions before ordering; a visually similar fence component is not automatically interchangeable.

Table, extensions and table inserts

The table is the machine's reference surface. Extensions provide additional support for longer workpieces, while inserts around the table opening adapt the working aperture for particular setups. These parts must sit and fasten correctly.

When replacing a table-related part, extension or insert, compare dimensions, holes and mounting points. Even a small dimensional difference can prevent correct assembly or leave an uneven working surface.

Guarding and dust extraction

The transparent guard and other protective components help protect the operator around the cutter. The extraction outlet allows connection to a suitable dust collection system to remove part of the chips and dust produced during routing.

Replace damaged or missing guards rather than bypassing them. Also inspect extraction connections and passages; heavy chip accumulation around the cutter can interfere with operation and cooling. Always use the guarding specified for the machine.

Diagnosing a Leman router table that will not start

If the LOTDE040 will not start, begin with basic checks before replacing the motor. Inspect the socket and supply, switch, visible cable condition and carbon brushes. Intermittent running can sometimes be associated with heavily worn brushes or poor electrical contact.

The speed controller or another electrical component may also be involved. Electrical testing requires appropriate knowledge and equipment. Disconnect the machine before dismantling.

Vibration, noise and loss of routing accuracy

Unusual vibration does not automatically originate in the motor. First inspect the router bit, shank, collet, clamping and accessible mechanical components. A damaged or incorrectly installed cutter can create significant imbalance at high speed.

If abnormal noise remains with no cutter installed, deeper inspection of the motor, bearings or mechanism may be necessary. Do not operate the machine with excessive play or vibration.

IMPORTANT: check compatibility before purchase

IMPORTANT: BEFORE PURCHASING, carefully check the list of compatible machines shown on each Probois Machinoutils – SEO pièces défonceuse sur table Leman Page 5 product page.

For some parts, the model name alone may not guarantee compatibility. Production changes can result in different components being used on machines carrying the same designation.

If unsure, provide the exact model, month and year of manufacture and serial number. Whenever possible also provide the exploded-diagram item number, clear photographs, dimensions and all markings on the original part.

Identify the correct LOTDE040 part from the exploded diagram

The exploded diagram is one of the most reliable ways to identify a spare part. Leman documentation associates the LOTDE040 spare-parts reference with the relevant exploded-view position number. This helps distinguish components that look similar but differ in dimensions or function.

If the required part is not currently listed online, send the machine rating plate, diagram item number and several photographs. For mechanical parts include useful measurements; for electrical parts also photograph markings and connections.

Maintain and repair your Leman router table

Routine maintenance helps preserve safe and accurate operation. With the machine disconnected, remove accumulated chips and dust, inspect collets, guards, fences and fasteners, and monitor carbon-brush wear. Use sharp router bits suitable for the specified collet diameter.

Probois Machinoutils develops an evolving range of Leman LOTDE040 router table spare parts. Available references can change over time, so accurate identification of the machine and original component remains the best route to the correct replacement and a durable repair.
