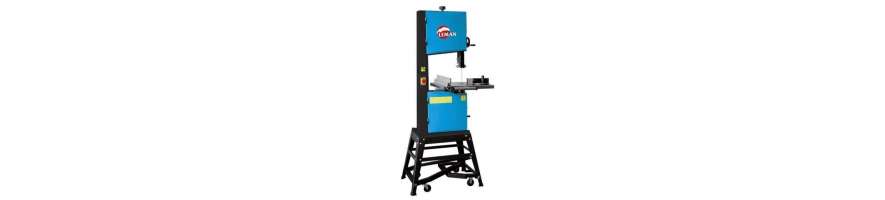

Spare Parts for Leman Band Saw

Find our selection of spare parts for Leman band saws, designed for the maintenance, repair and refurbishment of your woodworking machine.

This category includes replacement parts for Leman LOSRU250, SRU355, SRU356 and SRU470 band saws.

Blade guides, guide bearings, wheel tyres, drive belts, switches, capacitors, table inserts, adjustment parts and other mechanical components can be replaced to extend the working life of your band saw.

A properly maintained band saw should allow the blade to run smoothly on the wheels with accurate guidance and without abnormal vibration. The condition and adjustment of the various machine components therefore play an important role in cutting accuracy and blade life.

Spare parts for Leman LOSRU250 band saws

The Leman LOSRU250 is a compact band saw designed for general woodworking and cutting applications.

We offer replacement parts and consumables suitable for this machine, including 1712 mm band saw blades, available in different widths depending on the type of cut required.

A narrow blade makes curved cutting easier, while a wider blade generally provides greater stability for straight cuts and ripping.

In addition to the blade itself, the blade guides, wheels and adjustment mechanisms should be inspected regularly.

Spare parts for Leman SRU355 band saws

Find spare parts for the Leman SRU355 band saw to help maintain or repair your machine.

Over time, blade guidance, drive and adjustment components may wear and cause a loss of cutting accuracy.

A blade that wanders during cutting does not necessarily mean that the blade itself is defective. Incorrectly adjusted or worn blade guides, damaged bearings, worn wheel tyres or incorrect blade tension can also cause irregular cutting.

The complete blade guidance system should therefore be checked before determining the cause of poor cutting performance.

Spare parts for Leman SRU356 band saws

The Leman SRU356 also has its own range of replacement parts.

Depending on the component required, it is important to identify the exact version of the machine, as production changes may have occurred.

Blade guidance components, drive parts, adjustment mechanisms and electrical controls should be accurately identified before ordering.

Whenever an exploded parts diagram is available, use the position number of the required component to help identify the correct replacement part.

Spare parts for Leman SRU470 band saws

The Leman SRU470 is a larger band saw suitable for ripping, straight cutting and woodworking applications requiring a greater cutting capacity.

Different spare parts can be used for its maintenance and repair, including wheel tyres, electrical components, blade guide parts, bearings, drive belts and other mechanical components.

Some replacement parts may also be used on machines of similar design. However, the compatibility information given on each product page should always be checked before purchasing.

Blade guides for Leman band saws

Blade guides are among the most important components of a band saw.

They support and guide the blade during cutting while limiting unwanted lateral movement.

Depending on the design of the machine, the blade guide assembly may include:

  • side guide bearings;

  • rear thrust bearings;

  • guide rollers;

  • guide supports;

  • shafts or pins;

  • adjustment screws;

  • an upper blade guide;

  • a lower blade guide.

A worn or incorrectly adjusted blade guide can cause irregular cutting, blade drift or vibration.

Before replacing a blade because it is no longer cutting correctly, it is therefore important to inspect the condition and adjustment of the guides.

Guide bearings and rollers

Guide bearings and rollers are subjected to repeated loads while the machine is operating.

A worn bearing may develop excessive play, become noisy or stop rotating smoothly.

This can result in poor blade support and directly affect cutting quality.

When checking a guide bearing, also inspect its shaft, mounting bracket and adjustment mechanism.

Replacing only the bearing may not solve the problem if another component in the guide assembly is worn or damaged.

Wheel tyres for Leman band saws

The wheel tyres provide the contact surface between the band saw blade and the wheels.

They should have a regular surface and be correctly positioned on the wheel.

Over time, a wheel tyre may:

  • harden;

  • crack;

  • come loose;

  • become distorted;

  • wear unevenly.

A damaged tyre can affect blade tracking and cause vibration or poor blade stability on the wheels.

Replacing worn wheel tyres restores a suitable running surface for the blade.

When ordering, always check the wheel diameter and exact model of your Leman band saw.

Drive belts for Leman band saws

On machines equipped with a belt drive, the drive belt transfers power from the motor to the drive wheel.

A worn, loose or damaged belt can cause:

  • loss of power transmission;

  • slipping;

  • vibration;

  • unusual noise;

  • irregular blade movement.

Before ordering a replacement belt, check its profile, length and width as well as the exact model of your band saw.

A belt that looks similar to the original is not necessarily compatible.

Table inserts for band saws

The table insert, sometimes called a throat plate, is fitted around the blade in the band saw table.

This small component may become damaged by the blade, crack or be lost during maintenance work.

A damaged table insert can leave an excessive opening around the blade.

We offer table inserts suitable for different Leman band saw models depending on compatibility.

Always check the shape and dimensions of the original component before ordering a replacement.

Switches and electrical components

Switches, capacitors and other electrical components may also need replacing during the working life of a band saw.

A faulty switch can prevent the machine from starting or cause unexpected shutdowns.

On some single-phase motors, a faulty capacitor can cause starting difficulties or abnormal motor operation.

Before replacing an electrical component, always check its specifications:

  • voltage;

  • current rating;

  • capacitance for a capacitor;

  • number and type of connections;

  • dimensions;

  • mounting arrangement;

  • original part number.

Two components with a similar external appearance are not necessarily interchangeable.

Electrical work must always be carried out with the machine disconnected from the power supply and, where necessary, by a suitably qualified person.

Band saw blades for Leman machines

The band saw blade is an essential consumable and must be selected according to both the machine and the work to be carried out.

Three characteristics are particularly important:

  • blade length;

  • blade width;

  • blade thickness.

The tooth pitch should then be selected according to the material and type of cut.

A narrow blade is generally preferred for curved cuts, while a wider blade offers greater stability for straight cuts and ripping.

However, the maximum blade width specified for the machine must never be exceeded.

An irregular cut is not always caused by the blade

When a band saw starts cutting out of line or produces an irregular cut, replacing the blade is often the first solution considered.

However, the problem may be caused by other components or adjustments on the machine.

Check in particular:

  • blade tension;

  • upper and lower blade guide adjustment;

  • condition of the guide bearings or rollers;

  • condition of the wheel tyres;

  • wheel alignment and blade tracking;

  • rip fence adjustment;

  • general condition of the drive system.

A machine that has been used intensively may have worn guides or bearings that prevent accurate blade guidance even when a new blade is fitted.

If the band saw vibrates or continues to cut irregularly after a blade replacement, the machine itself should therefore be inspected before assuming that the replacement blade is faulty.

Maintaining your Leman band saw

Regular maintenance helps preserve the performance and accuracy of your Leman band saw.

It is advisable to:

  • regularly remove sawdust and wood chips;

  • inspect the condition of the blade;

  • check blade tension;

  • inspect and adjust the blade guides;

  • check the guide bearings;

  • inspect the wheel tyres;

  • check the drive belt where fitted;

  • check the operation of safety devices;

  • keep adjustment mechanisms clean;

  • use suitable dust extraction.

After replacing a band saw blade, its position and tracking on the wheels should also be checked before adjusting the upper and lower blade guides.

Identifying the correct Leman spare part

Before ordering a spare part for a Leman band saw, accurately identify your machine model: LOSRU250, SRU355, SRU356, SRU470, or another compatible model stated on the product page.

When an exploded parts diagram is available, locate the position number of the required component.

Also compare:

  • shape;

  • dimensions;

  • mounting holes;

  • mounting arrangement;

  • any part number marked on the component;

  • electrical specifications where applicable.

The same band saw model may have undergone modifications during its production period.

IMPORTANT: check compatibility before purchasing

IMPORTANT: BEFORE PURCHASING, ALWAYS CHECK THE LIST OF COMPATIBLE MACHINES.

Do not order a replacement part simply because it looks similar to the component fitted to your machine.

Depending on the production date, some Leman band saws may have been fitted with different components.

If there is any doubt, provide the exact model, month and year of manufacture and serial number of your machine.

If you have the exploded parts diagram, also provide the position number of the required component.

This information helps identify the correct replacement part and reduces the risk of ordering an incompatible component.

Repair your Leman band saw

Blade guides, guide bearings, rollers, wheel tyres, drive belts, table inserts, switches, capacitors and other components: find the spare parts for Leman LOSRU250, SRU355, SRU356 and SRU470 band saws required to maintain and repair your machine.

A properly maintained band saw provides more consistent blade guidance, reduces unwanted vibration and helps maintain accurate cutting performance.

Replacing worn or damaged components can significantly extend the working life of your Leman band saw without having to replace the complete machine.
