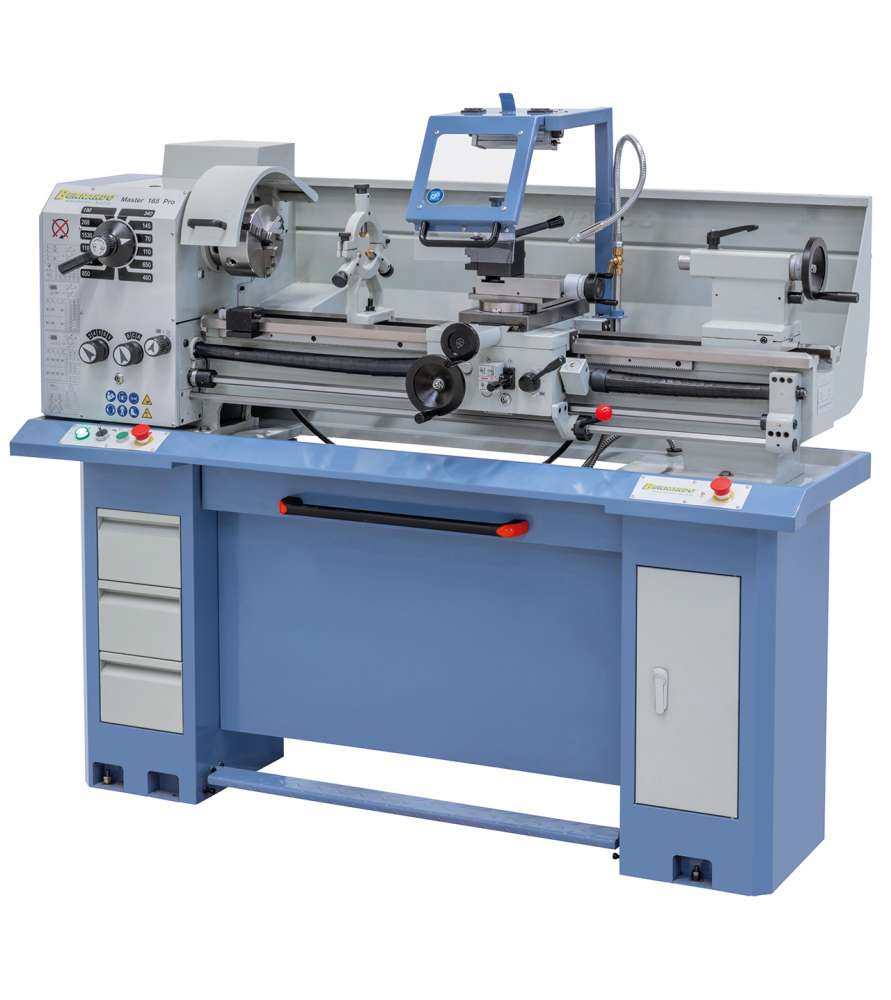

Advantages of the Bernardo Master 165 Pro metal lathe :

• Solid prism-shaped machine bed features additional reinforcements to keep vibrations to a minimum
• 38 mm spindle bore to machine large shaft diameters comes standard
• Ideal for processing of steel, non-ferrous materials and plastics
• Chip tray extracts to front, keeping space requirements to a minimum

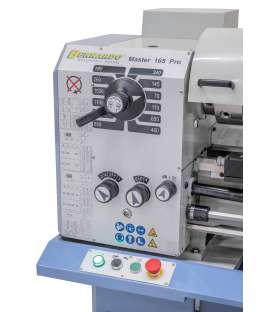

• Clear arranged speed and feed control settings, smooth operation and accurate control
• Electro-magnetic foot brake reduces downtime
• State-of-the-art spindle bedding with high-quality, angular ball bearings
• Grey cast-iron machine bed, inductive hardened and polished
• High spindle concentricity (≤ 0,015 mm)
• Hardened and polished spindle runs in oil bath
• Tailstock, spindle stock and all guides are adjustable
• Tailstock can be adjusted ± 5 mm for taper turning

The Bernardo Master 165 Pro metal lathe is supplied with :

• 3-jaw chuck K11-160 mm / D4

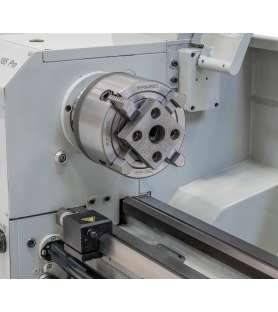

• Independent chuck 160 mm / D4, nach DIN 55029

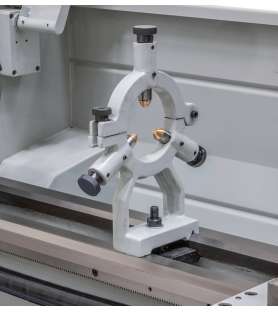

• Steady rest - Passage up to 45 mm
• Follow rest - Passage up to max. 40 mm
• Coolant device
• Extractable chip tray
• Face plate 240 mm

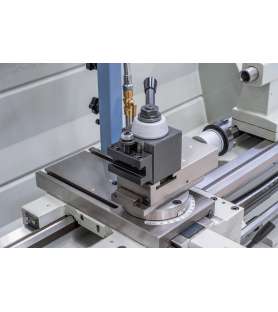

• Quick change tool post and holder set with 4 inserts
• Protective device at tool holder
• Safety clutch
• Micrometer longitudinal fence
• Thread dial
• LED machine light
• Morse taper drill sleeve

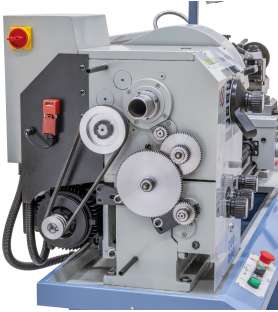

• Change gears
• 2 dead centers
• Foot pedal with brake function according to CE
• Stand with drawers
• Tools

Technical specifications of the Bernardo Master 165 Pro - 400V metal lathe :

• Distance between centers : 830 mm
• Center height : 165 mm
• Swing over bed : 330 mm
• Swing over cross slide : 205 mm
• Bed width : 195 mm
• Spindle bore : 38 mm
• Spindle nose fixture : DIN 55029, D1-4
• Speed range : (12) 70 - 2000 rpm
• Longitudinal feed : (15) 0,05 - 0,5 mm/rev.
• Cross feed : (15) 0,02 - 0,2 mm/rev.
• Metric thread : (18) 0,25 - 5,0 mm
• Inch thread : (13) 6 - 96 threads/1“
• Diameter of tailstock sleeve : 32 mm
• Travel of tailstock sleeve : 90 mm
• Taper of tailstock sleeve : MT 3
• Motor power output S1 100% : 1,5 kW (400 V)
• Motor power input S6 40% : 2,2 kW (400 V)
• Machine dimension (W x D x H) : 1750 x 720 x 1530 mm
• Weight approx. : 430 kg
