Holzmann SHT150XF scissor lift table trolley is the essential handling tool in a workshop to transport and level your loads!
The Holzmann SHT300XF scissor lift table trolley is the essential tool in a workshop to transport and level your loads!
Holzmann SHT350XXF double scissor lift table trolley ideal for transporting and leveling your loads in the workshop!
Robust and easy to use Holzmann SHT310 scissor lift table trolley, equipped with large diameter wheels and hydraulic pump.
Holzmann SHT310PAR panel swivel device designed for the Holzmann SHT310 lift table trolley.
A hydraulic lift table trolley is a practical piece of material handling equipment designed to lift, transport and position heavy loads at a suitable working height. Commonly used in woodworking workshops, automotive garages, mechanical workshops and industrial environments, it makes handling operations easier while helping to reduce physical strain.
Thanks to its loading platform and hydraulic lifting mechanism, a mobile lifting table provides a versatile solution for moving mechanical components, handling machinery parts and organising assembly or maintenance operations.
At Probois Machinoutils, we offer a selection of Holzmann hydraulic lift table trolleys designed to meet different lifting and material handling requirements.
Our range includes the Holzmann SHT300XF, Holzmann SHT350XXF and Holzmann SHT310, each featuring a design suited to specific workshop applications.
Whether you are a carpenter, mechanic, maintenance technician or professional tradesperson, a hydraulic lifting trolley can become an essential addition to your workshop equipment.
A hydraulic lift table trolley generally consists of a loading platform, a scissor lifting mechanism, a hydraulic system and a wheeled frame.
The lifting mechanism uses a hydraulic cylinder to raise the platform progressively. On many models, the hydraulic pump is operated using a foot pedal.
As hydraulic pressure increases, the scissor mechanism extends, raising the platform and its load.
Lowering is controlled by a dedicated mechanism, allowing the platform to descend progressively in accordance with the manufacturer's instructions.
The wheels and transport handle make it possible to move the trolley between different workstations, provided the manufacturer's permitted load and platform-height conditions are respected.
Unlike a fixed lifting table, a mobile hydraulic scissor lift table combines two complementary functions: raising a load and transporting it within the workshop.
This versatility makes it particularly useful for businesses that regularly handle heavy, bulky or awkwardly shaped components.
A scissor lift table trolley allows users to adjust the height of a load to make certain tasks easier.
In a workshop, components often need to be lifted from floor level, positioned on a workbench or brought closer to a machine.
These operations can be difficult when the items are heavy, bulky or awkward to handle manually.
Using a hydraulic lifting table trolley helps reduce manual lifting and certain uncomfortable working positions.
It is particularly useful for assembly, preparation, maintenance and transferring components between different work surfaces.
The lifting platform may also serve as temporary support during certain operations, provided the load is correctly stabilised and the intended use is permitted by the manufacturer.
By allowing users to adjust the working height, a hydraulic lift table can contribute to improved ergonomics and more comfortable handling operations.
However, it remains essential to respect the maximum rated load capacity, load distribution requirements and operating conditions specified for each model.
In a woodworking workshop, a hydraulic material handling trolley can make many everyday tasks easier.
It can be used to move heavy machinery components, transport substantial workpieces or position equipment near a workbench.
When assembling or maintaining a planer thicknesser, bandsaw, spindle moulder or other woodworking machine, certain components may be difficult to handle manually.
A suitable hydraulic lift table trolley can help support and position these parts during assembly or maintenance, provided the equipment's rated capacity and stability requirements are respected.
It may also be used to bring solid wood components or assembled parts closer to a workstation.
In workshops where loading, unloading and transferring heavy components are frequent operations, a mobile lift table for woodworking can provide valuable assistance.
It can help reduce unnecessary handling and improve the organisation of different manufacturing stages.
For woodworking professionals working alone, this type of equipment can be especially useful when moving suitable loads between machines and workbenches.
A hydraulic lift table trolley for garages is also particularly useful in mechanical workshops and automotive repair environments.
It can help transport heavy mechanical parts, position certain components and facilitate dismantling or reassembly operations.
In a general mechanical workshop, it may be used to handle engines, metal assemblies and machinery components compatible with its rated load capacity.
During maintenance work, the adjustable platform height makes it easier to bring the load closer to the area where the operation is being performed.
A hydraulic lifting table for mechanical workshops can therefore complement other material handling equipment, such as electric hoists, hydraulic jacks and transport trolleys.
However, it does not replace lifting equipment specifically designed to support vehicles or suspended loads.
The selection of a suitable trolley must always take into account the actual weight, dimensions and centre of gravity of the components being handled.
Hydraulic lift table trolleys may feature either a single scissor or a double scissor lifting mechanism.
A single scissor lift table uses an articulated scissor mechanism that raises the platform to a height determined by its design.
This configuration is suitable for many everyday material handling operations and tasks requiring loads to be positioned at a convenient working height.
A double scissor lift table features multiple scissor assemblies arranged vertically.
This design generally allows the platform to reach a greater lifting height while maintaining relatively compact overall dimensions.
It can be particularly useful when loads need to be positioned at higher working levels.
However, maximum lifting height should not be the only selection criterion.
It is also important to compare maximum load capacity, platform dimensions, minimum height, stability and permitted movement conditions.
Choosing between a single scissor and double scissor lifting trolley therefore depends on the intended applications and the technical specifications of each model.
At Probois Machinoutils, you can discover several models of Holzmann hydraulic lift table trolleys.
The Holzmann SHT300XF is a single scissor lift table trolley designed for material handling and raising loads to a suitable working height. Its hydraulic lifting mechanism makes it practical for various workshop applications.

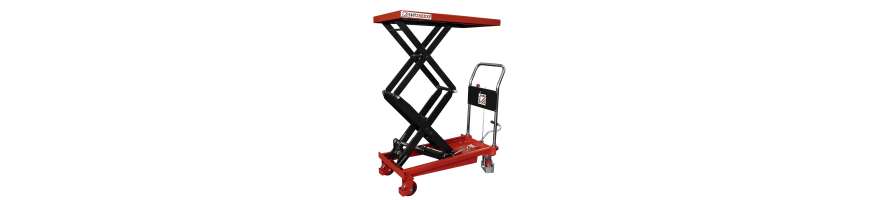

The Holzmann SHT350XXF features a double scissor lifting mechanism, making it particularly interesting for users who require a greater lifting height.
The Holzmann SHT310 is a robust hydraulic scissor lift table trolley featuring a large working platform, large-diameter wheels and a hydraulic lifting system.
These models can meet different requirements in woodworking workshops, garages, maintenance departments and industrial environments.
To select the most suitable equipment, we recommend consulting the individual product descriptions and comparing the technical specifications.
Maximum load capacity, platform dimensions and minimum and maximum lifting heights are among the most important criteria.
Before purchasing a hydraulic lift table trolley, several factors should be considered.
The first is the maximum load capacity. The trolley must be suitable for the weight of the objects being handled, without ever exceeding the manufacturer's rated capacity.
Platform dimensions are equally important. The loading surface must allow the load to be positioned correctly while maintaining stable weight distribution.
The minimum platform height determines how low the platform can be positioned when collecting or transferring a load.
The maximum lifting height must correspond to the workstations and handling operations for which the trolley will be used.
It is also advisable to check wheel dimensions, parking brakes, the transport handle and the manufacturer's requirements concerning different floor surfaces.
For frequent use, the ergonomics of the hydraulic foot pedal and the ease of controlling platform descent can influence operating comfort.
Finally, the overall dimensions of the trolley should be considered to ensure that it can move easily between machines, workbenches and other workshop equipment.
Using a hydraulic scissor lift table trolley requires appropriate safety precautions.
Before each operation, the general condition of the trolley should be checked, including the hydraulic system, wheels, platform and scissor lifting mechanism.
The load must be correctly positioned and stabilised on the platform in accordance with the manufacturer's instructions.
Never exceed the maximum rated load capacity or use a lifting table trolley to raise people.
During lifting and lowering operations, hands and feet must remain clear of the scissor mechanism and other potential pinch points.
The trolley must only be moved under the conditions specified by the manufacturer, particularly regarding platform height, load stability and floor conditions.
A flat, stable surface with sufficient load-bearing capacity is generally recommended.
The trolley must not be used as a permanent support for operations requiring dedicated load-supporting equipment.
Regular maintenance, including the inspections recommended by the manufacturer, helps preserve the correct operation of the hydraulic system and moving components.
As a specialist in woodworking and metalworking machinery, Probois Machinoutils offers a selection of Holzmann hydraulic lift table trolleys designed for workshop material handling applications.
Whether you are looking for a hydraulic scissor lift table, a mobile lifting platform or a double scissor lift table trolley, our range includes equipment designed to make lifting and positioning heavy loads easier.
The Holzmann SHT300XF, SHT350XXF and SHT310 are suitable for a variety of material handling applications in woodworking workshops, garages and maintenance environments.
Consult the technical specifications of each model to choose the hydraulic lift table trolley best suited to your requirements, the loads you need to handle and your working environment.
With Probois Machinoutils, equip your workshop with a practical lifting and handling solution to simplify material transport, improve ergonomics and optimise the organisation of your workstations.
