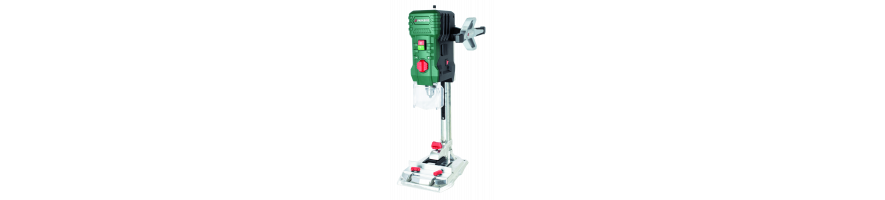

Parkside Drill Press Spare Parts: Repair and Maintain Your Machine

Are you looking for a spare part for your Parkside drill press to repair a malfunction, replace a worn component or extend the service life of your machine? At Probois Machinoutils, we offer a selection of replacement parts for compatible Parkside drill presses, particularly the Parkside PTBMOD 710 A1 and PTBMOD 710 B2.

A drill press, also known as a bench drill or pillar drill, is a useful workshop machine designed for drilling operations that require stability, accuracy and repeatability. It is commonly used in woodworking, metalworking and DIY workshops to drill holes in various materials using suitable drill bits.

Over time, certain mechanical and electrical components may wear out or develop faults. A defective switch, worn carbon brushes, damaged electronic speed controller or faulty drill chuck can prevent the machine from operating correctly.

Our category includes various Parkside drill press spare parts, such as drill chucks, carbon brushes, on/off switches, electronic speed controllers, capacitors, speed sensors, motor armatures, stators and drive gears.

These components can make it possible to repair your drill press instead of replacing the entire machine, provided that the nature of the fault and the overall condition of the equipment allow a suitable repair.

Spare Parts for Parkside PTBMOD 710 A1 and PTBMOD 710 B2 Drill Presses

The Parkside PTBMOD 710 A1 and PTBMOD 710 B2 are among the drill press models for which we offer several replacement components.

These machines incorporate mechanical and electronic components that control motor operation, transmit rotational movement and allow the spindle speed to be adjusted.

Certain components may also be suitable for compatible Scheppach drill presses, particularly the Scheppach DP60 and DP60SE, depending on the manufacturer's references indicated in the individual product descriptions.

This compatibility between selected Parkside and Scheppach machines can make finding replacement parts easier. However, it does not mean that all components used in these different drill presses are interchangeable.

It is particularly important to distinguish between the A1 and B2 versions, especially when purchasing electronic speed controllers, as the correct references may vary according to the model.

Before ordering, we recommend checking your drill press's exact model designation, identification details and, when necessary, the position number of the required component in the exploded parts diagram.

Drill Chuck for Parkside Drill Press: Secure Drill Bit Holding

The drill chuck for a Parkside drill press is an essential part of the drilling system. It holds the drill bit during rotation and transmits the movement required to drill into the material.

A drill chuck in good condition helps ensure reliable tool clamping and reduces the risk of the drill bit slipping during operation.

Over time, the chuck jaws may become worn, jammed or unable to provide sufficient clamping force.

A defective drill chuck may cause several problems:

• Difficulty tightening or releasing a drill bit.
• Insufficient tool holding during drilling.
• Uneven movement of the chuck jaws.
• Excessive vibration or abnormal runout.
• Jamming of the clamping mechanism.

Our catalogue includes a 1.5–13 mm drill chuck with B16 taper mounting, reference 3906814001, intended for certain compatible Scheppach and Parkside drill presses.

Before purchasing a replacement chuck, it is essential to check its clamping capacity and the mounting system used by your machine.

The B16 designation refers to a specific taper mounting. A chuck with the same clamping capacity but a different mounting system may not fit your drill press.

Carbon Brushes for Parkside and Scheppach Drill Presses

Carbon brushes for Parkside drill presses are wear components used in certain electric motors equipped with a brushed motor system.

They provide electrical contact with the rotor commutator and allow the motor to operate correctly.

As the machine is used, the carbon brushes gradually wear down. When they become too short or damaged, the drill press may begin to operate irregularly.

Worn carbon brushes can cause several symptoms:

• Difficulty starting the drill press.
• Intermittent motor operation.
• Irregular running.
• An apparent loss of motor power.
• Unusual sparking around the commutator.

However, these symptoms can also have other causes. It is therefore important to inspect the motor before concluding that the carbon brushes need replacing.

We offer a set of carbon brushes for selected Scheppach and Parkside drill presses.

Before replacing these components, check their reference, dimensions and compatibility with your machine's motor.

Electronic Speed Controller for Parkside Drill Press

The electronic speed controller for a Parkside drill press is an important component in machines equipped with electronic speed adjustment.

It contributes to motor control and allows the rotational speed to be adjusted according to the settings provided by the manufacturer.

This feature is particularly useful for adapting drilling speed to the drill bit diameter and the material being worked, within the operating limits of the machine.

A defective speed controller may cause various malfunctions, including an inability to adjust the speed, irregular motor operation or failure to start.

However, these symptoms may also originate from other electrical or electronic components. A proper diagnosis is therefore necessary before replacing the speed controller.

We offer several electronic speed controller references for Parkside drill presses:

• Electronic speed controller reference 3906814006 for Parkside PTBMOD 710 A1 drill press.
• Electronic speed controller reference 3906816002 for Parkside PTBMOD 710 B2 drill press.
• Electronic speed controller reference 5906812010 for certain compatible Scheppach DP60, DP60SE and Parkside PTBM710A1 drill presses.

These references correspond to different applications and must not be considered automatically interchangeable.

Before ordering, always check the exact model of your drill press and the reference of the original component.

Work on electronic circuit boards and speed controllers must be carried out by a person with the necessary technical skills, following the manufacturer's safety instructions.

On/Off Switch for Parkside Drill Press

The on/off switch for a Parkside drill press controls the starting and stopping of the electric motor.

It is an important component of the machine's electrical control system.

Over time, the internal electrical contacts or mechanical operating elements of the switch may wear out or deteriorate.

A defective switch may prevent the drill press from starting or cause intermittent operation.

Our catalogue includes an on/off switch for certain Scheppach and Parkside drill presses and wood lathes.

Compatibility must be checked against the list of suitable machines and the manufacturer's part reference.

Before replacing the switch, it is important to ensure that the fault does not originate from the power cable, motor, electronic speed controller or another electrical component.

Replacing an electrical switch requires the original wiring arrangement and electrical specifications to be respected.

Speed Sensor for Parkside Drill Press

The speed sensor for a Parkside drill press forms part of the rotational speed measurement system on models equipped with this technology.

It provides the electronic control system with information about the rotation of a machine component.

A defective speed sensor may cause measurement or speed regulation problems, depending on the design of the electronic system.

We offer the speed sensor reference 5906812027, intended for selected compatible Scheppach and Parkside drill presses.

Before replacing this component, it is advisable to check its positioning, electrical connections and compatibility with your drill press.

A speed display or regulation problem does not necessarily mean that the sensor is defective. The fault may also originate from the electronic speed controller or another component.

Capacitor for Parkside and Scheppach Drill Presses

The capacitor for a Parkside drill press is an electrical component whose function depends on the circuit in which it is installed.

Our catalogue includes a 0.1 µF capacitor intended for certain compatible Scheppach and Parkside drill presses.

It is important not to confuse this type of capacitor with a motor starting capacitor or running capacitor, which may have different specifications and applications.

Before purchasing a replacement capacitor, always check its capacitance, rated voltage, type and original manufacturer reference.

Using an unsuitable capacitor may interfere with the operation of the electrical circuit and create a safety risk.

Electrical component replacement must only be performed by qualified individuals after the machine has been completely disconnected from the power supply and any residual electrical voltage has been safely addressed.

Motor Armature and Stator for Parkside Drill Press

The electric motor of a drill press contains several essential components, including the rotor, also known as the armature, and the stator.

These components work together through electromagnetic interaction to generate the rotational movement required for drilling.

The rotor is the rotating part of the motor, while the stator is the stationary part.

A failure affecting either component may cause several problems:

• The motor fails to start.
• A significant loss of power.
• Unusual operating noises.
• Abnormal overheating.
• Irregular running or unexpected shutdowns.

These symptoms may also be caused by other components. A proper diagnosis is therefore essential before replacing the armature or stator.

We offer a motor armature for selected Scheppach and Parkside drill presses, as well as a stator for certain compatible machines.

Replacing these components generally requires partial disassembly of the electric motor and should only be undertaken with the appropriate knowledge and tools.

Drive Gear for Parkside Drill Press

The drive gear for a Parkside drill press is a mechanical component that contributes to transmitting movement in machines equipped with this type of mechanism.

A gear may gradually wear out or become damaged following a blockage, excessive force or another mechanical problem.

Depending on its position and function, a damaged gear may cause unusual noises, difficulties transmitting movement or jamming of the affected mechanism.

Our catalogue includes the drive gear reference 5906822016, intended for certain compatible Scheppach and Parkside drill presses.

Before ordering, check the exact reference of the component and the list of compatible machines.

It is also advisable to inspect the condition of the associated mechanical components to determine whether the gear damage is the result of a more significant underlying problem.

How to Identify the Correct Spare Part for Your Parkside Drill Press

To purchase a compatible spare part for your Parkside drill press, it is essential to check the information displayed on the machine's identification plate.

The Parkside brand name alone is not enough to guarantee compatibility. Different versions of the same drill press may use different components.

Before ordering, we recommend checking the following details:

• The complete model reference of your drill press.
• The exact version, particularly PTBMOD 710 A1 or PTBMOD 710 B2.
• The serial number or manufacturing information, when required.
• The manufacturer's reference for the required replacement part.
• The position number shown in the exploded parts diagram.
• The electrical or mechanical specifications of the component.

A visual comparison may help identify a part, but it does not always guarantee compatibility.

Two electronic speed controllers or switches may look similar while having different technical specifications.

It is therefore preferable to rely on manufacturer references and the information provided in the individual product descriptions.

Maintaining Your Parkside Drill Press to Extend Its Service Life

Regular maintenance helps preserve the accuracy, reliability and service life of a Parkside drill press.

After each use, it is advisable to remove drilling chips and debris from the table and surrounding machine areas, following the manufacturer's instructions.

It is also important to inspect the condition of the drill chuck, spindle feed mechanism and protective devices regularly.

On machines equipped with electronic speed control, ventilation openings should be kept clear to help prevent overheating of the electrical components.

Unusual vibrations, abnormal mechanical noises or unexpected speed variations should prompt you to stop using the drill press and investigate the cause before restarting it.

During drilling operations, the workpiece must be securely held using a suitable machine vice or clamping system.

Safety glasses are essential. Loose clothing, jewellery and unsecured long hair must be kept away from rotating components. Gloves should not be worn near rotating drill bits because of the risk of entanglement.

Before carrying out any maintenance or replacing a component, completely disconnect the drill press from its electrical power supply.

Buy Parkside Drill Press Spare Parts at Probois Machinoutils

At Probois Machinoutils, we offer a selection of spare parts for a wide range of DIY, woodworking and metalworking machines.

Our catalogue includes replacement components for selected Parkside and Scheppach drill presses, helping users carry out various repair and maintenance operations.

In this category dedicated to Parkside drill press spare parts, you can find available components for compatible models, particularly the Parkside PTBMOD 710 A1 and PTBMOD 710 B2.

Whether you need a B16 drill chuck, carbon brushes, an on/off switch, an electronic speed controller, a capacitor, a speed sensor, a motor armature, a stator or a drive gear, check the individual product descriptions to confirm compatibility with your machine.

Replacing a worn or defective component can help extend the service life of your drill press and avoid purchasing a new machine when a repair is technically possible and economically worthwhile.

Discover Parkside drill press spare parts at Probois Machinoutils and maintain your machine with suitable replacement components for drilling operations on wood, metal and other compatible materials.
