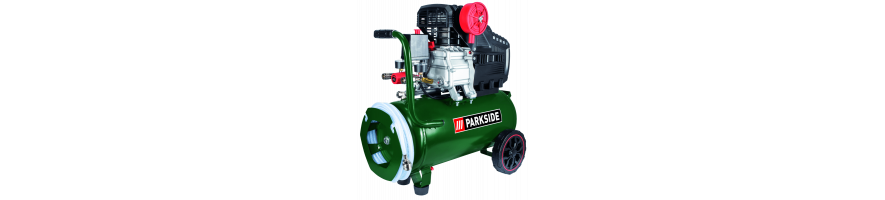

Parkside PKO 24 A1 Air Compressor Spare Parts: Repair and Maintain Your Compressor

Are you looking for a spare part for your Parkside PKO 24 A1 air compressor to repair your machine, replace a worn component or solve an operating problem? At Probois Machinoutils, we offer a selection of replacement parts specifically listed for the Parkside PKO24A1 air compressor.

This air compressor is designed for various DIY and maintenance applications requiring compressed air, within the limits of its technical specifications. It can be used with suitable pneumatic accessories for tyre inflation, blowing and certain workshop operations.

Like any mechanical equipment that produces compressed air, the Parkside PKO 24 A1 compressor contains several components exposed to vibration, pressure variations, heat and normal wear.

Over time, certain parts may require maintenance or replacement to preserve the machine's performance and ensure reliable operation.

Our catalogue includes Parkside compressor gaskets, piston rings, pressure gauges, pressure regulation components, valves, oil plugs, drain screws and various mechanical replacement parts.

These components may help repair many common compressor faults, provided that the cause of the problem is correctly identified and the compatibility of the selected part is confirmed.

Parkside PKO 24 A1 Air Compressor: Identify Your Exact Machine Model

The Parkside PKO 24 A1 belongs to the range of air compressors marketed under the Parkside brand. It is important to distinguish this reference from other models, including the PKO 24 B2, PSKO 24 A1 and the different PKO 270 versions.

Although some Parkside compressors may share similar components, their spare parts are not necessarily interchangeable.

Differences may concern gasket dimensions, pressure switch specifications, pneumatic connections, mounting arrangements or components of the compression unit.

Before ordering a replacement part for Parkside PKO24A1, we recommend checking the complete model reference shown on your compressor's identification plate.

The IAN number, serial number and manufacturing date may also help identify a particular production version.

If you have access to the machine's exploded parts diagram, the position number of the required component can provide additional information to help avoid ordering errors.

Pressure Gauge for Parkside PKO 24 A1 Air Compressor

The compressor pressure gauge displays the air pressure in the circuit to which it is connected. It plays an important role in monitoring equipment operation and using pneumatic accessories.

A damaged pressure gauge may have a stuck needle, display an incorrect reading, have a damaged dial or develop an air leak around its connection.

Our catalogue includes a 42 mm pressure gauge with G 1/8" threaded connection, reference 5906102003, listed for various Scheppach and Parkside compressors according to the compatibility information.

Before replacing a pressure gauge, check the dial diameter, thread type, measuring range and connection position.

A faulty pressure gauge should never be replaced with a model whose technical characteristics do not meet the compressor manufacturer's specifications.

Piston Rings for Parkside Air Compressor

Compressor piston rings help maintain the seal between the piston and cylinder inside the compression unit. They play an essential role in allowing the compressor to build air pressure efficiently.

When piston rings become worn or damaged, compressor performance may decrease. Pressure build-up may become slower, and the machine may need to run for longer to reach the expected pressure.

Our selection includes a set of three piston rings for Parkside compressors, intended for the models specified on the relevant product page.

Replacing these components requires work on the compression unit and should only be carried out using appropriate tools and technical knowledge.

It is also important to inspect the cylinder and piston. Installing new piston rings will not necessarily solve a loss of compression if other internal components are damaged or excessively worn.

Cylinder Head Gasket, Cylinder Gasket and Crankcase Gasket

Gaskets for the Parkside PKO 24 A1 compressor help maintain airtight or oil-tight seals between different sections of the compression unit.

A damaged gasket can cause air leakage, reduced compressor efficiency or, depending on its position, oil seepage.

Our catalogue includes several gasket references listed for different Parkside and Scheppach compressors:

  • Crankcase gasket reference 3906129008, corresponding to position 18 on certain exploded parts diagrams.
  • Cylinder sealing gasket reference 5906115010, replacing the previous reference 5906103010.
  • Cylinder head gasket listed for various Parkside, Scheppach and Zipper compressors.
  • Cylinder head gasket reference 5906103006, intended for the models specified on its product page.

Each gasket has a specific shape, thickness and dimensions. It is therefore essential to select the correct reference for its exact position on your compressor.

During replacement, the mating surfaces should be inspected and the manufacturer's installation instructions followed. An unsuitable or incorrectly positioned gasket may cause further leakage after reassembly.

Pressure Switch for Parkside PKO 24 A1 Compressor

The compressor pressure switch is responsible for automatically controlling the motor according to the air pressure inside the receiver tank.

It allows the compressor to start and stop according to the pressure thresholds specified by the manufacturer.

A faulty pressure switch may cause the compressor to fail to restart, stop unexpectedly or operate irregularly.

However, these symptoms may also have other causes, including electrical faults, pneumatic leaks or motor problems.

Our catalogue includes pressure switch reference 3906129013, listed for various Scheppach, Zipper and Parkside air compressors.

Replacing a pressure switch requires compliance with the machine's electrical specifications, connection arrangements and operating pressure limits.

Pressure settings must never be modified arbitrarily to exceed the compressor's safety limits.

Pressure Regulator for Parkside Air Compressor

The air compressor pressure regulator allows the user to adjust the pressure supplied to a pneumatic accessory, within the limits specified for the compressor and the connected tool.

It is an important component for adapting the outlet pressure to the requirements of different applications.

A defective regulator may cause difficulties adjusting pressure, unstable outlet pressure or air leakage around the regulator assembly.

We offer a pressure regulator for Scheppach, Parkside and Zipper compressors, associated with references 3906126024, 5906101071 and 3906129016, depending on the machine model.

Before ordering, check the connections, dimensions and compatibility information provided on the product page.

The pressure regulator should not be confused with the pressure switch. The regulator adjusts the pressure delivered to the tool, whereas the pressure switch controls the compressor's automatic operation.

Valves and Pneumatic Components for Parkside Compressor

The different pneumatic components inside an air compressor contribute to airflow management and the proper operation of the compression system.

A damaged valve or one that no longer seals correctly can cause operating problems, with symptoms depending on its position and function.

Our catalogue includes valve reference 5906115043, previously identified as 5906103043, listed for several Scheppach, Parkside and Woodster compressors.

To select this component, it is essential to check the original part reference and the compatibility information on the product page.

Different valves inside a compressor must not be confused, as they may perform completely different functions.

In particular, pressure-related safety devices must always retain their original technical characteristics and must never be bypassed, disabled or modified.

Oil Filler Plug and Oil Level Plug for Parkside PKO24A1

The oil plug for Parkside air compressor is one of the components used to close designated openings in the compression unit's crankcase.

Depending on its function, a plug may be used for oil filling, oil level inspection or closing a specific opening.

Our catalogue includes an oil level plug listed for the Parkside PKO 24 A1, PKO 270 A4 and PKO 500 A2 compressors.

We also offer other oil plugs intended for various Scheppach and Parkside compressor models.

A damaged or cracked plug, or one with a defective seal, may cause oil seepage or leakage.

Before replacing this component, check its shape, dimensions, thread type where applicable and sealing arrangement.

Oil level and oil type must always comply with the manufacturer's instructions. An incorrect oil quantity may adversely affect the operation of the compression unit.

Drain Screw for Parkside PKO 24 A1 Compressor

The compressor drain screw allows accumulated condensate to be discharged from the receiver tank in accordance with the manufacturer's maintenance instructions.

During air compression, moisture naturally present in the atmosphere can condense and collect inside the tank.

Regular draining helps limit water accumulation and contributes to preserving the condition of the receiver tank.

Our selection includes drain screw reference 5906101066, also associated with reference 10003185, for various Scheppach, Woodster and Parkside compressors.

A drain screw that no longer seals correctly may cause an air leak and prevent the compressor from maintaining pressure.

Before replacement, the machine must be disconnected from the electrical supply and the receiver tank completely depressurised in accordance with the operating manual.

The replacement screw must have the correct dimensions and thread specifications for the tank.

Rubber Foot and Motor Cover for Parkside Compressor

External compressor components also contribute to the machine's operation, stability and ease of use.

Rubber feet help stabilise the compressor and reduce the transmission of certain vibrations to the supporting surface.

A worn, cracked or missing rubber foot may reduce stability and increase vibrations during operation.

Our catalogue includes rubber foot reference 3906129018, listed for Parkside PKO24A1, PKO24B2, PKO270A4 and PKO500A2 compressors.

We also offer motor cover reference 3906140008, listed for various Scheppach and Parkside compressor models.

The motor cover helps protect certain motor components and must be securely fitted. A damaged or missing protective cover should be replaced with a suitable component before the compressor is used again.

Why Is My Parkside PKO 24 A1 Compressor Not Building Pressure?

A Parkside PKO 24 A1 compressor that no longer builds pressure may have various mechanical or pneumatic problems.

Possible causes include:

  • An air leak around a fitting or gasket.
  • A drain screw that no longer closes correctly.
  • A damaged cylinder head or cylinder gasket.
  • Worn piston rings.
  • A valve that no longer seals correctly.
  • A pressure regulation or control problem.
  • Wear affecting an internal component of the compression unit.

Before replacing a part, it is advisable to identify the exact cause of the malfunction.

A compressor that runs for an unusually long time without reaching its normal pressure does not necessarily have a defective pressure switch. The problem may instead be caused by a loss of compression or an air leak.

Likewise, an abnormal pressure gauge reading does not automatically mean that the actual air pressure is incorrect.

Accurate diagnosis is essential to avoid unnecessary component replacement.

How to Find the Correct Spare Part for Your Parkside PKO24A1 Compressor

Before ordering a spare part compatible with your Parkside PKO 24 A1 air compressor, several checks are recommended.

  • Check the machine model: confirm that the identification plate indicates PKO 24 A1.
  • Record the IAN number: this information may help distinguish specific production versions.
  • Consult the exploded parts diagram: identify the position number of the component you need.
  • Check the original reference: compare the part numbers shown in the documentation or on the component itself.
  • Compare dimensions: particularly for gaskets, plugs, fittings and mechanical parts.
  • Check technical specifications: especially for pressure gauges, pressure switches and pressure regulators.

A visually similar component is not necessarily interchangeable with the original part.

Some components may be shared by several Parkside, Scheppach, Woodster or Zipper compressors, but compatibility must always be checked individually.

Regular Maintenance of Your Parkside PKO 24 A1 Air Compressor

Regular maintenance helps preserve compressor performance and extend the service life of the equipment.

All maintenance operations must follow the manufacturer's recommendations and the safety instructions provided in the operating manual.

Common checks include:

  • Checking the oil level regularly according to the manufacturer's instructions.
  • Draining condensate from the receiver tank at the recommended intervals.
  • Checking accessible pneumatic connections for air leaks.
  • Inspecting the condition of the power cable and switch.
  • Checking the proper operation of the pressure gauges.
  • Keeping ventilation openings clean and unobstructed.
  • Monitoring unusual vibrations or noises.
  • Inspecting the rubber feet and protective covers.
  • Respecting the operating time limits and duty cycle specified by the manufacturer.

Before carrying out any maintenance or repair, disconnect the compressor from the electrical supply, allow it to cool and make sure the relevant pneumatic circuit is completely depressurised.

As the receiver tank is a pressure vessel, it must never be drilled, welded or repaired using improvised methods. Any damage affecting its structural integrity requires appropriate professional assessment.

Safety devices must never be removed, bypassed or disabled.

Why Repair Your Parkside Air Compressor Instead of Replacing It?

When an air compressor develops a fault, purchasing a completely new machine is not always necessary.

If the malfunction is caused by an identifiable and replaceable component, a repair may help extend the equipment's service life.

Replacing a gasket, pressure gauge, oil plug or another suitable component may be a worthwhile solution when the rest of the compressor remains in good condition.

Repairing your compressor can also help reduce waste and limit the expense associated with replacing workshop equipment.

However, the cost of repair, the overall condition of the compressor and safety requirements must always be taken into account.

Work involving the electrical system, compression unit or pressure control components should be carried out by someone with the necessary technical knowledge and skills.

Buy Parkside PKO 24 A1 Compressor Spare Parts at Probois Machinoutils

Probois Machinoutils specialises in the sale of machinery, workshop equipment, accessories and spare parts for numerous brands.

We offer a developing range of spare parts for Parkside PKO 24 A1 air compressors to help you maintain and repair your equipment.

In this category, you can find pressure gauges, piston rings, cylinder head gaskets, cylinder gaskets, crankcase gaskets, pressure switches, pressure regulators, valves, oil plugs, drain screws, rubber feet and motor covers.

Available references may change depending on stock levels and parts availability from manufacturers.

To select the correct component, carefully read each product description and verify its compatibility with your machine.

Whether you are looking for a gasket for Parkside PKO24A1 compressor, a Parkside compressor pressure switch, a replacement pressure gauge or a mechanical component for the compression unit, our catalogue helps you identify suitable references.

By choosing a compatible replacement part and following the manufacturer's maintenance recommendations, you can help preserve the performance of your Parkside PKO 24 A1 air compressor and extend its service life.
