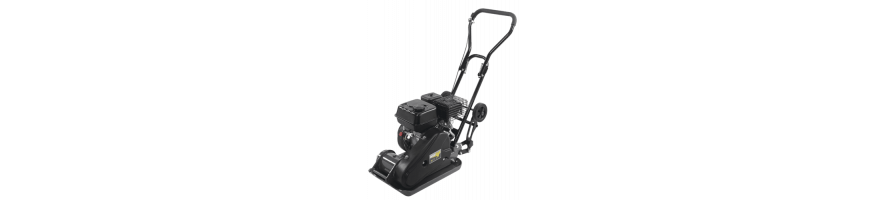

Has your Woodstar or Woodster plate compactor been used for several years to compact sand, gravel and paving stones or to prepare different landscaping projects? A starting problem, worn belt, clogged filter or fuel supply issue does not necessarily mean that the entire machine needs to be replaced.

This category brings together spare parts for Woodstar and Woodster plate compactors, particularly the PC08, PC11 and PC13 models, as well as other machines from the brand depending on parts availability. Many components are also used on certain Scheppach plate compactors, making it possible to continue servicing and repairing older machines.

Depending on the model and availability, you can find carburettors, carburettor gaskets, ignition coils, air filters, fuel filters, fuel tank caps, drive belts, oil seals, recoil starters and spark plug wrenches.

Repair your Woodstar plate compactor instead of replacing it

A petrol plate compactor consists of an engine, a transmission system and a vibration mechanism that are subjected to considerable stresses. Even so, many faults are caused by components that can be replaced individually.

A machine that no longer starts may have an ignition, carburation or fuel supply problem. If the engine runs but compaction appears less effective, the belt and transmission components should be checked. Leaks may also be caused by a worn gasket or oil seal.

Accurately identifying the source of the problem often makes it possible to replace only the faulty part and considerably extend the service life of the plate compactor.

Carburettor and fuel supply

The carburettor prepares the air-fuel mixture required by the petrol engine. Over time, particularly after a long period of storage or when old fuel has remained in the system, deposits can interfere with its operation.

An engine that is difficult to start, stalls, runs unevenly or no longer maintains its speed correctly may have a carburation problem. However, the carburettor is not always responsible: the fuel filter, air filter, fuel lines and other parts of the system should also be checked.

Available parts include a Huayi P18 ZD1ML Ø18 carburettor and its gasket, used on certain Woodstar and Scheppach plate compactors. As always, the part reference and compatibility with your machine should be checked before ordering.

Air filter and fuel filter

The air filter protects the engine against dust and particles drawn in during operation. As a plate compactor generally works in particularly dusty conditions, regular inspection of the filter is important.

A heavily clogged filter can restrict airflow and affect engine operation. Several air filter references are available depending on the machine, including for the Woodster PC08 and other plate compactors that share their engine with Scheppach machines.

The fuel filter traps impurities in the petrol before they reach the carburettor. When clogged, it can restrict the engine's fuel supply. Both filters are therefore among the first components to inspect during servicing or engine troubleshooting.

Ignition coil and engine starting

The ignition coil helps produce the spark required for combustion inside the engine. When the machine refuses to start, the ignition system is one of the areas to check, particularly if the spark plug is not producing a proper spark.

A 168F LZD2012012033 ignition coil is among the parts available for certain Woodstar and Scheppach plate compactors. This type of component may also be fitted to other machines using a similar engine.

Before replacing the coil, however, the spark plug, spark plug cap, electrical connections and other ignition-system components should also be checked to avoid unnecessary replacement.

Recoil starter for Woodstar and Woodster plate compactors

The recoil starter allows the petrol engine to be turned manually for starting. Its cord, return spring and internal mechanism are used every time the machine is started and can eventually wear out.

A broken cord, a starter that no longer retracts, jams or fails to turn the engine correctly are symptoms that may require replacement. A recoil starter with reference 3904601195, which notably replaces the former reference 3904601088, is available for several compatible Scheppach and Woodster machines.

Compatibility must be checked carefully, as recoil starters that look similar may have different mounting points or dimensions.

Plate compactor drive belt: transmitting power to the vibration system

The drive belt transmits movement from the engine to the mechanism that generates the plate's vibrations. It is one of the main wear parts on this type of machine.

With operating hours, the belt can stretch, crack, fray or lose grip. A belt that is too loose can slip and transmit power less efficiently, while a badly damaged belt may eventually break.

The category includes a drive belt for the Woodster PC08, also used on Scheppach HP800 and HP800S plate compactors, as well as a set of two belts with reference 3904601029 for various machines. It is essential to use the correct reference for your model.

Fuel tank cap, gaskets and oil seals

Small components also play an important role in the reliability of a plate compactor. A damaged fuel tank cap, or one that no longer performs its function correctly, should be replaced with a part compatible with the machine.

Carburettor gaskets provide a seal in the intake system. A damaged gasket can cause an air leak and interfere with engine operation. Oil seals are also available for certain Scheppach and Woodster plate compactors.

Whenever components are dismantled, the condition of the gaskets and seals should therefore be checked, and damaged items should be replaced rather than refitted as they are.

Woodstar, Woodster and Scheppach: many shared parts

Woodstar and Woodster plate compactors share many components with certain Scheppach machines. This is particularly true of the Woodster PC08, for which several parts are also used on the Scheppach HP800 and HP800S.

Some engines may also share parts with other types of equipment, such as scarifiers, tillers, mini dumpers or generators. This explains why the same part reference may be listed as compatible with several different types of machine.

However, this does not mean that all parts are interchangeable. Before ordering, carefully check the exact model of your plate compactor, the part reference and, where necessary, the manufacturing date or serial number of the machine.

Maintaining your plate compactor to extend its service life

A plate compactor operates in demanding conditions involving dust, constant vibration, impacts and prolonged engine operation. Regular maintenance helps reduce premature wear and makes it easier to detect problems early.

It is advisable to regularly check the air filter, condition of the belt, possible leaks, tightness of components exposed to vibration and the general behaviour of the engine. Unusual noise, abnormal vibration or reduced effectiveness should prompt you to stop the machine and identify the cause before continuing work.

Extend the life of your Woodstar plate compactor

With the right spare parts for Woodstar and Woodster plate compactors, many PC08, PC11, PC13 and other models can continue to be serviced and repaired. A drive belt, carburettor, filter, ignition coil, recoil starter or simply a gasket may sometimes be all that is needed to get a machine working again.

The aim is to diagnose the fault correctly, identify the right part reference and replace only the component that is actually required. This allows you to extend the life of your Woodstar plate compactor and avoid replacing an entire machine that can still be repaired.
