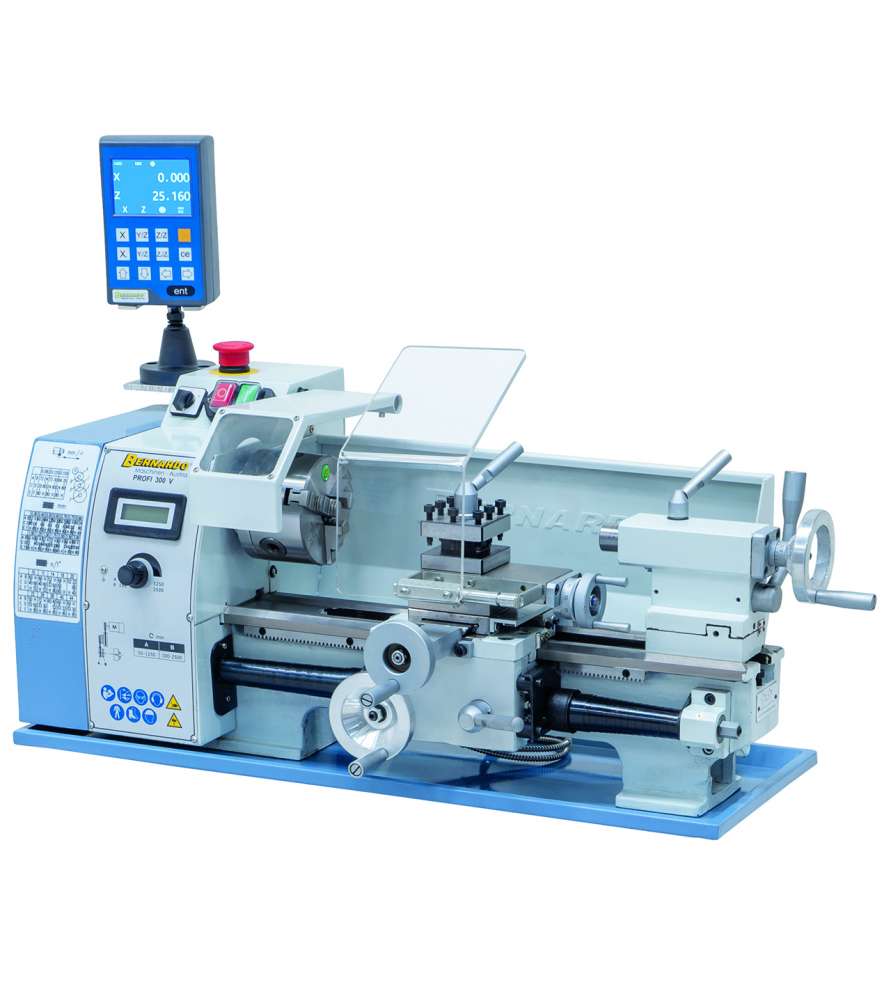

This Bernardo Profi 300V 2 axes metal lathe is a precise and powerful machine!

Its high-quality bearings allow a high accuracy of concentricity of the spindle nose (≤ 0.009 mm).

Advantages of the Bernardo Profi 300V metal lathe:

• Stepless speed adjustment
• Control elements are clearly arranged and accessible
• Machine bed inductive hardened and polished
• High-quality ball bearings ensure high spindle concentricity (≤ 0,009)
• 3 freely adjustable longitudinal feeds
• Adjustable tailstock for taper turning
• Guideways adjustable via gibs
• Serially equipped with change gears for thread cutting

Delivery with :

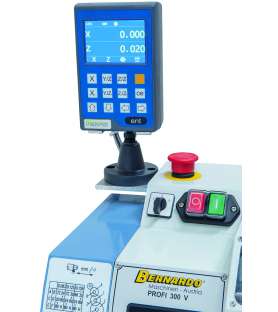

• 2-axis position display DT 30

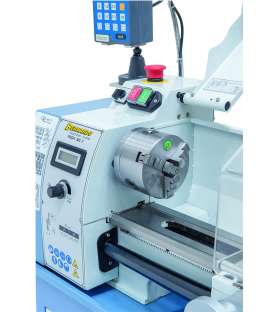

• 3-jaw chuck DK11-100 mm
• 4-way tool post holder
• 2 dead center

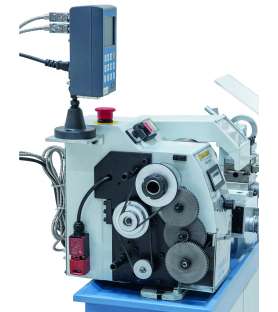

• Change gear

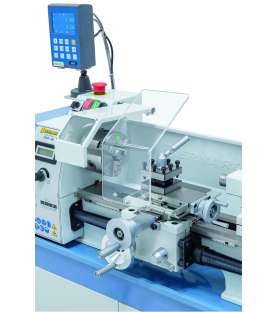

• Chuck guard
• Splash guard
• Chip tray
• Digital speed indication
• Tools

Technical characteristics of the Bernardo Profi 300V lathe:

• Warehouse: 300 mm
• Height of tip: 90 mm
• Machinable diameter above the bench: 180 mm
• Broach passage: 20 m èm
• Spindle cone: CM 3
• Rotational speed range, variable: 50 - 1250/100 - 2500 rpm
• Longitudinal feeds: (3) 0.083 - 0.159 mm / rev
• Metric Threads: (14) 0.3 - 3 mm
• Inch threads: (10) 10 - 44 tpi
• Backstop sleeve stroke: 60 mm
• Cone of the tailstock sheath: CM 2
• Continuous power S1 100%: 0.45 kW / 230 V
• Power S6 40%: 0,60 kW / 230 V
• Machine dimensions (W x D x H) *: 740 x 390 x 370 mm
• Weight (approx.): 60 kg
• optional stand
