With its massive frame, this machine shows excellent rigidity, especially when machining very hard steels.

It is fitted as standard with an automatic longitudinal feed.

Advantages of the Metalprofi JY250VL metal lathe:

• It has a gray cast iron prismatic bench, induction hardened and precision ground, a hardened shaft with adjustable tapered bearings, grease nipples on all moving parts and a spindle nose less than 0.009 mm ensuring precision. maximum shooting.
• The speed of rotation is continuously adjustable, and is easily modifiable which allows a wide range of work.
• The powerful motor is maintenance-free and works with a trigger.
• Finally, the tailstock can be adjusted for taper turning, left or right turning.

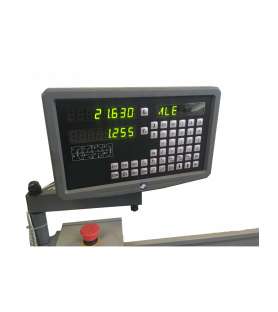

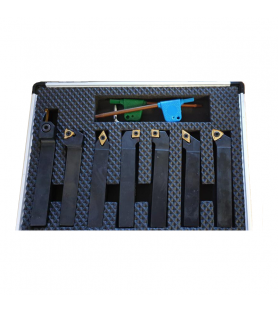

• The metal lathe is delivered with: visu 2 axes and 7 carbide tools. Thread selector.

Technical characteristics of the Metaprofi JY250VL metal lathe:

• Motor power 230V / 50Hz: 750 W
• Bench width: 135 mm
• Center height: 125 mm
• Between centers: 750 mm
• Machinable diameter max. : 250 mm
• Max.diameter above the carriage: 145 mm
• Spindle speed: 50 - 2000 RPM
• Number of speeds: continuously adjustable
• Spindle Morse taper: CM4
• Spindle bore: 26 mm
• 3-jaw chuck bore Ø100mm: 26
• Longitudinal travel of the carriage: 510 mm
• Morse taper of sliding headstock: CM2
• Stroke against point: 70 mm
• Longitudinal feed: 0.08 - 0.48mm x revolution
• Transverse feed: 0.03 - 0.156mm x revolution
• Number of forward speeds: 2
• Metric thread: 0.2 -3.5
• Imperial thread: 8 - 56 TPI

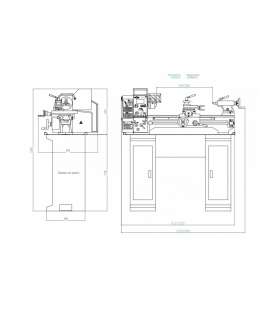

• Dimensions: 1350x610x450 mm
• Weight: 150 kg
• Package: 1350x570x570 mm
