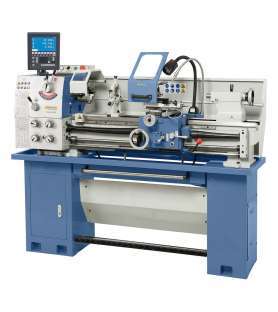

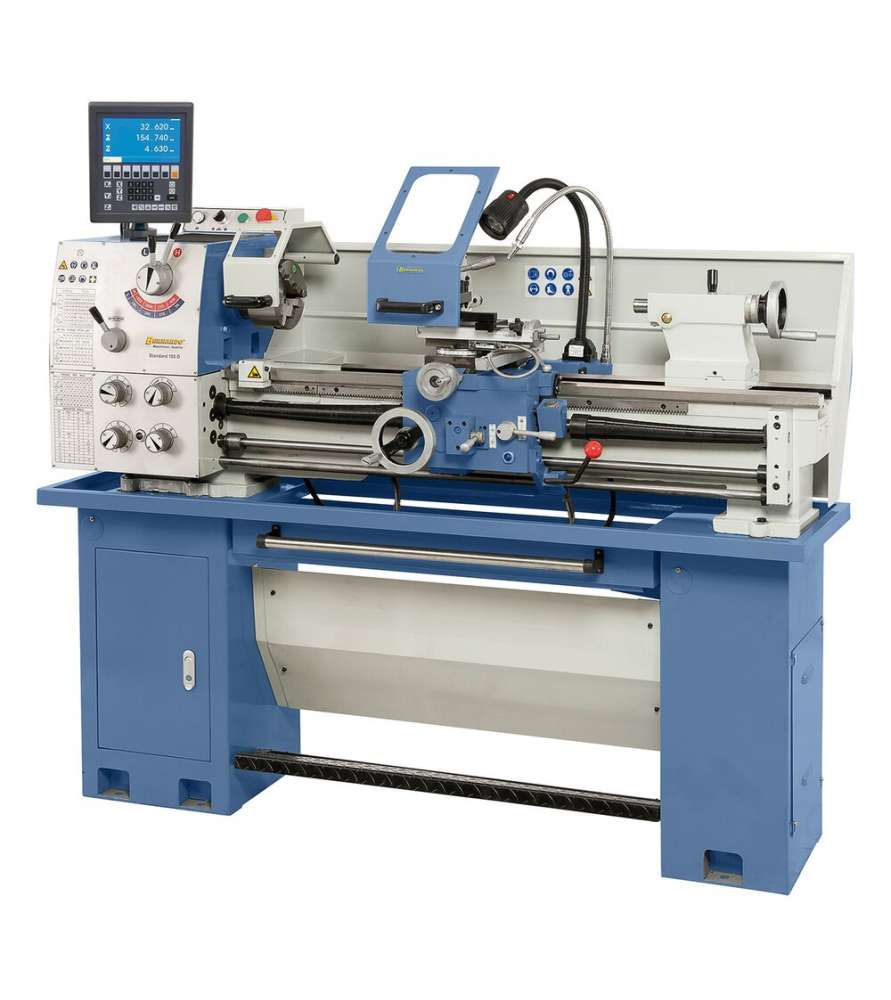

Advantages of the Universal lathe Bernardo Standard 165 D incl. 3-axis digital readout ES-12 V :

• Entire range of equipment: 3-axis digital readout, LED machine lamp, machine stand and many more

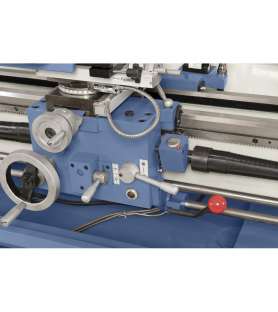

• Practical machine with leadscrew and feed rod for thread cutting and automatic feed
• Removable bridge allows processing of workpieces of large diameter
• Solid prism-shaped machine bed features additional reinforcements to keep vibrations to a minimum
• Clearly arranged speed and feed control settings, smooth operation and accurate control
• Strongly reinforced prism-shaped machine bed features induction hardened and polished guiding
• Hardened and polished main spindle, saturated in oil
• Removable tailstock for taper turning, handwheel features adjustable fine scale (0.04mm)

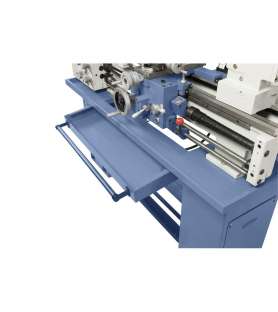

• Extractable chip tray minimizes space requirements

The Universal lathe Bernardo Standard 165 D incl. 3-axis digital readout ES-12 V comes with :

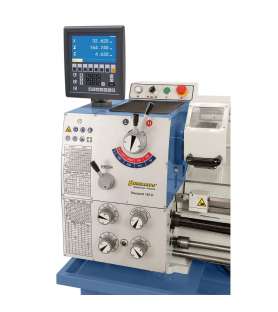

• 3-axis digital readout ES-12 V with LCD-display
• 3-jaw chuck DK11-160 mm / D4

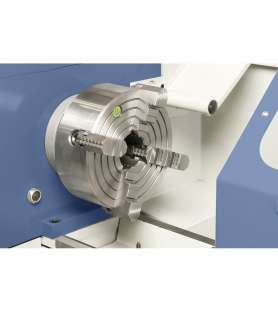

• Independent chuck 200 mm / D4, according DIN 55029

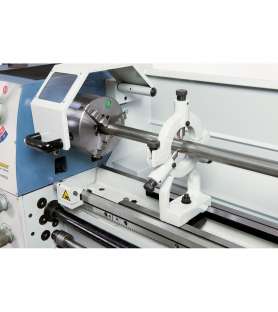

• Steady rest – Passage up to 60 mm
• Follow rest – Passage up to 60 mm
• Face plate 250 mm
• 4-way tool post holder
• Protective device at tool holder
• Safety clutch
• Micrometer longitudinal fence
• Coolant device
• Extractable chip tray
• Motor with magnetic brake according CE
• Foot pedal with brake function according CE
• Splash guard
• Thread dial

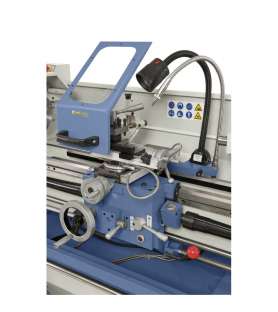

• LED machine light
• Morse taper drill sleeve

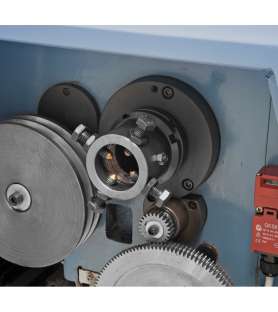

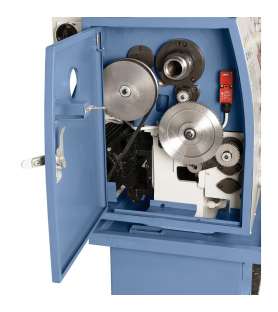

• Change gears
• 2 dead centers
• Stand
• Tools

Technical specifications of the Universal lathe Standard 165 D incl. 3-axis digital readout ES-12 V :

• Distance between centers : 1000 mm
• Center height : 175 mm
• Swing over bed : 350 mm
• Swing over gap* : 450 mm
• Swing over cross slide : 190 mm
• Bed width : 180 mm
• Spindle bore : 40 mm
• Spindle nose fixture : DIN 55029, D1-4
• Speed range : (8) 70 - 2000 rpm
• Longitudinal feed : (40) 0,053 - 1,29 mm/rev
• Cross feed : (40) 0,013 - 0,31 mm/rev
• Metric thread : (32) 0,4 - 7 mm
• Inch thread : (36) 4 - 60 threads/1“
• Travel of tailstock sleeve : 110 mm
• Taper of tailstock sleeve : MT 3
• Motor power output S1 100% : 1,5 kW (400 V)
• Motor power input S6 40% : 2,2 kW (400 V)
• Machine dimension (W x D x H) : 1730 x 700 x 1340 mm
• Weight approx. : 514 kg

IMPORTANT FOR THE DELIVERY AND START-UP OF XXL MACHINES!

XXL machines are shipped only by 38-ton truck WITHOUT tailgate. The delivery location must be designed so that this type of truck can easily approach and maneuver. By ordering an XXL machine, the recipient agrees to be equipped with a lift or other stacker to unload the machine from the truck themselves on the day of delivery. Any unsuitable or insufficient lifting equipment causing the machine to fall cannot be attributed to the carrier or the factory.

If access by this type of truck is impossible, the machine must remain at the carrier's depot near the customer, who will then arrange for its own collection (trailer, van). If the carrier is able to offer delivery by smaller truck, any additional costs will be the customer's responsibility and must be paid before delivery.

Start-up: Prices do not include assembly or electrical installation, which must be carried out by a professional to avoid damage to the machine's motors and electrical circuits, which will not be covered by the warranty.
