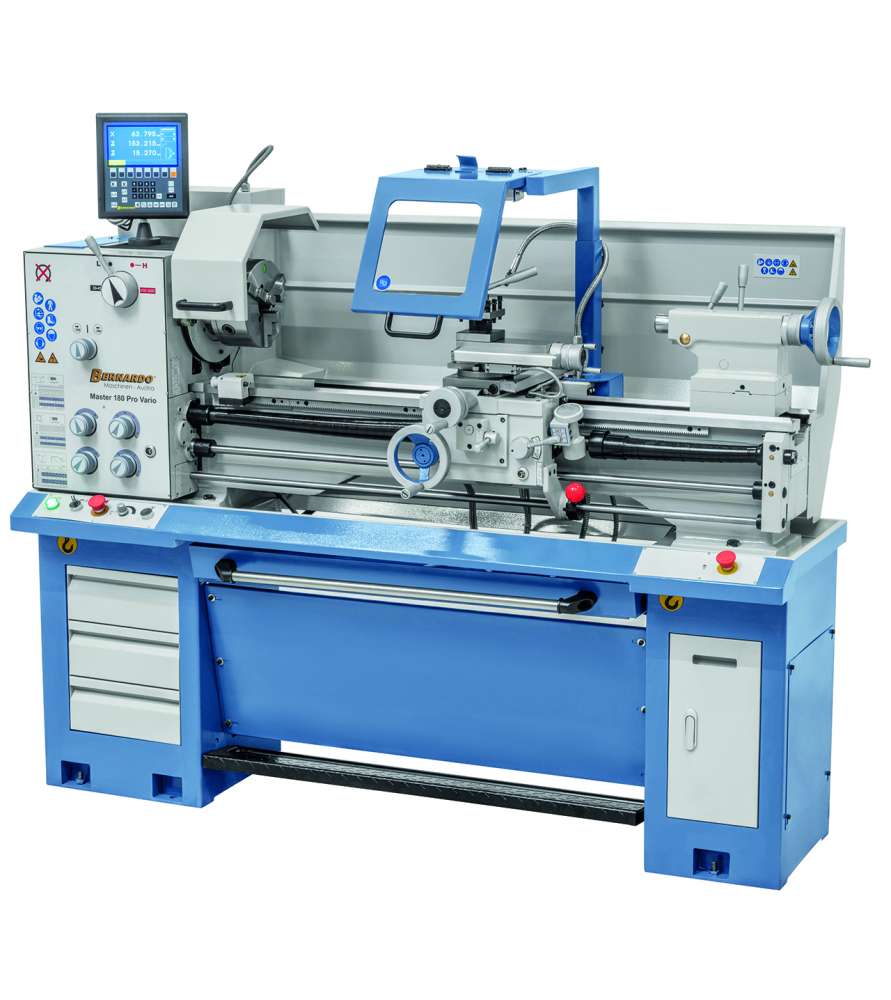

Advantages of the Bernardo Master 180 Pro Vario metal lathe with 3-axis digital display ES-12 V - 400 V :

• Serially with Delta-frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads
• Stepless speed adjustment, set speed can be read on digital display
• 52 mm spindle bore to machine large shaft diameters comes standard
• Ideal for processing of steel, non-ferrous materials and plastics
• High spindle concentricity (≤ 0,015 mm)
• Grey cast-iron machine bed, inductive hardened and polished
• Electro-magnetic foot brake reduces downtime
• Clear arranged speed and feed control settings, smooth operation and accurate control
• State-of-the-art spindle bedding with high-quality, angular ball bearings
• Ideal für Fachschulen, Reparaturbetriebe und Ausbildungswerkstätten

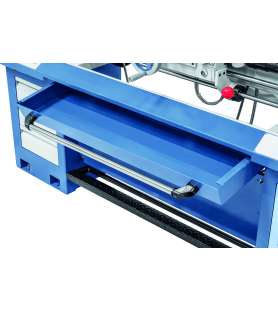

• Chip tray extracts to front, keeping space requirements to a minimum

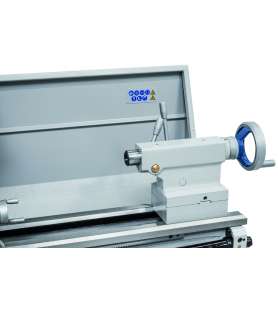

• Tailstock can be adjusted ± 5 mm for taper turning

The Bernardo Master 180 Pro Vario metal lathe with 3-axis digital display ES-12 V - 400 V comes with :

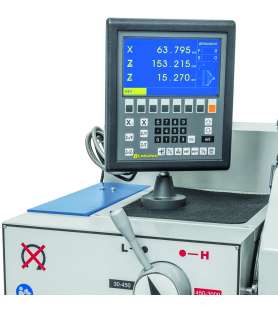

• 3-axis digital readout ES-12 V with LCD-display

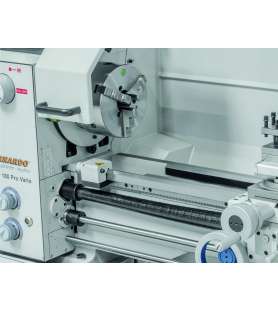

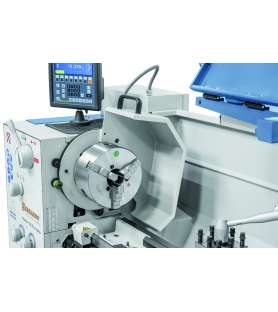

• 3-jaw chuck PO3-200 mm / D5

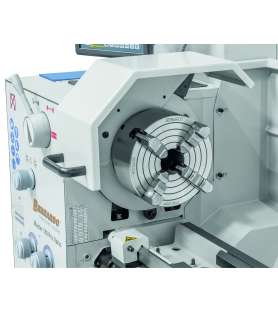

• Independent chuck 200 mm / D5, according DIN 55029

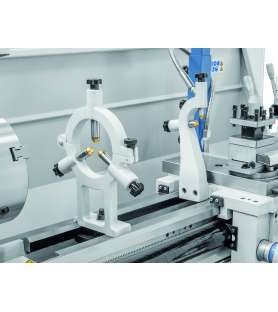

• Steady rest - Passage up to 70 mm
• Follow rest - Passage up to max. 60 mm
• Coolant device
• Initial filling with Shell Tellus 46
• Extractable chip tray
• Face plate 320 mm
• 4-way tool post holder

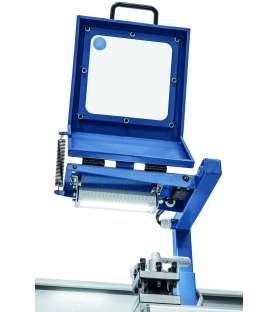

• Protective cover at 4-way tool post holder
• Safety clutch
• Micrometer longitudinal fence
• Thread dial

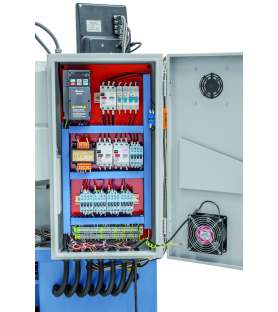

• Frequency inverter
• Digital readout of speeds
• LED machine light
• Morse taper drill sleeve

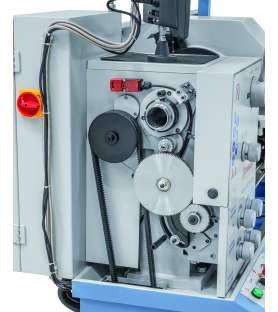

• Change gears
• 2 dead centers
• Foot pedal with brake function according to CE
• Stand
• Tools

Technical specifications of the Bernardo Master 180 Pro Vario metal lathe with digital display 3 axes ES-12 V - 400 V :

• Distance between centers : 1000 mm
• Center height : 180 mm
• Swing over bed : 360 mm
• Swing over cross slide : 220 mm
• Bed width : 185 mm
• Spindle bore : 52 mm
• Spindle nose fixture : DIN 55029, D1-5
• Speed range : 30 – 450 / 450 – 3000 rpm
• Longitudinal feed : (32) 0,052 – 1,392 mm/rev.
• Cross feed : (32) 0,14 – 0,380 mm/rev.
• Metric thread : (26) 0,4 – 7,0 mm
• Inch thread : (34) 4 – 56 Gg/1“
• Diameter of tailstock sleeve : 42 mm
• Travel of tailstock sleeve : 100 mm
• Taper of tailstock sleeve : MT 4

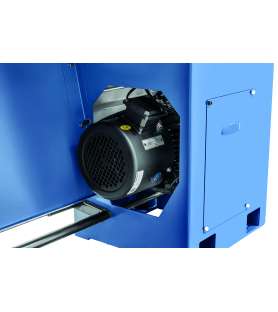

• Motor power output S1 100% : 2,2 kW (400 V)
• Motor power input S6 40% : 3,0 kW (400 V)
• Machine dimension (W x D x H) : 1920 x 800 x 1580 mm
• Weight approx. : 600 kg
