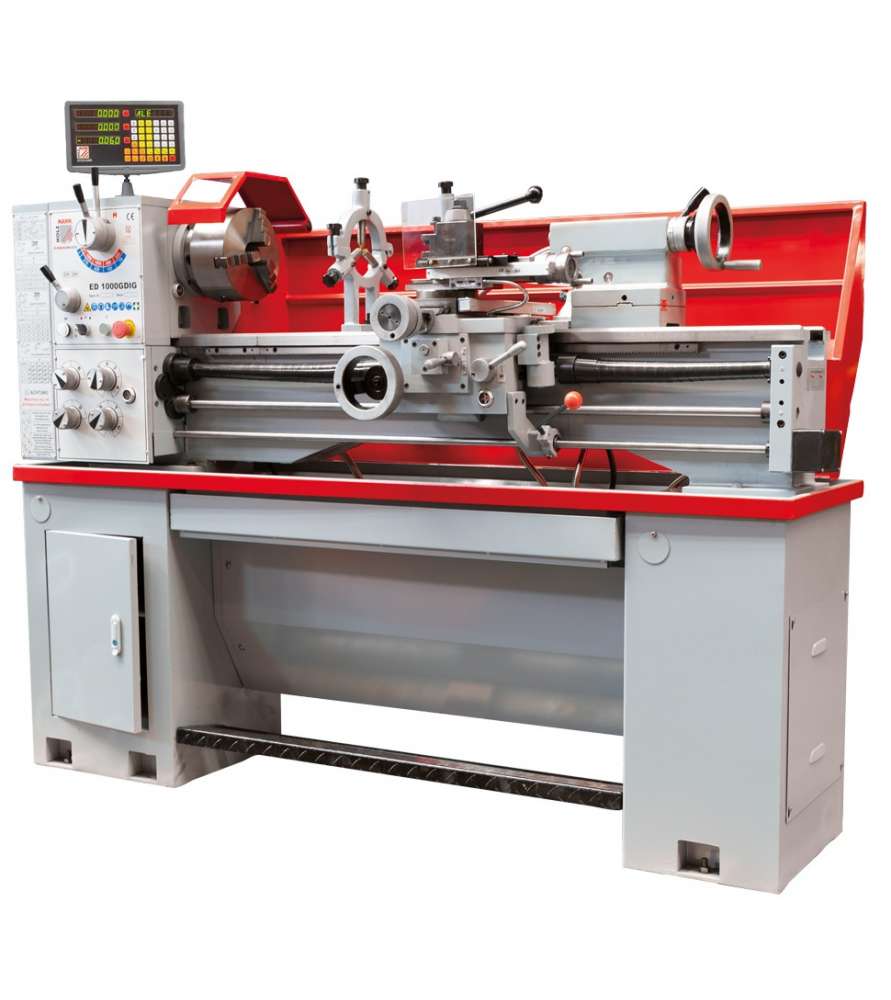

This Holzmann ED1000GDIG metal lathe is a versatile and robust machine!

This machine is ideally suited for use in machining centers, factories, or for schools.

Advantages of the Holzmann ED1000GDIG metal lathe:

• With change of speed.
• Very large Ø52 mm series spindle bore, for large diameter work.
• Electromagnetic foot brake - for maximum safety and minimal unproductive time by stopping the spindle.
• Prismatic bench hardened by induction and rectified with precision.
• Very quiet machine thanks to processed transmission components.
• Gearbox with oil lubricated and ground gears.
• Main spindle dynamically balanced, high concentricity of spindle nose (<0.009mm).
• Simple and fast change of speed via transmission by lever.
• Spindle attachment D1-5 according to DIN 55029
• The tailstock can be shifted for conical turning +/- 5 mm.
• Sliding rail with bacon.
• Experienced users will be able to choose between 26 metric threads (0.45-10mm) and 20 threads in inch (2.25-40 Gg / 1 ").
• Digital display

The lathe comes with: 3-position quick-change turret, 3-jaw chuck Ø 200mm, 4-jaw chuck Ø 200mm, chuck guard, spindle plate Ø 250mm, 2x solid fixed tip CM4, reduction sleeve CM 6/4 , fixed bezel, telescope, halogen lamp, rear housing, cooling system, electromagnetic foot brake, 1 gear kit, service keys, digital display, pedestal

Technical specifications Holzmann ED1000GDIG metal lathe:

• Engine power S1 (100%) / S6: 1.5kW / 2.1 kW
• Voltage: 400 V
• Warehouse distance: 1000mm
• Height of tips: 180mm
• Bench width: 187mm
• Bench height: 305mm
• Max. machinable: 360mm
• Max. above the carriage: 198mm
• Max. under the bench: 470mm
• Spindle bore: 52mm
• Spindle speed (8): 70-1900 rpm
• Brood Morse Cone: MC6
• Morse Doll Cone Mobile: MC4
• Spindle attachment: D1-5
• Longitudinal feed: 0.078-1.044 T / min
• Cross feed: 0.022-0.298 rpm
• Metric Thread Range (32): 0.45-10.0mm
• Thread range in inches (20): 2,25-40 TPI
• Longitudinal carriage stroke: 810mm
• Cross carriage travel: 190mm
• Upper carriage stroke: 88mm
• Stroke of the mobile doll sleeve: 120 mm
• Max capacity of the turret: 20x20 mm
• Weight: 680 kg
• Machine dimensions: 1830x760x1330 mm
• Package dimensions: 1940x760x1520 mm
