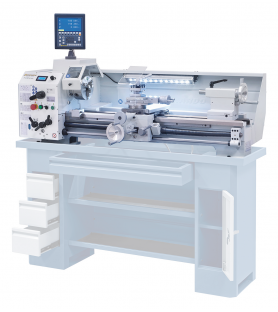

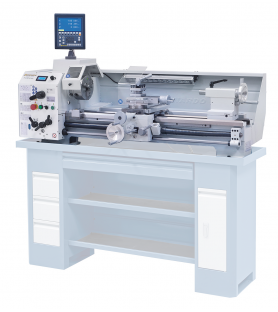

Bernardo Precision lathe Profi 880 G Vario incl. 2-axis digital readout ES-12 V - 400 V

€4,397.80
3,795.00 € Tax included Save €600.00

Including €2.80 for ecotax (not impacted by the discount)

Reference: BPROFI880GVARIO2AX-T

The Bernardo Vario-lathe Profi 880 G Vario lathe features a reduction gear as standard, which eliminates the need to change speed step using V-belt. Another feature of this machine is the standard frequency inverter, resulting in high torque in the lower speed range and the nearly constant speed at heavy workloads.

Quantity
Delivery time 12-15 working days

Advantages of the Bernardo Profi 880 G Vario 2-axis metal lathe with digital display ES-12 V - 400V :

  • Complete with 38 mm spindle bore to allow processing of large shaft diameters
  • Strongly reinforced machine bed featuring induction-hardened, polished guide
  • Suitable for processing of steel, non-ferrous metals and plastics
  • Universal in use: longitudinal turning, facing, profiling, thread cutting etc.
  • Change gears for cutting of metric threads are part of the standard accessories
  • Main spindle features adjustable tapered roller bearings in P5 quality
  • User-friendly arrangement of control elements on gear head
  • Tailstock features single-lever clamping, adjustable for taper turning
  • V-ledges allow for adjustment of bed way guides
  • Serially with Delta frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads

The Bernardo Profi 880 G Vario 2-axis metal lathe with digital display ES-12 V - 400V comes with :

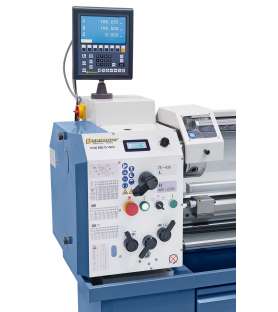

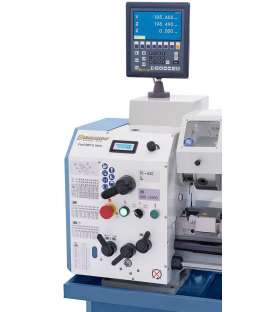

  • 2-axis digital readout ES-12 V with LCD-display

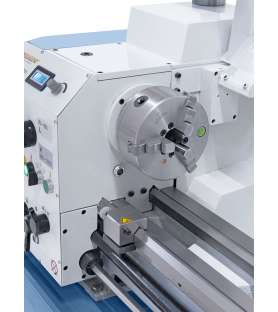

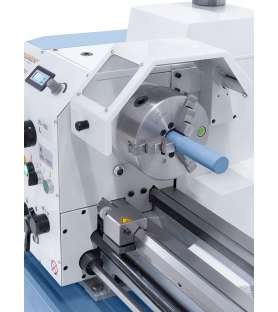

  • 3-jaw chuck DK11-160 mm / D4
  • Dead centers
  • Change gears
  • 4-way tool post holder
  • Safety clutch
  • Micrometer longitudinal fence

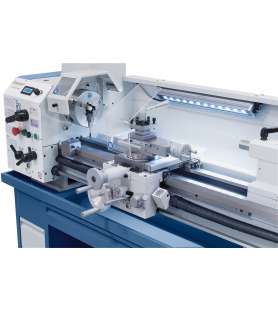

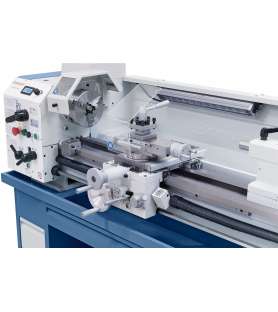

  • Cross slide with top support
  • Frequency inverter
  • Digital speed indication
  • Thread dial

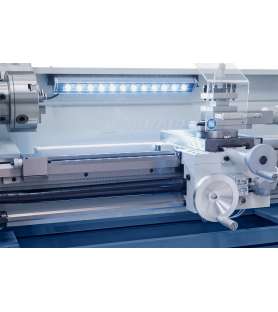

  • LED machine light
  • Chuck guard
  • Splash guard
  • Leadscrew cover
  • Tools

Technical specifications of the Bernardo precision lathe Profi 880 G Vario / 400V incl. 2-axis digital readout ES-12 V :

  • Distance between centers : 880 mm
  • Center height : 160 mm
  • Swing over bed : 320 mm
  • Spindle bore : 38 mm
  • Spindle nose fixture : DIN 55029, D1-4

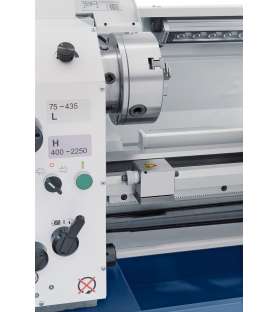

  • Speed range, stepless : 75 – 435 / 400 – 2250 rpm
  • Longitudinal feed : (15) 0,07 – 1,0 mm/rev.
  • Cross feed : (15) 0,017 – 0,25 mm/rev.
  • Metric thread : (18) 0,2 – 3,5 mm
  • Inch thread : (21) 8 – 56 threads/1“
  • Travel of tailstock sleeve : 100 mm
  • Taper of tailstock sleeve : MT 3
  • Motor power output S1 100% : 1,5 KW / 400 V
  • Motor power input S6 40% : 2,2 kW / 400 V
  • Machine dimension (W x D x H)* : 1660 x 650 x 570 mm
  • Weight approx. : 255 kg
  • * without stand
