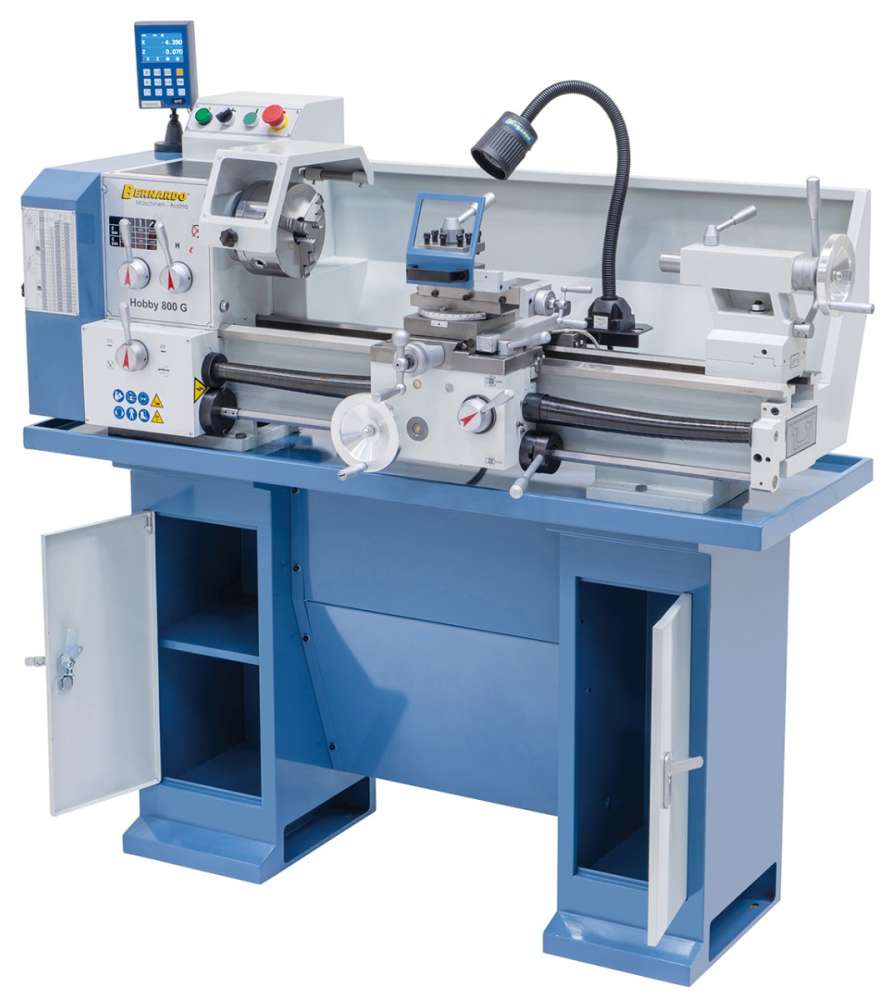

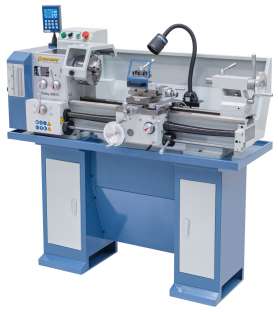

This Bernardo Hobby 800 G metal lathe features rapid speed adjustment!

The 12-step control gear allow a quick adjustment of the speed – not belt change necessary. The compact construction and the high own weight guarantees smooth running and precise work.

Advantages of the Bernardo Hobby 800 G metal lathe :

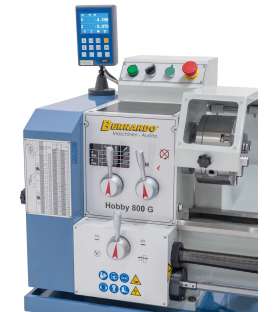

• Control gear allows easy and quick speed change
• High-quality tapered rollerbearings ensure high concentricity of spindle nose (≤ 0,015 mm)
• Powerful motor for high torque, speed range 70 – 1800 rpm
• Wide range of applications: precision mechanics, training and education, etc.
• Logically arranged feed setting allows easy, smooth adjustment
• Solid machine bed with inductive hardened and polished guideways
• Ideal for processing steel, non-ferrous metals and plastics
• Comes complete with leadscrew for thread cutting and automatic longitudinal and cross feed

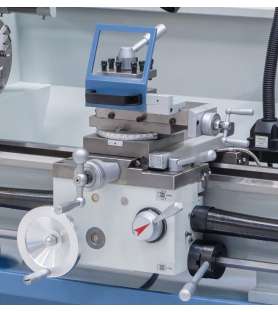

• Apron features handwheels with fine scale

Technical specifications of the Bernardo Hobby 800 G metal lathe :

• Distance between centers : 750 mm
• Center height : 165 mm
• Swing over bed : 330 mm
• Bed width : 160 mm
• Spindle bore : 38 mm
• Taper at spindle bore : MT 5
• Speed range : (12) 70 - 1800 rpm
• Longitudinal feed : (45) 0,0087 - 1,395 mm/rev.
• Cross feed : (48) 0,018 - 0,296 mm/rev.
• Metric thread : (17) 0,5 - 4 mm
• Inch thread : (26) 8 - 40 threads/1“
• Travel of tailstock sleeve : 75 mm
• Taper of tailstock sleeve : MT 3
• Motor power output S1 100% : 1,1 kW 400 V
• Motor power input S6 40% : 1,5 kW 400 V
• Machine dimension (W x D x H)* : 1370 x 680 x 1320 mm
• Weight approx. : 268 kg
• * without stand

The Bernardo Hobby 800 G metal lathe comes with :

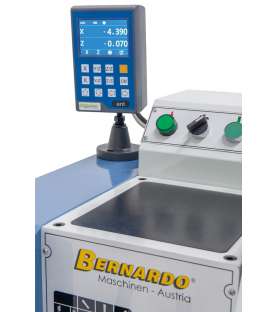

• 3-axis digital readout DT 40 with LCD-display

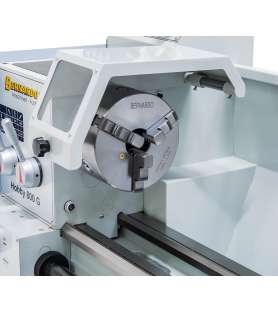

• 3-jaw chuck 160 mm
• Cross slide with top support
• Dead center

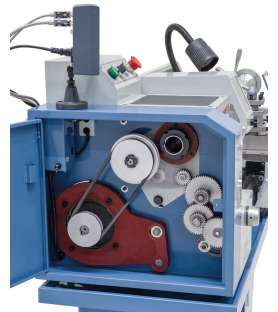

• Change gears
• 4-way tool post holder
• LED machine light
• Chuck guard
• Splash  guard
• Leadscrew cover
• Chip tray
• Stand
• Tools
