General description of the Bernardo PROFI450S VARIO metal lathe with 2-axis digital display:

• High concentricity of the spindle nose (≤ 0.009 mm) thanks to precision tapered roller bearings
• Standard with lead screw for threading or for automatic longitudinal feed
• Powerful drive motor for high torque, speed range 100-2200 rpm
• Versatile application possibilities: precision mechanics, training and teaching workshops, ...
• Solid machine bed with induction hardened and ground bed guide
• Tailstock can be adjusted for taper turning
• User-friendly arrangement of the switching elements
• Guides adjustable via V-shaped edges
• Ideal for processing steel, non-ferrous materials and plastics
• Continuously variable electronic speed control, allowing optimum adjustment of the cutting speed to the workpiece

Technical characteristics of the Bernardo PROFI450S VARIO metal lathe with 2-axis digital display:

• Distance between centers: 450 mm
• Central height: 115 mm
• Circumferential diameter over bed: 230 mm
• Bed width: 135 mm
• Spindle bore: 20 mm
• Installation in the spindle bore: MK 3
• Speed ​​range, continuous: 100-1100 rpm
• 200 to 200 rpm
• Longitudinal feed range: (2) 0.1 / 0.2 mm / rev
• Metric thread: (14) 0.4 - 3.5 mm
• Inch thread: (12) 8 - 44 Gg / 1 "
• Spindle cone: 60 mm
• Pen holder: MK 2
• Motor output power S1 100%: 0.90 kW (230 V)
• Power consumption of the motor S6 40%: 1.35 kW (230 V)
• Machine dimensions (W x D x H) *: 1000 x 580 x 500 mm
• Approx weight: 112 kg
• * without base

The Bernardo PROFI450S VARIO metal lathe with 2-axis digital display is delivered with:

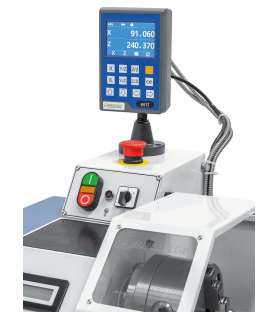

• 2-axis ES-12 V digital display with LCD display
• 3-jaw chuck 125 mm
• Chuck flange 125 mm
• Cross slide with upper support
• Digital speed display
• Fixed central point
• Change speed
• Quadruple steel support
• Protection of forage
• Chip back wall
• Lead screw cover
• Operating tool
