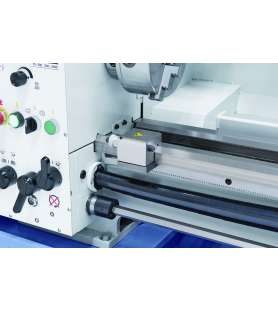

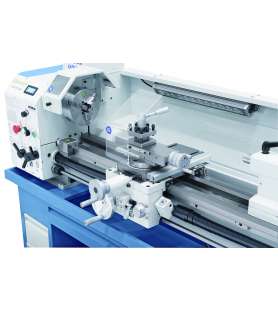

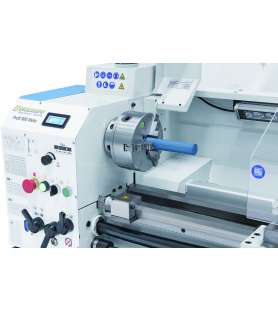

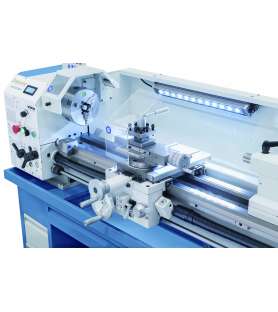

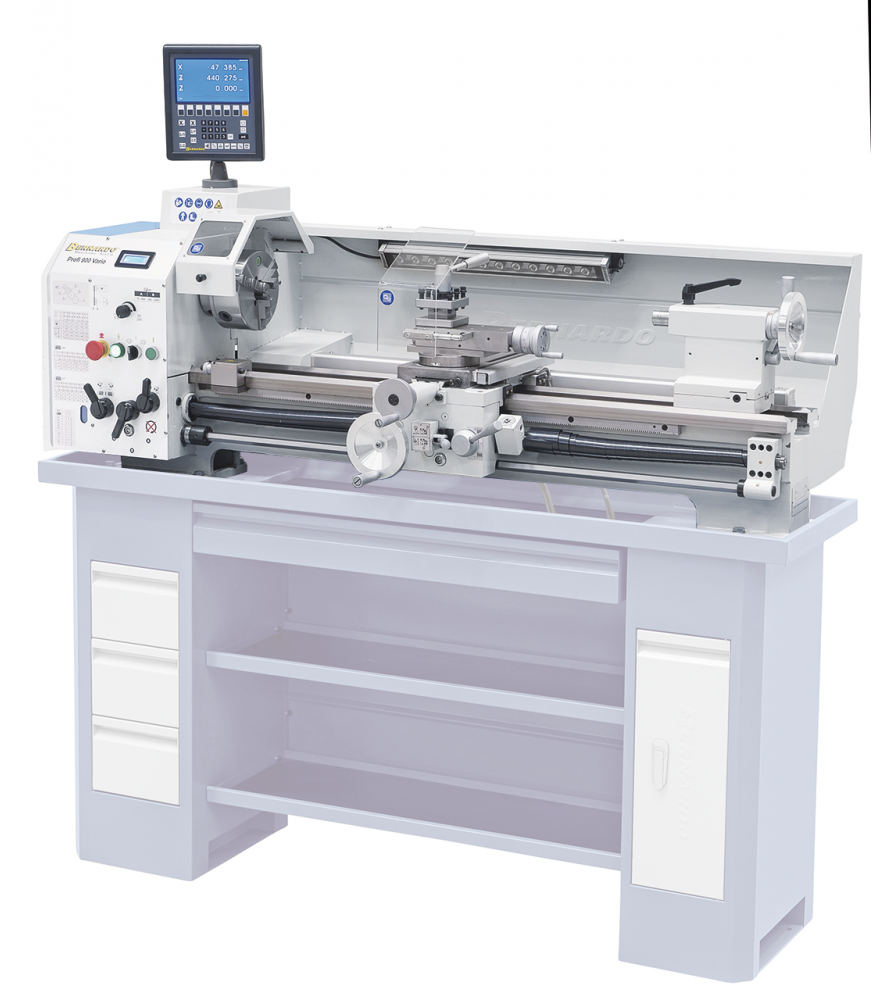

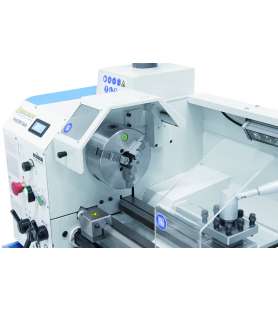

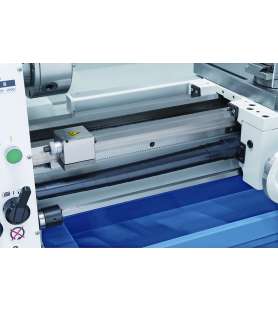

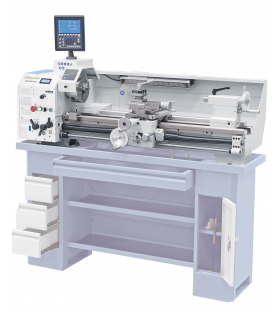

Precision lathe Bernardo Profi 900 Vario incl. 2-axis digital readout ES-12 V - 230V
  • Precision lathe Bernardo Profi 900 Vario incl. 2-axis digital readout ES-12 V - 230V
  • Precision lathe Bernardo Profi 900 Vario incl. 2-axis digital readout ES-12 V - 230V
  • Precision lathe Bernardo Profi 900 Vario incl. 2-axis digital readout ES-12 V - 230V
  • Precision lathe Bernardo Profi 900 Vario incl. 2-axis digital readout ES-12 V - 230V
  • Precision lathe Bernardo Profi 900 Vario incl. 2-axis digital readout ES-12 V - 230V
  • Precision lathe Bernardo Profi 900 Vario incl. 2-axis digital readout ES-12 V - 230V
  • Precision lathe Bernardo Profi 900 Vario incl. 2-axis digital readout ES-12 V - 230V
  • Precision lathe Bernardo Profi 900 Vario incl. 2-axis digital readout ES-12 V - 230V

Precision lathe Bernardo Profi 900 Vario incl. 2-axis digital readout ES-12 V - 230V

€4,297.80
3,495.00 € Tax included Save €800.00

Including €2.80 for ecotax (not impacted by the discount)

Reference: BPROFI900VARIO2AX-230V

The Bernardo Vario-lathe Profi 900 Vario feature a large range of standard accessories (for instance DC-motor with frequency inverter, main spindle bearing in P5-quality, micrometric longitudinal fence, safety clutch, LED machine light,....) making this model ideal for users with high expectations. For reducing the non-productive time, the model is also available with a 2-axis digital readout.

Quantity
Factory Shipping, delivery time 7-10 working days

Advantages of the precision lathe Bernardo Profi 900 Vario incl. 2-axis digital readout ES-12 V - 230V :

  • Three -phase motor with frequency inverter for higher performance and high torque
  • Complete with 38 mm spindle bore to allow processing of large shaft diameters
  • Stepless speed adjustment as part of standard accessories, set speed can be read on digital display
  • Wide range of applications: precision mechanics, training and education, etc.
  • Feed settings are logically arranged, easy to control with top accuracy
  • Suitable for processing of steel, non-ferrous metals and plastics
  • Prism bed with large support surface, inductively hardened and polished
  • Precise spindle bearing with two adjustable precision taper roller bearings
  • High concentricity of spindle nose – better than 0.015 mm
  • Practical, solid machine with leadscrew and feed rod

The Bernardo Profi 900 Vario metal lathe with 2-axis digital display ES-12 V - 230V comes with :

  • 2-axis digital readout ES-12 V with LCD-display
  • 3-jaw chuck DK11-160 mm / D4
  • Dead centers
  • Change gears
  • 4-way tool post holder
  • Safety clutch
  • Micrometer longitudinal fence
  • Cross slide with top support
  • Frequency inverter
  • Digital speed indication
  • Thread dial
  • LED machine light
  • Chuck guard
  • Splash guard
  • Leadscrew cover
  • Tools

Technical specifications of the Bernardo Profi 900 Vario metal lathe with 2-axis digital display ES-12 V - 230V :

  • Distance between centers : 900 mm
  • Center height : 160 mm
  • Swing over bed : 320 mm
  • Spindle bore : 38 mm
  • Spindle nose fixture : DIN 55029, D1-4
  • Speed range, stepless : 75 – 500 / 300 – 2000 rpm
  • Longitudinal feed : (15) 0,07 – 1,0 mm/rev.
  • Cross feed : (15) 0,017 – 0,25 mm/rev.
  • Metric thread : (18) 0,2 – 3,5 mm
  • Inch thread : (21) 8 – 56 threads/1“
  • Travel of tailstock sleeve : 100 mm
  • Taper of tailstock sleeve : MT 3
  • Motor power output S1 100% : 1,5 KW / 230 V
  • Motor power input S6 40% : 2,2 kW / 230 V
  • Machine dimension (W x D x H)* : 1650 x 650 x 600 mm
  • Weight approx. : 240 kg
  • * without stand
