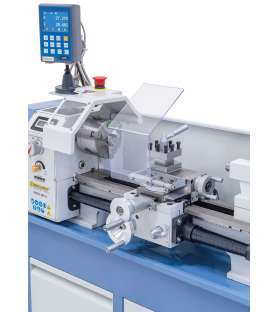

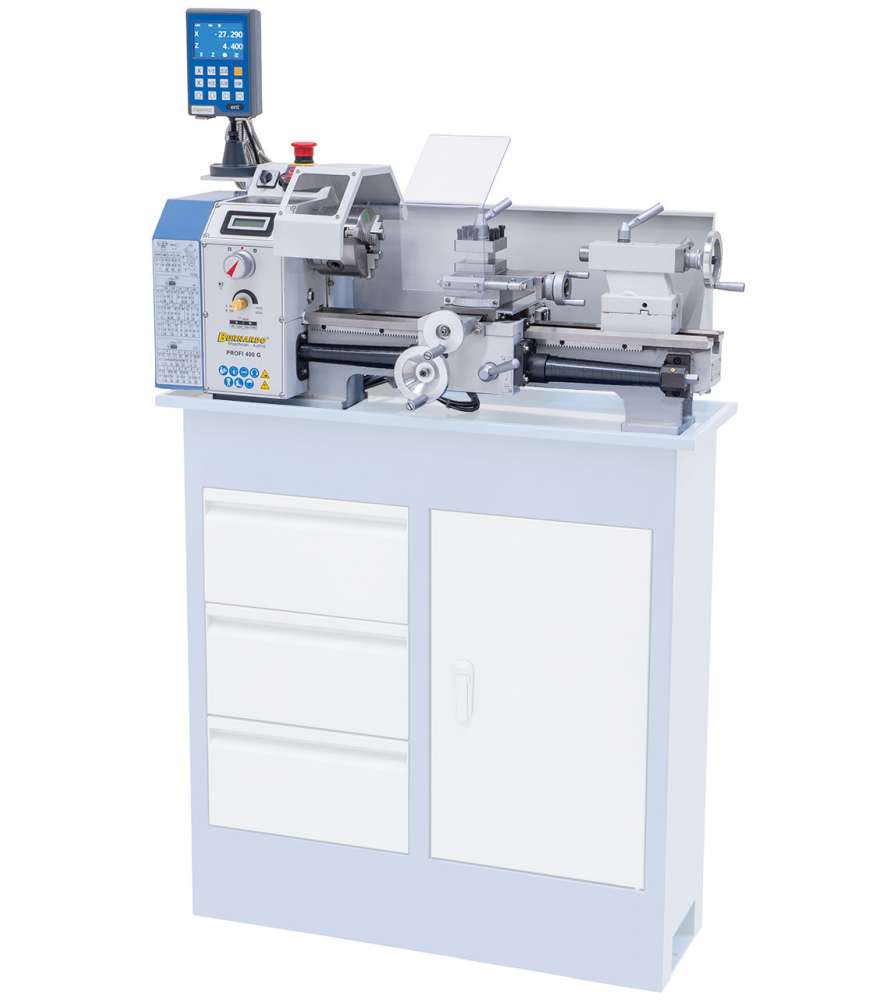

General description of the Bernardo Profi 400G metal lathe :

• Standard with 2-speed gearbox and electronic speed regulator
• Heavily ribbed prismatic bench with induction hardened and ground slide
• Ideal for machining steel, non-ferrous materials and plastics
• Multiple uses: facing, turning, turning, tapping, etc.
• Standard with interchangeable gears for metric pitch threads
• P5 quality adjustable taper bearing spindle
• Ergonomic positioning of the controls on the head

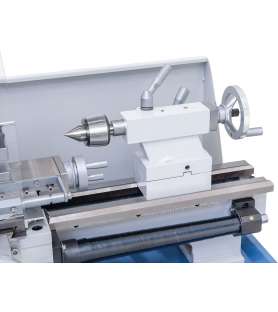

• Tailstock with clamping lever, adjustable for machining tapered workpieces
• Backlash compensation carriage guides

The Bernardo Profi 400G metal lathe comes with :

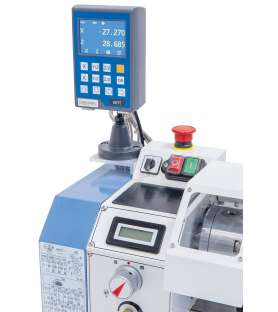

• 2-axis digital indicator DT 40
• 3-jaw chuck DK 11-100 mm
• 4 position turret
• Centering drills
• Chuck guard
• Rear cover
• Chip tray
• Digital speed indicator

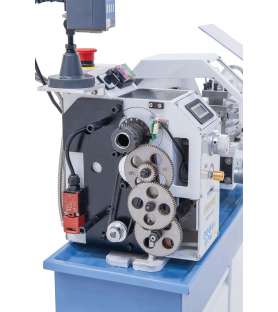

• Interchangeable gears
• Service tools

Technical characteristics of the Bernardo Profi 400G metal lathe :

• Between points: 400 mm
• Tip height: 105 mm
• Machinable diameter above the bed: 210 mm
• Spindle clearance: 21 mm
• Spindle taper: CM 3
• Rotation speed range, variable: 50 - 1250 / 100 - 2500 rpm
• Longitudinal feeds: (3) 0.089 - 0.198 mm/rev
• Metric threads: (15) 0.3 - 3 mm
• Inch threads: (12) 10 - 44 TPI
• Tailstock quill travel: 55 mm
• Tailstock quill cone: CM 2
• Continuous power S1 100%: 0.60 kW / 230 V
• S6 power 40%: 0.80 kW / 230 V
• Machine dimensions (L x D x H)*: 930 x 400 x 380 mm
• Weight (approx.): 60 kg
• * without base
