Spare Parts and Drive Belts for Bernardo PT260 Planer Thicknesser

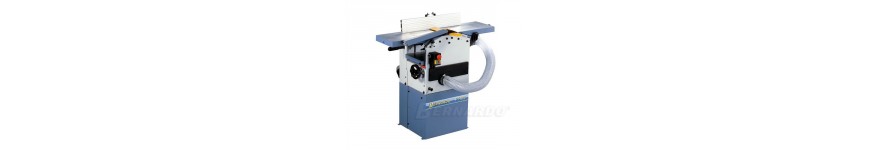

The Bernardo PT260 planer thicknesser is a woodworking machine designed for surface planing and thicknessing solid timber. It allows woodworkers to flatten timber faces, straighten edges and machine workpieces to a consistent thickness before assembly.

Equipped with an integrated chip extraction system, this machine combines several mechanisms, including motor transmission, feed roller drive, thicknessing table height adjustment and wood chip removal.

Over time, certain components may become worn, damaged or require replacement.

At Probois Machinoutils, we offer a wide selection of drive belts and spare parts for the Bernardo PT260 planer thicknesser, helping you repair your machine and extend its service life.

Our catalogue includes motor drive belts, extraction fan belts, flat belts, pulleys, electric motors, capacitors, feed rollers, tables, adjustment components, extraction parts and safety devices.

940J5 Motor Drive Belt for Bernardo PT260

The Bernardo PT260 motor drive belt transmits movement from the motor to the driven mechanisms of the machine.

A drive belt in good condition is essential for efficient power transmission and reliable machine operation.

We offer the 940J5 Poly-V belt, also identified as 370J, corresponding to position 116 in the exploded parts diagram.

This belt features 5 longitudinal ribs and is intended for several compatible planer thicknessers, including:

• Bernardo PT260 and PT260S.

• Bernardo PT305D and PT305DS.

• Holzmann HOB260ABS.

• Holzmann HOB305ABS and HOB305ABSSMW2.

These compatibility indications apply to the 230 V versions specified on the product page.

A worn motor drive belt may cause slipping, loss of power or unusual operating noises.

Before replacing the motor, it is therefore advisable to inspect the belt and its associated pulleys.

520J3 Extraction Fan Belt for Integrated Dust Extraction

The Bernardo PT260 with integrated extraction also uses a specific belt to drive the fan of the chip extraction system.

This is the 520J3 Poly-V belt, also identified as 205J, corresponding to position 126A in the exploded parts diagram.

This belt has 3 ribs.

Its function differs from that of the main motor drive belt: it is used to drive the extraction fan.

A damaged fan belt may reduce or interrupt fan operation, potentially affecting chip removal.

If the extraction system is not working correctly, check the belt, fan, ducts and other components before replacing any parts.

695 x 10 mm Flat Belt for Bernardo PT260

Our catalogue also includes a 695 x 10 mm flat belt, corresponding to position 151 in the exploded parts diagram.

This belt is offered for several compatible Bernardo and Holzmann planer thicknessers.

It must not be confused with the 940J5 and 520J3 Poly-V belts.

Each belt has a specific function and technical characteristics.

To choose the correct replacement, we recommend checking:

• The original belt type.

• Its dimensions.

• Its identification markings.

• Its position in the exploded parts diagram.

• The exact model of your machine.

These checks help prevent ordering mistakes and ensure that the replacement part is suitable.

230 V Electric Motor for Bernardo PT260

The Bernardo PT260 planer thicknesser motor provides the power required to operate the machine's mechanisms.

We offer a 230 V replacement motor, intended in particular for the Bernardo PT260 and Holzmann HOB260ABS.

Motor replacement may be necessary when an electrical or mechanical fault has been confirmed.

However, a machine that fails to start or appears to lack power does not necessarily have a defective motor.

Before ordering a motor, it is important to inspect the electrical supply, switch, capacitor, drive belts and any possible mechanical obstruction.

An excessive depth of cut or blunt planer knives may also cause the motor to become overloaded.

Accurate diagnosis helps avoid unnecessary replacement of an expensive component.

40 µF Capacitor and KJD17B Switch for Bernardo PT260

The electrical components of the Bernardo PT260 are essential for starting and operating the machine.

We offer a 40 µF – 450 V CBB60 capacitor, with specific dimensions of 42 x 70 mm, intended for certain planer thicknessers with integrated chip extraction.

A defective capacitor may cause starting difficulties, motor humming or failure of the motor to rotate.

However, the reference and specifications of the original capacitor must always be checked before ordering.

Our catalogue also includes a 230 V KJD17B switch, corresponding to position 106, for several compatible Bernardo and Holzmann models.

A damaged switch may prevent the machine from starting.

We also offer an emergency stop device and a 15 A overload protector, position 194, for certain 230 V versions.

These components contribute to the electrical operation and safety of the machine.

All electrical work must be carried out with the machine disconnected from the power supply and by a suitably qualified person.

Transmission Pulleys for Bernardo PT260 Planer Thicknesser

Transmission pulleys guide the drive belts and transfer movement between the machine's different mechanisms.

Our catalogue includes several pulleys for the Bernardo PT260:

• Pulley, position 51.

• Pulley, position 154.

• Motor pulley, position 113, references 10002928 and 10017609.

• Drive pulley with bushes for certain compatible machines.

A damaged, deformed or misaligned pulley may cause premature belt wear, vibrations or mechanical noise.

We also offer additional components, such as the pulley retaining screw, position 157, the pin, position 50, and various transmission shafts.

Before ordering a pulley, check its position in the exploded parts diagram and its mounting system.

Serrated Infeed Roller and Outfeed Roller for Bernardo PT260

The Bernardo PT260 feed rollers move timber through the machine during thicknessing operations.

Their condition is important for maintaining consistent feeding and reducing workpiece movement problems.

We offer several types of rollers:

• Serrated infeed roller, designed to grip and feed timber.

• Smooth outfeed roller, helping guide the workpiece after it passes through the cutterblock.

• Serrated outfeed roller, depending on the machine configuration and part reference.

A worn or damaged roller may cause irregular feeding, slipping or unwanted marks on the timber.

However, feed problems may also be caused by a sprocket, chain or another transmission component.

It is therefore advisable to inspect the entire feeding mechanism before replacing a roller.

Chain, Sprocket and Thicknessing Table Height Adjustment Mechanism

The Bernardo PT260 thicknessing table uses a mechanism that allows its height to be adjusted according to the required timber thickness.

This system includes several mechanical components that may need replacing after extended use.

We offer:

• A 51-link chain, corresponding to position 82.

• A handwheel sprocket, position 89.

• A table chain sprocket, position 79.

• A drive sprocket, position 65.

• A height adjustment handwheel, position 96.

• A complete handwheel for the table raising and lowering mechanism.

A loose chain, damaged sprocket or faulty handwheel may make height adjustment difficult or irregular.

Before replacing these components, it is important to check that the mechanism is not obstructed by wood shavings, incorrect adjustment or another damaged part.

Infeed Table, Outfeed Table and Thicknessing Table for Bernardo PT260

The surface planing and thicknessing tables are essential for producing flat surfaces and accurately machined timber.

They provide reference surfaces and must remain clean, correctly adjusted and in good condition.

Our catalogue includes:

• A surface planer infeed table, position 35.

• A surface planer outfeed table.

• A replacement thicknessing table.

A deformed or severely damaged table may affect machining accuracy.

However, surface planing defects may also result from incorrectly adjusted tables, improperly positioned knives or unsuitable operating techniques.

Before replacing a table, it is advisable to check the machine's adjustments and general condition.

Planer Fence and Fixing Accessories for Bernardo PT260

The Bernardo PT260 planer fence guides timber during edge jointing operations.

A correctly secured and adjusted fence helps achieve accurate results.

We offer several components for this mechanism:

• Planer fence support.

• Hexagonal-base adjustable clamping lever, positions 167 or 175.

• M10 cylindrical-base adjustable clamping lever.

• Various fence fixing and locking components.

A damaged clamping lever may prevent the fence from being securely locked in position.

Before replacing the entire fence, it may therefore be worth checking whether only a fixing component is defective.

Integrated Chip Extraction Spare Parts for Bernardo PT260

The Bernardo PT260 features an integrated extraction system designed to help remove wood shavings produced during surface planing and thicknessing.

This system includes several components that can be replaced individually.

We offer:

• A cotton filter bag.

• An extraction fan impeller, position 120.

• A fan shaft, position 121.

• An extraction housing.

• A chip discharge housing.

• A dust collection bag connector.

• The 520J3 extraction fan belt.

An extraction problem may be caused by a broken belt, damaged fan, blocked duct or deteriorated filter bag.

It is therefore important to inspect the entire extraction system before ordering a replacement part.

Efficient chip removal helps prevent wood shavings from accumulating inside the machine's mechanisms.

Planer Knives, Knife Clamping Wedges and Fixing Screws

The condition of the planer knives plays an important role in cutting quality and the load placed on the motor.

Blunt knives may cause torn wood fibres, poor surface finish and increased cutting resistance.

We also offer components used to secure the knives, including:

• A 260 mm planer knife clamping wedge, sold individually without screws.

• Planer knife locking screws.

• Various knife adjustment accessories, depending on the cutterblock specifications.

It is essential to respect the dimensions and fixing systems specified by the manufacturer.

An incorrectly positioned or improperly secured planer knife can present a serious safety risk during operation.

Bridge Guard and Safety Devices for Bernardo PT260

The Bernardo PT260 bridge guard covers the unused section of the cutterblock during surface planing operations.

We also offer various protective components, including a knife guard, position 45, and other parts associated with cutterblock protection.

These components help reduce the risk of contact with rotating cutting tools.

A broken, missing or incorrectly functioning guard must be repaired or replaced before the machine is used again.

Safety devices must never be removed or bypassed.

Spare Parts Compatible with Holzmann HOB260ABS and Other Models

Many Bernardo PT260 spare parts are also offered for the Holzmann HOB260ABS.

Depending on the reference, certain components may also be compatible with:

• Bernardo PT260S.

• Bernardo PT305D and PT305DS.

• Holzmann HOB305ABS.

• Holzmann HOB305ABSSMW2.

• Selected Kity, Scheppach and Woodster models.

However, it is important to distinguish between different machine versions, particularly electrical configurations and manufacturing revisions.

A component compatible with the Bernardo PT260 is not automatically suitable for every other machine listed above.

To avoid mistakes, always consult the compatibility information provided on each individual product page.

How to Maintain Your Bernardo PT260 Planer Thicknesser

Regular maintenance helps preserve the performance of your Bernardo PT260 planer thicknesser and reduce the risk of breakdowns.

We recommend the following checks:

• Inspect all three transmission belts regularly and check their condition.

• Clean the surface planing and thicknessing tables to remove resin deposits.

• Check the planer knives and sharpen or replace them when necessary.

• Inspect the feed rollers to maintain regular timber feeding.

• Check pulleys, chains and sprockets for abnormal wear.

• Clean the integrated extraction system and check that the fan operates correctly.

• Inspect guards and safety devices before every use.

• Respect the machine's operating capacity by adjusting the depth of cut to the width and hardness of the timber.

A loose belt may cause power loss, while an excessively tight belt may place unnecessary stress on the bearings.

Similarly, incorrectly adjusted tables or knives may affect surface planing quality even when no component is defective.

Before carrying out any cleaning, maintenance or spare part replacement, the machine must be switched off and completely disconnected from the electrical supply.

All work must be performed in accordance with the manufacturer's recommendations.

How to Choose the Correct Bernardo PT260 Spare Part

When ordering a replacement part for the Bernardo PT260, it is essential to identify the required component accurately.

We recommend checking the position number shown in your machine's exploded parts diagram and comparing it with the information provided on the product page.

For belts, check their markings and dimensions.

For pulleys, shafts, sprockets and rollers, verify the references and mounting systems.

For electrical components, make sure that the specifications match those of your machine.

These checks are particularly important when several versions or generations of the same model exist.

Find Bernardo PT260 Spare Parts at Probois Machinoutils

At Probois Machinoutils, we offer a comprehensive range of drive belts and spare parts for the Bernardo PT260 planer thicknesser, helping you maintain and repair your woodworking machine.

Our catalogue includes the 940J5, 520J3 and 695 x 10 mm belts, as well as pulleys, feed rollers, chains, sprockets, 230 V motors, capacitors, switches, tables, fences, guards and integrated extraction components.

Certain references are also compatible with Holzmann HOB260ABS planer thicknessers and other Bernardo or Holzmann models, depending on their configuration.

Our range is regularly updated according to product availability and customer requirements.

If you are looking for a component that is not currently listed in this category, please contact us with the exact machine model and, whenever possible, the part position number shown in its exploded parts diagram.

Discover our selection of Bernardo PT260 drive belts and spare parts to repair your planer thicknesser, replace worn components and extend the service life of your woodworking machine.
