Locking screw for M6 irons with a square head on the planer jointer shaft of different brands (former ref Scheppach 3302636043)
Planer flywheel for planer jointer Bernardo ADM260, Leman RAD250 and Jean l'ébéniste ML392
Blade clamp in 250 mm for planer thicknesser - Sold individually with the screws
Single phase Motor for planer thicknesser 2000W Jean l'ébébniste ML392, Bernardo ADM260, Leman RAD250
Mechanical planing height indicator diameter 18 mm
Chain for thicknesser Kity 2636, Scheppach Plana 3.0c and Plana 3.1c
M10 female indexable handle for clamping the guide of various planer/jointer machines according to the list below.
Hinge part no. 15 compatible with several Bernardo and Holzmann planer thicknessers. Ideal replacement spare part.
Replacement pressing roller (Ref. No. 82 or No. 313) compatible with ADM260, AD260S, ADH250P and CWM260F. Ensures uniform pressure, excellent wear resistance, and quick installation for optimal machine performance.
Replacement bush (sleeve) ref. No. 573 and No. 311 compatible with ADM260, AD260S, ADH250P, PT310 and FS310PS. Durable part ensuring precise guidance, reduced friction, and long service life.
Replacement feed roller (Ref. No. 81 or No. 314) compatible with ADM260, AD260S, ADH250P and CWM260F. Ensures uniform pressure, excellent wear resistance, and quick installation for optimal machine performance.
Compression spring Ø17 x 54 mm, wire Ø3 mm, compatible with several Bernardo, Holzprofi and Jean l'Ébéniste planer thicknessers. Part No. 84 on ADM/PT models and Item No. 325 on FS310P and FS310PS models.

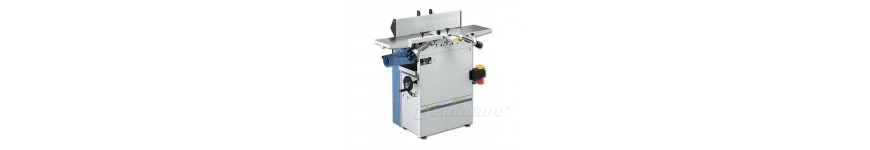

The Bernardo ADM260 planer thicknesser is a woodworking machine designed to perform two essential operations: surface planing and thicknessing. It allows woodworkers to flatten timber faces, straighten edges and produce workpieces with a consistent thickness.
Like any woodworking machine, it contains mechanical and electrical components that are subject to wear. Over time, a feed roller may become less effective, a capacitor may fail or a component of the height adjustment mechanism may require replacement.
At Probois Machinoutils, we offer a selection of spare parts for the Bernardo ADM260 planer thicknesser, helping you maintain your equipment, identify defective components and carry out the necessary repairs.
Our catalogue includes a 230 V single-phase motor, a thicknessing table height adjustment handwheel, feed and pressure rollers, planer knife clamping wedges and screws, as well as various mechanical components and maintenance accessories.
Certain references are also suitable for other planer thicknessers manufactured by Bernardo, Jean l'ébéniste, Holzmann or Scheppach. It is therefore essential to check the compatibility information for each individual product before ordering.
The electric motor for Bernardo ADM260 provides the power required to operate the machine.
We offer a replacement 230 V single-phase motor, also intended for the Jean l'ébéniste ML392 planer thicknesser, according to the product compatibility information.
A defective motor may cause several symptoms:
The machine no longer starts.
The motor produces an unusual humming noise.
The motor overheats.
The machine stops during operation.
The motor can no longer drive the mechanism correctly.
However, these symptoms do not necessarily mean that the motor needs replacing.
A defective capacitor, unsuitable electrical supply, faulty switch or mechanical blockage may produce similar symptoms.
Before ordering a replacement motor for Bernardo ADM260, it is therefore advisable to inspect the associated electrical and mechanical components.
The replacement motor must match the specifications of the original installation.
The motor capacitor is an important component in the operation of single-phase electric motors.
Our catalogue includes a 35 µF 450 V motor run capacitor with connecting wires, intended for applications compatible with its electrical specifications.
A defective capacitor may prevent the motor from starting or cause irregular operation.
Possible symptoms include a motor that hums without starting, difficulty starting or unusual overheating.
Before replacing a capacitor, it is essential to check:
Its capacitance, expressed in microfarads (µF).
Its rated voltage.
Its operating type.
Its dimensions.
Its connection system.
A 35 µF capacitor must not be fitted to a Bernardo ADM260 unless it has been confirmed that it matches the original component.
Electrical maintenance must be performed with the machine disconnected from the power supply. Remember that capacitors can retain an electrical charge even after the power has been switched off.
The height adjustment handwheel for Bernardo ADM260 operates the mechanism used to raise and lower the thicknessing table.
This adjustment is essential for determining the final thickness of timber workpieces.
We offer a replacement handwheel intended particularly for the following machines:
Bernardo ADM260.
Leman RAD250.
Jean l'ébéniste ML392.
A damaged handwheel may make height adjustment difficult or prevent the mechanism from being operated correctly.
Before replacing it, it is also advisable to inspect the shaft, fixings and associated mechanical components.
Smooth and accurate height adjustment helps achieve a consistent thickness across machined workpieces.
The mechanical thicknessing height indicator makes it easier to read the thicknessing table settings.
We offer a model intended for various Bernardo, Holzmann and Jean l'ébéniste planer thicknessers, with a mounting arrangement designed for an 18 mm diameter handwheel, according to the product specifications.
This accessory can make adjustments more convenient and improve repeatability during thicknessing operations.
However, it is still important to check the actual thickness of the workpieces using a vernier caliper or another suitable measuring instrument.
Before ordering, check the handwheel dimensions and compatibility with your machine's adjustment system.
The planer thicknesser feed roller plays an essential role during thicknessing operations.
It moves timber through the machine and helps maintain a consistent feed rate.
Our catalogue includes a replacement feed roller, corresponding to position 81 or 314 in the exploded parts diagram, depending on the machine model.
This component is particularly suitable for:
Bernardo ADM260.
Bernardo AD260S.
Bernardo ADH250P.
Bernardo CWM260F.
A worn or damaged feed roller may cause feeding difficulties, jerky movement or irregular timber movement.
However, a feeding problem may also be caused by a chain, sprocket or incorrect adjustment.
Before replacing the roller, it is advisable to inspect the entire feed mechanism.
The pressure roller helps hold the timber in position as it passes through the thicknessing mechanism.
It contributes to workpiece stability and the proper operation of the feeding system.
We offer a replacement pressure roller, corresponding to position 82 or 313, depending on the machine.
It is particularly suitable for:
Bernardo ADM260.
Bernardo AD260S.
Bernardo ADH250P.
Bernardo CWM260F.
A damaged pressure roller may interfere with timber feeding and cause irregularities during thicknessing.
It is also advisable to inspect the springs and other components responsible for maintaining pressure on the workpiece.
Planer knife clamping wedges are designed to secure planer knives in their seats within the cutterblock.
Our catalogue includes a 250 mm clamping wedge, sold individually with its screws, for compatible cutterblock assemblies.
This component plays a direct role in holding the knives securely while the cutterblock is rotating.
A deformed, cracked or damaged clamping wedge must be replaced.
Before ordering, it is important to compare its length, profile and fastening system with the original component.
A planer knife clamping wedge must never be replaced with an approximately similar component, as secure knife retention is essential for safe operation.
We also offer M6 square-head planer knife clamping screws, used on various compatible cutterblock assemblies.
These screws contribute to securing the planer knives according to the cutterblock design.
A screw with a damaged head, worn threads or visible deformation should be replaced.
Before ordering, check the diameter, length, head shape and compatibility with your cutterblock.
The presence of these screws in this category does not mean that they are suitable for every version of the Bernardo ADM260.
Planer knife springs may be used in knife positioning mechanisms, depending on the cutterblock design.
Our catalogue includes a 5.8 mm diameter planer knife spring, intended for compatible assemblies.
A broken, compressed or weakened spring may interfere with the correct positioning of the planer knife.
Before replacing it, it is essential to compare its dimensions and installation position with the original spring.
Knife adjustment and tightening must always be carried out according to the manufacturer's instructions.
Mechanical bushes and sleeves provide guidance and support in various machine mechanisms.
We offer a replacement bush corresponding to positions 573 and 311, depending on the machine model.
It is particularly suitable for:
Bernardo ADM260.
Bernardo AD260S.
Bernardo ADH250P.
Bernardo PT310.
Bernardo FS310PS.
A worn bush may cause excessive play, abnormal friction or reduced mechanical precision.
To identify the correct component, consult your machine's exploded parts diagram and check the position number and dimensions of the original part.
Our catalogue includes a compression spring with a 17 mm diameter, 54 mm length and 3 mm wire diameter.
Depending on the model, this component corresponds particularly to position 84 on certain ADM and PT machines, or position 325 on Bernardo FS310P and FS310PS.
A compression spring may be used to apply pressure or provide a return force within a mechanism.
When broken, deformed or weakened, it may interfere with the operation of the associated assembly.
It is important to match the dimensions and mechanical specifications of the original spring.
The M10 female indexing handle is intended for securing the fence on certain compatible planer thicknessers.
Its indexing mechanism makes it easier to operate when space is limited.
A broken handle or one with damaged threads may prevent the fence from being locked securely.
Before ordering, check the M10 female thread, dimensions and fastening arrangement of your machine.
A properly secured fence is essential for accurate and safe surface planing.
We offer a replacement hinge corresponding to position 15, intended for several compatible Bernardo and Holzmann planer thicknessers.
Hinges allow certain movable machine components to pivot.
A damaged hinge may make these components difficult to operate or cause incorrect positioning.
Before replacing this part, check its position number and compatibility with the exact version of your machine.
This category also includes a 43-link transmission chain, offered for the Kity 2636, Scheppach Plana 3.0c and Scheppach Plana 3.1c machines.
This reference must not be assumed to be compatible with the Bernardo ADM260 without technical verification.
Transmission chains may differ in length, pitch and configuration depending on the machine.
To replace a chain, it is necessary to identify the original reference and the mechanism concerned.
Regular maintenance helps preserve the performance of your Bernardo ADM260 and reduce the risk of breakdowns.
We recommend the following checks:
Inspect the condition of the planer knives and their fixings.
Check the feed and pressure rollers to maintain consistent timber feeding.
Clean the surface planing and thicknessing tables to remove wood shavings and resin deposits.
Inspect the height adjustment mechanisms and their fixings.
Listen for unusual noises coming from the motor or transmission.
Check the planer fence fastening before use.
Maintain effective dust extraction to ensure efficient chip removal.
Adjust the depth of cut according to the width and hardness of the timber.
A lack of power does not necessarily mean that the motor is defective. It may also be caused by blunt planer knives, an excessive depth of cut or a transmission problem.
Similarly, poor timber feeding may originate from a roller, spring, chain or incorrect adjustment.
All maintenance must be performed after the machine has come to a complete stop and has been disconnected from the electrical supply.
When ordering a spare part for Bernardo ADM260, it is advisable to check several details:
The exact model indicated on the machine's identification plate.
The electrical version of the machine.
The part position number in the exploded diagram.
The dimensions of the original component.
The compatibility information provided on the product page.
For electrical components, check the motor or capacitor specifications.
For rollers, verify their position and reference number.
For planer knife fastening components, carefully compare the dimensions and shape of the original parts.
These checks help prevent ordering errors and ensure that you select a suitable replacement part for your machine.
At Probois Machinoutils, we offer a selection of spare parts for the Bernardo ADM260 planer thicknesser, helping you maintain and repair your woodworking equipment.
Our catalogue includes a 230 V single-phase motor, a height adjustment handwheel, feed and pressure rollers, mechanical bushes, springs, as well as various fastening components and maintenance accessories.
Our range is regularly updated according to product availability and customer requirements.
If you are looking for a component that is not currently listed in this category, please contact us with the exact model of your machine and, whenever possible, the part position number shown in its exploded diagram.
Discover our selection of Bernardo ADM260 spare parts to replace worn components, maintain your planer thicknesser and extend the service life of your woodworking machine.
