Belt POLY V for spindle moulder Holzmann FS160L
Interchangeable shaft mark 65 for router tools to be mounted on Holzmann FS160L router, Bernardo T500PF and Jean l'ébéniste MX5108
Interchangeable router shaft for router bit collet
Overmolded roller allowing the sliding of the sawing or routing carriage on Kity and Scheppach, Bernardo, Jean l'ébéniste machines
M16 clamping nut for spindle moulder shafts. Designed to secure cutter blocks, spindle rings and accessories fitted to the spindle. Suitable for different brands and models of spindle moulders equipped with a compatible M16 thread.
M16 × 55 mm fixing bolt for Ø30 mm spindle moulder shafts. This hex head bolt is used to securely clamp and hold the cutter block, spindle rings and other tooling components mounted on the spindle.

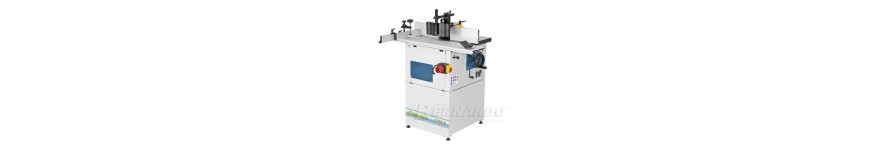

The Bernardo T500PF spindle moulder is a versatile woodworking machine designed for a wide range of shaping, profiling, grooving and moulding operations. Thanks to its compact construction, interchangeable spindle system and aluminium sliding carriage, it is a practical choice for woodworking enthusiasts, craftsmen and small joinery workshops.
Like all woodworking machinery, the Bernardo T500PF contains several mechanical components exposed to considerable forces during operation. Drive belts, interchangeable spindles, clamping systems and carriage guiding components may gradually wear out or require replacement.
At Probois Machinoutils, we offer a selection of spare parts for the Bernardo T500PF spindle moulder to help you maintain, repair and extend the service life of your woodworking machine.
In this category, you will find the Poly-V 508J5 drive belt, interchangeable spindle shafts, a sliding carriage roller, as well as M16 clamping nuts and fixing bolts.
These components are involved in several essential machine functions, including motor power transmission, secure cutter mounting, sliding carriage guidance and the fastening of accessories onto the spindle.
Replacing worn or damaged components with suitable spare parts helps maintain the original operating characteristics of the machine.
The Bernardo T500PF is a woodworking spindle moulder equipped with an interchangeable 30 mm diameter spindle, allowing the use of a wide variety of compatible spindle moulder cutter blocks.
Its design also allows a second interchangeable spindle to be installed for router cutters with cylindrical shanks.
The machine can therefore accommodate suitable collets for router cutters with 6, 8 and 12 mm shanks.
This versatility makes it possible to carry out different woodworking operations using a single machine.
The Bernardo T500PF features a cast iron worktable measuring 600 × 400 mm, providing a stable supporting surface for wooden workpieces.
It is also equipped with an aluminium sliding carriage measuring 1000 × 215 mm, which facilitates workpiece guidance during certain machining operations.
Its transmission system offers four spindle speeds, ranging from 1400 to 8650 rpm, allowing the rotational speed to be adapted to the cutter and the work being performed.
The motor delivers 1500 W of continuous output power in S1 operation and 2100 W in S6 operation.
The machine is available in single-phase 230 V and three-phase 400 V versions.
A 100 mm dust extraction outlet allows a suitable wood dust extractor to be connected, helping remove chips and dust generated during machining.
To maintain the performance of this machine, it is important to regularly inspect its mechanical components and replace defective parts when necessary.
The Poly-V 508J5 drive belt for the Bernardo T500PF is an essential transmission component.
Its function is to transmit the motor's rotational movement to the spindle drive mechanism.
Unlike a conventional V-belt, a Poly-V belt features several longitudinal ribs designed to engage with matching pulleys.
This construction provides smooth power transmission while maintaining the flexibility required for reliable operation.
The 508J5 drive belt has a specific profile that must match the characteristics of the machine's transmission system.
Over time, a drive belt may gradually deteriorate due to mechanical loads, speed changes and repeated use.
A worn belt can cause slipping, unusual noises or reduced transmission efficiency.
In some cases, it may also develop cracks or eventually break.
Our catalogue includes a Poly-V 508J5 belt compatible with the Bernardo T500PF spindle moulder, also used on certain Holzmann, Kity and Jean l'ébéniste spindle moulder models.
Before ordering, it is essential to check the reference marked on the original belt.
Several symptoms may indicate that the Bernardo T500PF spindle moulder drive belt requires inspection.
A noticeable reduction in spindle speed during machining may be associated with a transmission problem.
Unusual noises coming from the pulley compartment may also indicate a damaged or incorrectly positioned belt.
Visible cracks, damaged ribs or significant signs of wear are additional indications that maintenance may be necessary.
However, these symptoms are not always caused by the belt itself.
A damaged pulley, incorrect alignment or another mechanical problem may produce similar effects.
Before replacing the belt, it is therefore advisable to inspect its condition, the pulleys and the installation arrangement.
The machine must always be disconnected from the electrical supply before any intervention.
After replacement, the belt must be correctly positioned on the pulleys and the transmission system checked in accordance with the manufacturer's recommendations.
One of the distinctive features of the Bernardo T500PF is its interchangeable spindle system.
This design allows the machine to be adapted to different types of woodworking cutters.
The interchangeable spindle, part number 65, is designed to accommodate suitable spindle moulder tools with a 30 mm bore.
It allows compatible profiling cutter blocks, grooving cutters and other spindle moulder accessories to be installed.
This spindle is an important component of the cutting system because it ensures the correct positioning and support of the cutters during rotation.
A damaged, bent or excessively worn spindle can compromise machining accuracy and operator safety.
It is therefore essential to inspect its condition and check for abnormal play.
Our catalogue includes an interchangeable spindle, part 65, for the Bernardo T500PF, also listed for the Holzmann FS160L and Jean l'ébéniste MX5108 spindle moulders.
Before replacing this component, the part number and the original mounting specifications should be carefully checked.
One of the main advantages of the Bernardo T500PF spindle moulder is its ability to use a second interchangeable spindle designed for router cutters.
This interchangeable spindle, part number 66, allows suitable collets to be fitted for compatible router cutters.
The machine can therefore accommodate router cutters with 6, 8 and 12 mm shanks, depending on the collet installed.
This configuration expands the range of possible woodworking operations, including profiling, grooving and finishing.
The router cutter spindle is a specific mechanical component that must be installed correctly.
Incorrect installation or a damaged spindle may cause vibration or compromise cutter retention.
At Probois Machinoutils, we offer an interchangeable spindle, part 66, for the Bernardo T500PF, also compatible with certain Holzmann and Jean l'ébéniste machines.
It is essential to check the compatibility of the spindle, collet and router cutter before use.
The sliding carriage of the Bernardo T500PF helps guide wooden workpieces during certain spindle moulding operations.
Its movement must remain smooth and consistent to maintain good machining accuracy.
The guiding system relies on several mechanical components that allow the carriage to move correctly.
Among these components, the moulded sliding carriage roller contributes to the smooth movement of the assembly.
Over time, a roller may show signs of wear, become deformed or lose its original rolling characteristics.
A damaged roller can cause irregular carriage movement, resistance during sliding or excessive play.
Our catalogue includes a replacement moulded roller for Bernardo spindle moulder sliding carriages, also used on certain Kity, Scheppach and Jean l'ébéniste machines.
Before ordering, it is important to check the roller dimensions and compatibility with the machine's original assembly.
Replacing a worn roller may help restore smooth carriage movement, provided the other guiding components remain in good condition.
The M16 clamping nut for a spindle moulder shaft is a mechanical component used to secure cutters and accessories installed on the spindle.
It contributes to the clamping of cutter blocks, spacer rings and other compatible mounting components.
This type of component must have threads in excellent condition to ensure correct tightening according to the manufacturer's specifications.
A nut with damaged threads or visible deformation must not be reused.
Incorrect tightening may compromise cutter retention and create significant safety risks during machine operation.
Our catalogue includes an M16 clamping nut for spindle moulder shafts, suitable for machines equipped with a compatible threaded mounting system.
Before ordering, it is essential to check the diameter, thread pitch and characteristics of the original nut.
The M16 × 55 mm fixing bolt for a 30 mm spindle moulder shaft is a fastening component used in the cutter clamping system.
This hexagonal-head bolt contributes to securing cutter blocks, spacer rings and other accessories installed on the spindle.
It features an M16 thread and a length of 55 mm.
Like any mechanical fastening component, it must be maintained in good condition.
A damaged bolt head, worn threads or visible deformation may prevent correct installation.
It is important never to replace this bolt with an approximate alternative.
Its length, thread and other characteristics must match the specifications required for the original assembly.
Before any intervention, the machine must be completely stopped and disconnected from the electrical supply.
Tightening must be performed using suitable tools and in accordance with the manufacturer's instructions.
Before ordering a spare part for the Bernardo T500PF spindle moulder, we recommend checking the exact model of the machine.
The Bernardo T500PF is available in single-phase 230 V and three-phase 400 V versions.
Although many mechanical components are shared between these versions, some parts may differ depending on the machine configuration.
The identification plate is the first item to check.
It provides information about the machine model and its technical specifications.
The Bernardo T500PF exploded parts diagram is also extremely useful for identifying replacement components and their reference numbers.
For interchangeable spindles, parts 65 and 66 allow the two different mounting systems to be distinguished.
For the drive belt, the 508J5 reference should be compared with the original belt.
For M16 clamping components, it is essential to verify the dimensions and thread specifications.
A direct comparison with the removed component can also help confirm compatibility.
This method reduces ordering errors and helps ensure that the replacement part is suitable for the machine.
Different mechanical problems may occur during the service life of a Bernardo T500PF spindle moulder.
A reduction in spindle speed during machining may result from a worn belt, a transmission problem or excessive cutting resistance.
Unusual vibrations may be caused by an incorrectly mounted cutter, a damaged spindle or a clamping defect.
Irregular sliding carriage movement may result from a worn roller, dirty guide surfaces or damaged mechanical components.
Difficulties installing a cutter block may also indicate a problem with the spindle, spacer rings or fastening components.
In every case, it is important to identify the actual cause of the malfunction before replacing a part.
A machine with defective cutter clamping or a mechanical fault that could compromise safety must not be used until the problem has been resolved.
Regular maintenance helps preserve the performance and service life of the Bernardo T500PF woodworking spindle moulder.
After each use, it is advisable to clean the worktable and remove accumulated wood chips from accessible areas.
The sliding carriage should be kept clean to ensure smooth and consistent movement.
Fences, clamping components and adjustment mechanisms should be inspected periodically.
The drive belt should also be checked for cracks, damaged ribs or excessive wear.
Interchangeable spindles must remain clean and free from damage that could affect cutter installation.
It is also important to inspect spacer rings, fixing bolts and clamping nuts.
Using a wood dust extractor connected to the 100 mm extraction outlet helps reduce the accumulation of wood dust and chips inside the machine.
Before each use, guards and guiding devices must be correctly installed and adjusted.
All maintenance operations must be carried out with the machine disconnected from the electrical supply.
Replacing a worn drive belt, damaged interchangeable spindle or defective clamping component may help extend the service life of a Bernardo T500PF spindle moulder.
When the machine remains in good overall condition, a suitable repair is often more economical than replacing the entire machine.
This approach also helps reduce waste and avoid the premature replacement of woodworking equipment.
However, it is essential to select compatible spare parts and follow the manufacturer's instructions.
Components involved in securing cutting tools require particular attention.
Operator safety must always remain the priority.
At Probois Machinoutils, we offer a selection of spare parts for the Bernardo T500PF spindle moulder to help maintain and repair your woodworking machine.
In this category, you will find:
The Poly-V 508J5 drive belt for the transmission system.
The interchangeable spindle, part 65, for spindle moulder cutters.
The interchangeable spindle, part 66, for router cutter collets.
The moulded sliding carriage roller.
The M16 clamping nut for the spindle shaft.
The M16 × 55 mm fixing bolt for a 30 mm spindle moulder shaft.
These components allow maintenance and repair work to be carried out on the machine's transmission, guiding and fastening systems.
Before ordering, we recommend checking the exact machine reference and comparing the required component with the corresponding exploded parts diagram.
If you are looking for another component, our customer service team can help identify it using the machine model, identification plate or reference number shown in the technical diagram, subject to availability from the manufacturer.
Discover spare parts for the Bernardo T500PF spindle moulder at Probois Machinoutils to maintain your machine, replace defective components and extend the service life of your woodworking equipment.
