M8x10 MM blade locking screw with hexagon head and 12 mm wrench for Holzmann and Bernardo thicknesser, planer and woodworking combination
704 mm Chain for Holzmann and Bernardo Jointed Planer and Combination Wood as listed below
608 mm chain for Holzmann and Bernardo planer and jointer as listed below
Trapezoidal belt for jointer, planer and woodworking combination according to the list below
Cover plate for Bernardo ADH250 and CWM250R thicknesser planer
Rod operating the flywheel of the circular saw Holzmann K5-260, Bernardo CWM250 and Bernardo FK200R
Turning pole for the circular saw on Holzmann K5-260, Bernardo CWM250 or FK200R

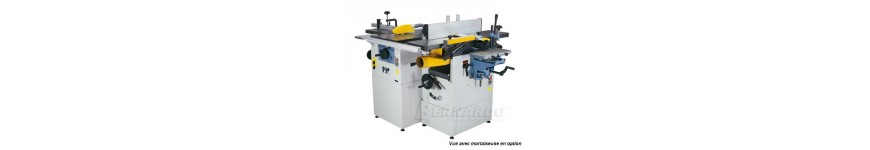

Discover our selection of spare parts for Bernardo CWM250R and CWM250TOP combination woodworking machines, designed to help maintain, repair and restore these multifunctional woodworking machines.
The Bernardo CWM250R and CWM250TOP combination machines allow several woodworking operations to be performed using a single machine. They feature various transmission, adjustment and safety mechanisms that must be kept in good working condition.
Over time and with repeated use, certain components may wear out or become damaged. Drive belts, transmission chains, capacitors, fixing screws, protective guards and mechanical components are among the parts that may eventually require replacement.
At Probois Machinoutils, we offer a selection of replacement parts to help extend the service life of your Bernardo combination machine and repair it without necessarily replacing the entire machine.
Some references may also be suitable for other Bernardo or Holzmann woodworking machines. However, compatibility must always be checked individually for the exact model concerned.
Drive belts for Bernardo CWM250R and CWM250TOP transmit power between the motor and the various mechanical components of the machine.
Depending on their position, they drive certain mechanisms involved in sawing, surface planing or thicknessing operations.
Our selection includes several types of transmission belts.
406J5 Poly-V Drive Belt
The 406J5 Poly-V belt is used for circular saw transmission systems on various combination woodworking machines.
It is listed for certain Bernardo CWM250 machines as well as several Kity and Scheppach models, according to the compatibility information provided on the product page.
Its ribbed profile allows efficient power transmission between suitable pulleys.
1080 mm SJD V-Belt
The 1080 mm SJD V-belt is intended for certain planer thicknessers and combination woodworking machines.
It transmits mechanical power between components designed to operate with this type of belt.
Before ordering, it is important to check the reference printed on the original belt, its profile and its dimensions.
A worn or loose belt may cause power transmission problems, unusual noises or irregular machine operation.
Transmission chains for combination woodworking machines transfer movement between mechanical components, particularly those involved in timber feeding and drive mechanisms.
Our category includes several chain references intended for certain Bernardo and Holzmann machines.
Available references include:
704 mm transmission chain.
608 mm transmission chain.
These two references have different dimensions and must not be considered interchangeable.
A loose, damaged or excessively worn chain may cause irregular operation of the mechanism concerned.
It may also produce jerky movements, mechanical noises or feeding difficulties.
Before replacing a chain, inspect its condition, the sprockets and the alignment of the transmission system.
To choose the correct reference, consult the compatibility information on the product page and compare its specifications with the original component.
The motor capacitor is an electrical component that may need replacing during the service life of a woodworking machine.
Our catalogue includes a 25 µF – 450 V permanent motor run capacitor with wires, intended for certain woodworking machine applications.
A faulty capacitor may cause various symptoms:
The motor no longer starts correctly.
The motor hums but fails to rotate.
Starting becomes difficult.
The motor operates irregularly.
The capacitor shows visible swelling or damage.
These symptoms may also have other causes. A proper diagnosis is therefore important before replacing the component.
Important: a 25 µF capacitor is not automatically compatible with every Bernardo CWM250R or CWM250TOP machine.
Always check the capacitance, rated voltage, capacitor type and specifications of the original component.
Electrical work must be carried out by a qualified person after disconnecting the machine from the power supply and ensuring that electrical components are safe to handle.
Planer blade locking screws secure the planer knives in their clamping system, depending on the design of the cutterblock.
Our selection includes an M8 x 10 mm hex-head locking screw, intended for certain Bernardo and Holzmann machines.
These screws play an essential role in securely holding the cutting tools.
A screw with damaged threads, a deformed head or insufficient clamping ability must be replaced.
It is essential to use a screw with exactly the characteristics specified by the manufacturer.
Planer knife fixing screws must never be replaced with approximately similar screws.
Incorrectly secured planer knives can create a serious safety hazard during machine operation.
After working on the cutterblock, the installation and tightening of the knives must be checked according to the manufacturer's instructions.
The planer cutterblock guard for Bernardo CWM250R contributes to operator safety during surface planing operations.
It covers the section of the cutterblock that should not remain exposed during machining.
Our catalogue includes a planer cutterblock guard for Bernardo ADH250 and CWM250R combination machines.
This guard must be correctly installed and adjusted according to the work being carried out.
A broken, bent, incomplete or incorrectly secured guard must be replaced before the machine is used again.
Operating a surface planer without a suitable cutterblock guard is dangerous.
Before ordering, check your machine model and the compatibility information provided on the guard's product page.
The adjustment mechanisms of the Bernardo CWM250 combination machine's circular saw allow the cutting components to be positioned correctly.
Some of these mechanisms include threaded rods, nuts and control components connected to adjustment handwheels.
Our selection includes:
An adjustment handwheel rod for the circular saw.
A nut for the circular saw adjustment rod.
Depending on the reference concerned, these components are listed for certain Bernardo CWM250, Bernardo FK200R and Holzmann K5-260 combination machines, as well as some Bernardo TK200R table saws.
A bent rod, damaged thread or worn nut may cause difficult adjustment or excessive mechanical play.
Before replacing a component, inspect the entire adjustment mechanism to identify the actual defective part.
Certain Bernardo CWM250 spare parts may also be suitable for other woodworking machines using similar components.
Our catalogue includes references whose compatibility information may cover:
Bernardo CWM250R and CWM250TOP.
Bernardo ADH250.
Bernardo FK200R.
Bernardo TK200R.
Holzmann K5-260.
Certain Kity and Scheppach combination machines.
This list covers machines associated with different references in the category. It does not mean that every spare part is suitable for all these models.
Dimensions, mounting systems and mechanical configurations may vary from one machine to another.
Always check the compatibility information on each product page before ordering.
Before ordering a replacement part for Bernardo CWM250R or CWM250TOP, it is essential to identify your machine and the required component accurately.
We recommend checking:
The exact model reference of your combination woodworking machine.
The information on its identification plate.
The part number shown in the exploded parts diagram.
The dimensions of the original component.
The references printed on drive belts.
The electrical specifications of capacitors.
The thread types and dimensions of screws, rods and nuts.
Even a small difference in length, profile or mounting arrangement may make a component incompatible.
If you are unsure, compare the original part with the specifications of the proposed replacement.
Several symptoms may indicate that a mechanical or electrical component of your Bernardo combination machine requires inspection or replacement.
A cracked or frayed belt should be replaced before it breaks.
An excessively worn chain may cause irregular operation or transmission problems.
An adjustment mechanism with excessive play should be inspected to identify worn components.
A faulty capacitor may prevent the motor from starting correctly.
Finally, a damaged protective guard or defective planer knife fixing system requires the machine to be taken out of service until it has been repaired.
Identifying the actual cause of a malfunction before replacing a component is essential, as different faults may produce similar symptoms.
Regular maintenance helps preserve the performance and service life of your Bernardo CWM250R or CWM250TOP combination woodworking machine.
Clean accessible mechanisms regularly and remove accumulated sawdust and wood shavings.
Inspect drive belts, chains and transmission components for signs of wear.
Also check the operation of adjustment mechanisms and safety devices.
Mechanical components requiring lubrication should be maintained according to the manufacturer's recommendations.
Before carrying out maintenance, disconnect the machine from the power supply and wait until all rotating components have stopped completely.
Never operate your combination machine with a missing guard, defective safety device or damaged transmission component.
At Probois Machinoutils, we offer a selection of drive belts and spare parts for Bernardo CWM250R and CWM250TOP combination woodworking machines.
Whether you are looking for a Poly-V belt, V-belt, transmission chain, capacitor, planer blade locking screw, cutterblock guard or circular saw adjustment component, browse the available references in this category.
Our range of spare parts may evolve depending on availability and customer requirements.
Cannot find the component needed to repair your machine?
Provide us with the exact model reference of your Bernardo combination machine and, whenever possible, the part number shown in its exploded parts diagram.
This information will help us identify the required component and check whether it can be supplied.
Repairing your Bernardo CWM250R or CWM250TOP with suitable replacement parts can help extend its service life and avoid replacing the entire machine whenever repair is possible.
