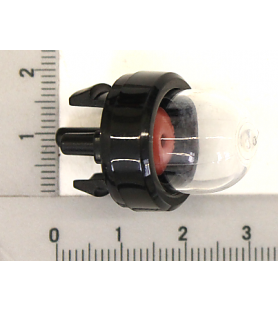

Primer bulb for Scheppach and Woodster chainsaws and brush cutters - Ref. 3910106004
Primer bulb for Scheppach CSP41 and CSP42Pro chainsaw
Primer bulb reference 5911247012 for Scheppach and Parkside PBRM51A1 mower
Prime bulb reference 5911224027 for Scheppach lawn mowers
Carburetor primer pump for Scheppach and Woodster 4 in 1 garden tools and brushcutters as well as Parkside PBK4B3 manufactured by Scheppach only (not compatible with Grizzly)
The primer bulb for Scheppach and Woodster brush cutters is a small but essential component of the fuel system on petrol-powered garden tools. Also known as a fuel primer bulb or primer pump, it helps circulate fuel through the fuel system and prime the carburettor before starting the engine.
This category includes primer bulbs for Scheppach and Woodster brush cutters and 4-in-1 multifunction garden tools. Depending on the part number, some primer bulbs may also be suitable for other machines using a compatible engine or carburettor.
Although a primer bulb is a relatively simple component, a cracked, punctured, hardened or damaged bulb can make the engine difficult or even impossible to start.
The primer bulb is part of the engine's fuel system.
Pressing the bulb several times before starting helps circulate fuel through the system and prime the carburettor. This is particularly useful when starting a cold engine, after the machine has been stored for a long period or when the fuel circuit has emptied.
This component may therefore be searched for under several names, including primer bulb, fuel primer bulb, carburettor primer bulb or primer pump.
Scheppach petrol brush cutters use different engines and carburettors depending on the model, engine capacity and production period.
The appearance of a primer bulb alone is therefore not sufficient to determine compatibility.
Two primer bulbs may look virtually identical while having different dimensions, mounting systems, fuel connections or carburettor compatibility.
Before ordering, identify the exact Scheppach brush cutter model and, whenever possible, check the spare part number shown in the exploded parts diagram for your machine.
Scheppach 4-in-1 multifunction garden tools allow several attachments to be operated from a single petrol engine.
Depending on the model, the machine may be used as a brush cutter, grass trimmer, hedge trimmer or pole pruner.
The primer bulb is located on the engine side and is involved in supplying fuel to the carburettor. If it becomes damaged, all the different functions of the machine may become unusable simply because the engine can no longer be started correctly.
Replacing a defective Scheppach primer bulb can therefore restore the fuel priming system without replacing the complete carburettor when the carburettor itself is still in good working order.
Some Woodster brush cutters and multifunction garden tools use components that are common or similar to those fitted to certain Scheppach machines.
This category therefore also includes primer bulbs for Woodster brush cutters and multifunction garden tools.
Compatibility must nevertheless always be checked for each individual part number. A primer bulb suitable for one Scheppach machine is not automatically compatible with every Woodster model.
The primer bulb is regularly pressed and remains in contact with fuel. Over time, its material can deteriorate, harden or lose its flexibility.
Replacement may be necessary when:
the bulb is cracked or punctured;
the bulb has become hard;
it remains depressed after being pressed;
it no longer fills correctly;
fuel does not appear to circulate;
fuel leaks around the bulb;
the engine has become particularly difficult to prime;
the bulb is deformed or damaged.
A damaged primer bulb should be replaced to restore proper operation of the fuel priming system.
If the primer bulb does not fill with fuel, this does not necessarily mean that the bulb itself is defective.
The problem may also originate elsewhere in the fuel system.
Check in particular:
the condition of the fuel lines;
the fuel line connections;
the fuel filter;
the carburettor;
the fuel system for air leaks;
the condition of the primer bulb.
A cracked, porous, pinched or incorrectly connected fuel line can prevent the carburettor from being primed correctly.
A primer bulb that remains collapsed after being pressed can indicate a fuel circulation problem.
Before automatically replacing the primer bulb, check that the fuel lines are not pinched or blocked and that fuel can circulate normally through the system.
An old primer bulb can also lose its elasticity and no longer return properly to its original shape.
The primer bulb helps with starting, but it is not the only component required for the engine to run.
If your Scheppach or Woodster brush cutter does not start despite pressing the primer bulb several times, another component may be responsible, such as the carburettor, spark plug, fuel filter, air filter, fuel lines, fuel supply or ignition system.
It is therefore advisable to diagnose the fault before replacing several components unnecessarily.
If the primer bulb fills normally and fuel appears to circulate correctly, the starting problem may originate elsewhere in the engine.
When replacing a carburettor primer bulb, take the opportunity to inspect the fuel lines.
With age and prolonged contact with fuel, fuel lines can become hard, brittle or porous.
Even a small air leak can interfere with fuel delivery and make a new primer bulb appear to be faulty.
It is also important to reconnect the fuel lines exactly as originally fitted. Before removing them, note their positions to avoid reversing the connections during reassembly.
In English, primer bulb is the most natural and widely used term for this type of component.
The term refers to the flexible bulb that is pressed manually to prime the fuel system. Primer pump may also be encountered and describes the function of the component rather than its shape.
Other useful terms include:
primer bulb, fuel primer bulb, carburettor primer bulb and primer pump.
For this category, primer bulb should remain the main SEO term.
To find the correct primer bulb for your brush cutter, do not rely solely on the appearance of the component.
First identify the exact model of your machine using the information on its rating plate.
Then, whenever available, consult the exploded parts diagram corresponding to your model and identify the original spare part number.
This method is considerably more reliable than selecting a primer bulb simply because its dimensions or appearance seem similar.
The same manufacturer may use several carburettors and priming systems depending on the machine model and production period.
A Scheppach primer bulb is therefore not automatically compatible with every Scheppach brush cutter.
The same applies to Woodster machines and 4-in-1 multifunction garden tools.
IMPORTANT: BEFORE PURCHASING, always check the list of compatible machines shown on the product page. Where specified, also check the month and year of manufacture or the serial number of your machine.
A brush cutter that has become difficult to start does not necessarily need to be replaced.
When the problem is simply caused by a damaged primer bulb, replacing this small component may restore the fuel priming system and extend the service life of the machine.
In this category, you will find primer bulbs for Scheppach and Woodster brush cutters and 4-in-1 multifunction garden tools, selected according to the different machine models and spare part references.
Identify your machine accurately before ordering to ensure you select the correct primer bulb for your Scheppach or Woodster carburettor and brush cutter.
