Spare parts for Bernardo PKS250P table saw

Spare parts for Bernardo PKS250P table saw - Probois Machinoutils

Active filters

Spare Parts for Bernardo PKS250P Circular Table Saw

The Bernardo PKS250P circular table saw is a woodworking machine designed to perform accurate cutting operations on solid timber and suitable wood-based panels. Thanks to its robust construction, aluminium sliding table and various adjustment mechanisms, it is a practical piece of equipment for woodworking enthusiasts, craftsmen and small workshops.

This circular saw features a cast iron worktable, an adjustable rip fence and a 1300 mm sliding table designed to facilitate crosscutting and rip cutting operations.

The Bernardo PKS250P uses a circular saw blade with a maximum diameter of 254 mm and a 30 mm bore. It offers a maximum cutting depth of 80 mm at 90° and 65 mm at 45°.

Available in single-phase 230 V and three-phase 400 V versions, this machine is designed to perform a variety of woodworking cutting tasks.

Like all woodworking machinery, it contains numerous mechanical components exposed to vibration, cutting forces and repeated handling.

Over time, certain components may show signs of wear, become loose or suffer damage.

At Probois Machinoutils, we offer a selection of spare parts for the Bernardo PKS250P table saw to help you maintain and repair your woodworking machine.

In this category, you will find a replacement handle identified as part number 21 and an M6 × 18 saw blade fixing screw.

These components allow damaged parts to be replaced while maintaining the original operating characteristics of the machine.

Technical Features of the Bernardo PKS250P Table Saw

The Bernardo PKS250P is a circular table saw equipped with a sliding table positioned close to the saw blade, allowing workpieces to be guided during cutting operations.

Its aluminium sliding table measures 1300 × 250 mm and provides a useful travel of 1020 mm.

The main cast iron worktable measures 670 × 310 mm and includes a 670 × 400 mm side extension to increase the supporting surface for workpieces.

The rip fence provides a cutting width of up to 670 mm.

The cutting system uses a 254 mm diameter saw blade with a 30 mm bore, operating at a rotational speed of 4750 rpm.

The maximum cutting depth reaches 80 mm when the blade is positioned at 90° and 65 mm when tilted to 45°.

The machine also features a blade tilt adjustment mechanism, allowing the cutting angle to be adapted to different woodworking applications.

Its motor delivers a continuous output power of 2.2 kW in S1 operation and a power rating of 3 kW in S6 operation.

A 100 mm dust extraction connection allows a suitable wood dust extractor to be connected to remove sawdust produced during cutting.

These features make the Bernardo PKS250P table saw a versatile machine for common woodworking tasks.

To preserve its performance, it is important to inspect the mechanisms regularly and replace defective components when necessary.

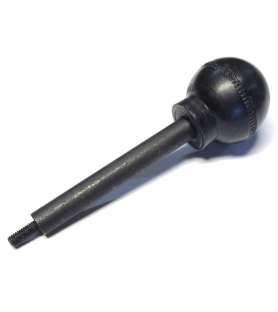

Replacement Handle Part 21 for Bernardo PKS250P

The replacement handle part 21 for the Bernardo PKS250P table saw is a spare component designed to replace the corresponding handle fitted to the machine.

Handles are among the components regularly operated during machine use and adjustment procedures.

Over time, a handle may deteriorate due to repeated handling, accidental impact or excessive force.

A cracked, broken or incorrectly secured handle may become difficult to use.

In some cases, it may also prevent the operator from correctly operating the mechanism to which it is attached.

Our catalogue includes a replacement handle for the Bernardo PKS250P, identified as part 21.

This identification number makes it easier to locate the component in the machine's exploded parts diagram.

Before ordering, we recommend comparing the required component with the product photograph and checking its position in the assembly diagram.

Replacing a damaged handle can help restore normal operation of the associated mechanism, provided the other components remain in good condition.

It is also advisable to inspect the fastening system to make sure the problem does not originate from another mechanical part.

When Should You Replace a Handle on a Bernardo PKS250P?

Several situations may require replacing a Bernardo PKS250P table saw handle.

A handle may develop visible cracks, become partially broken or no longer provide a secure grip.

It may also show excessive play around its mounting point.

In certain cases, the associated adjustment mechanism may become difficult to operate.

It is then important to determine whether the problem actually comes from the handle or from a mechanical fault behind it.

A broken handle should not be repaired using an improvised solution if doing so could compromise reliable operation.

Replacing it with a suitable spare part is generally the most appropriate solution.

Before carrying out any work, the machine must be switched off and disconnected from its electrical supply.

Once the new handle has been installed, its fastening and the correct operation of the associated mechanism should be checked in accordance with the manufacturer's instructions.

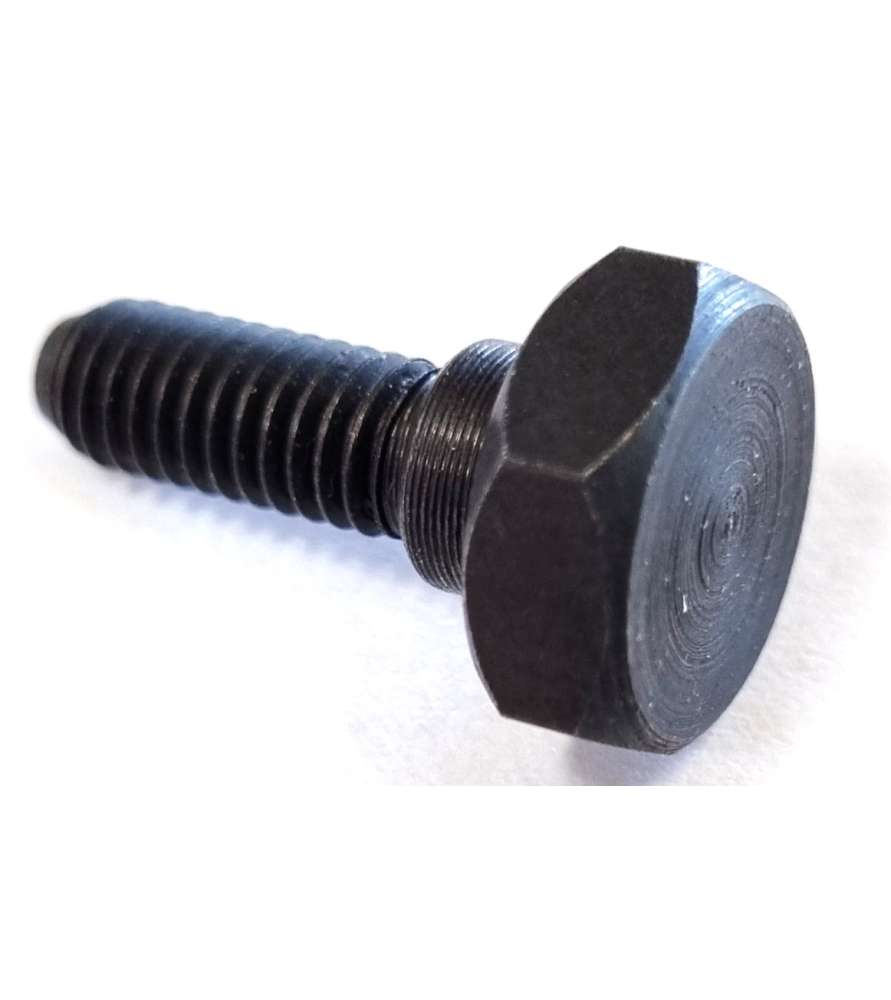

M6 × 18 Saw Blade Fixing Screw for Bernardo PKS250P

The M6 × 18 saw blade fixing screw for the Bernardo PKS250P is a mechanical component used in the blade clamping assembly on the saw spindle.

It contributes to the correct fastening of the clamping components required to secure the saw blade.

This screw features an M6 thread and a length of 18 mm.

Our catalogue includes an M6 × 18 blade fixing screw compatible with Bernardo PKS250P, STS1300 and STS1600 table saws, provided its specifications match the original installation.

This fastening component must be maintained in excellent condition.

During saw blade replacement operations, the screw may be subjected to repeated handling.

Using an unsuitable tool, applying incorrect tightening force or damaging the threads can gradually deteriorate the component.

A screw with a damaged head, worn threads or visible deformation must not be reused.

It should be replaced with a component that meets the manufacturer's specifications.

It is particularly important to respect the original dimensions, thread type and installation requirements.

Incorrect blade fastening can create serious safety hazards when operating the table saw.

Why Is It Important to Check the Saw Blade Fastening System?

The blade fastening system of a Bernardo circular table saw plays an essential role in cutting safety and accuracy.

The blade must be correctly positioned on its spindle and secured using the clamping components specified by the manufacturer.

Damaged or incorrectly installed fastening components may cause vibration, abnormal movement or significant mechanical hazards.

It is therefore essential to inspect these components whenever the saw blade is replaced.

The fixing screw must have undamaged threads and show no signs of deformation.

The clamping surfaces must also be clean and free from debris that could interfere with correct installation.

The manufacturer's instructions regarding tightening direction, suitable tools and fastening procedures must always be followed.

A screw should never be replaced with an approximate alternative simply because its diameter appears similar.

Its length, thread and other fastening characteristics must match the original assembly.

If any part of the blade clamping system is damaged, the machine must not be used until the problem has been corrected.

How to Identify the Correct Spare Part for a Bernardo PKS250P

Before ordering a spare part for a Bernardo PKS250P table saw, we recommend checking the information on the machine identification plate.

This plate generally provides the exact model designation and electrical specifications.

The Bernardo PKS250P is available in 230 V and 400 V versions.

Although many mechanical components may be shared between these versions, certain electrical parts and configurations can differ.

Consulting the Bernardo PKS250P exploded parts diagram is an important step when identifying the required component.

This document illustrates the various machine assemblies and allows individual parts to be located using their reference numbers.

For a replacement handle, it is particularly useful to compare the identification number shown in the diagram with the one indicated in the product listing.

For a fixing screw, the original reference, dimensions and installation specifications must be checked.

When the original component is still available, a visual comparison can also help with identification.

Following this procedure helps reduce ordering errors and avoids purchasing an unsuitable replacement part.

Common Problems on a Bernardo PKS250P Table Saw

Like any woodworking machine, the Bernardo PKS250P may develop different mechanical problems during its service life.

Unusual vibrations can occur when a fastening component becomes loose, when a saw blade is damaged or when a component of the cutting system develops a fault.

Reduced cutting accuracy may also result from incorrect rip fence adjustment, misalignment or a problem with the sliding table.

If an adjustment mechanism becomes difficult to operate, its condition should be checked before applying excessive force to the handles or controls.

Excessive force can damage an already weakened component.

Abnormal noises may indicate a mechanical problem requiring inspection.

It is also important to monitor the condition of the saw blade and ensure it remains suitable for the material being cut.

A blunt saw blade increases cutting resistance and may place additional strain on the motor and transmission mechanisms.

Before replacing a component, it is always preferable to identify the actual cause of the malfunction.

How to Maintain a Bernardo PKS250P Table Saw

Regular maintenance helps preserve the reliability and cutting accuracy of the Bernardo PKS250P circular table saw.

After each use, we recommend cleaning the worktable and removing accumulated sawdust from accessible areas of the machine.

The sliding table should be kept clean to maintain smooth and consistent movement.

Fences and adjustment mechanisms should also be inspected and maintained according to the manufacturer's recommendations.

It is advisable to check accessible mechanical fasteners periodically and watch for excessive play.

The saw blade should be kept clean, properly sharpened and suitable for the material being cut.

Using a wood dust extractor compatible with the 100 mm extraction connection helps reduce the accumulation of sawdust inside the machine and throughout the workshop.

Safety devices, particularly the blade guard and riving knife, must be present, correctly adjusted and maintained in good condition.

Before performing maintenance or repairs, the table saw must be disconnected from the electrical supply.

It is also important never to modify the protective devices or safety settings specified by the manufacturer.

Why Repair a Bernardo PKS250P Instead of Replacing It?

Replacing a worn or damaged component on a Bernardo PKS250P table saw can be a cost-effective solution when the machine remains in good overall condition.

A broken handle or damaged fixing screw does not necessarily justify replacing the entire table saw.

When the correct replacement component is available and the remaining parts operate properly, a suitable repair can often extend the machine's service life.

This approach also helps reduce waste and avoid the premature replacement of woodworking machinery.

However, safety must always remain the priority.

Components associated with blade fastening and adjustment mechanisms must be installed correctly.

A machine with a defect that could compromise operator safety must not be returned to service until the problem has been resolved.

Find Bernardo PKS250P Spare Parts at Probois Machinoutils

At Probois Machinoutils, we offer spare parts for the Bernardo PKS250P circular table saw to make maintenance and repairs easier.

In this category, you can find:

  • A replacement handle, part 21, for the Bernardo PKS250P table saw.

  • An M6 × 18 saw blade fixing screw for the Bernardo PKS250P, also listed for certain Bernardo STS1300 and STS1600 table saws.

These components allow damaged parts to be replaced while preserving the original assembly specifications of the machine.

Before ordering, we recommend checking the exact model of your saw and comparing the required component with the corresponding exploded parts diagram.

If you are looking for another component, our customer service team can help identify it using the machine model, identification plate or reference number shown in the technical diagram, subject to availability from the manufacturer.

Discover spare parts for the Bernardo PKS250P table saw at Probois Machinoutils to maintain your machine, replace defective components and extend the service life of your woodworking equipment.
