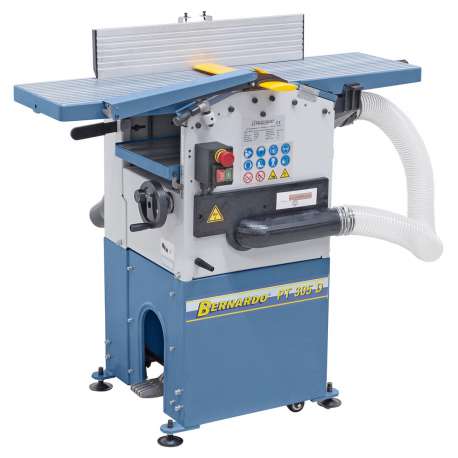

Surface planer and thicknesser Bernardo PT305D
Including €2.50 for ecotax (not impacted by the discount)
The PT 305 D planer and thicknesser offers a wide range of standard accessories, including an integrated dust extractor, waste bag and knife gauge, making this model unbeatable in price-performance ratio for the price conscious user.
Totally secure payment!
Be delivered where you want!
14 days to change your mind!
- Both planing tables feature fine adjustment and are designed with slots to keep noise levels down
- Thicknessing table is guided on four threads to ensure accurate planing of boards, planks, etc.
- Integrated dust extractor guarantees optimal price-performance ratio
- Quick and easy adjustment of chip removal
- Precise planing tables made of aluminium for best results
- Dust hood (Ø 100 mm) can be used for both planing and thicknessing
- Cutterblock comes with HSS-knives
- Corrugated infeed roller ensures safe and consistent workpiece infeed
- Solid planer fence with prism guide can be tilted from 90° to 45°
- Serially equipped with knife gauge to allow accurate adjustment of knives
- Infeed can be switched off when planing
- Planing width : 305 mm
- Table length : 1080 mm
- Table height : 920 mm
- Shaft rotation speed : 6700 rpm
- Cutter knives : 2 pcs.
- Planer shaft diameter : 62 mm
- Planer fence : 640 x 125 mm
- Fence tiltable : 90° to 45°
- Max. cutting depth : 3 mm
- Table length : 500 mm
- Working width : 300 mm
- Working thickness, min./max. : 6 - 160 mm
- Max. cutting depth : 2 mm
- Feed speed : 8,5 mm
- Dust extraction outlet : 100 mm / 75 mm
- Motor power output S1 100% : 1,8 KW (2,4 HP)
- Motor power input S6 40% : 2,5 KW (3,4 HP)
- Voltage : 230 V
- Machine dimension (L x W x H) : 1140 x 820 x 1100 mm
- Weight approx. : 94 kg
- Cutter knives in HSS-quality
- Knife gauge
- Integrated dust extractor
- Waste bag
- 2x Push handle
