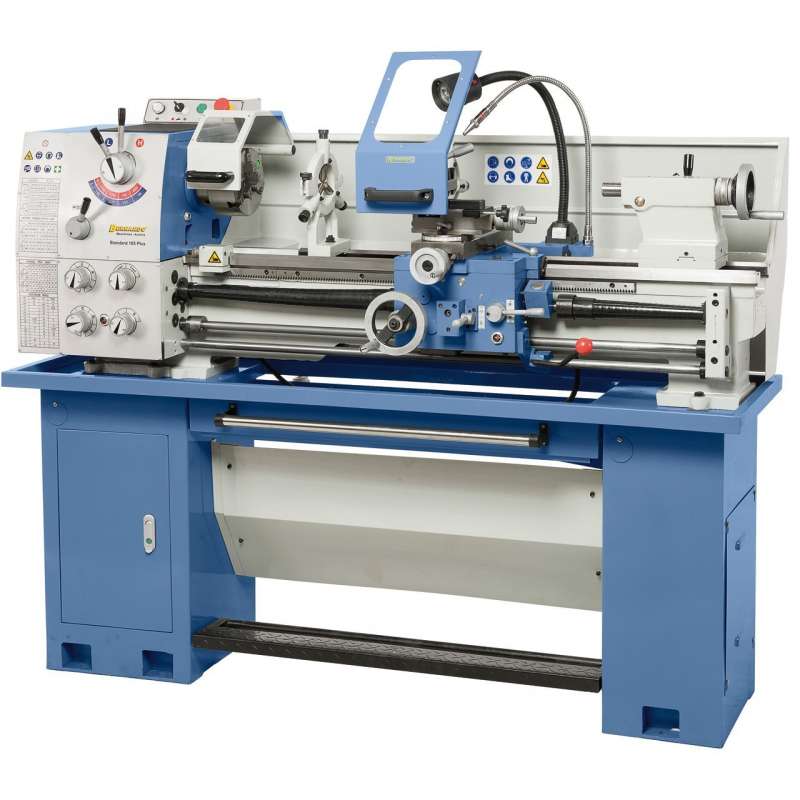

General description :

• Varied uses : training workshops, tool making, production, etc

• Bench prismatic grey cast iron, tempered by induction and guideways ground to precision

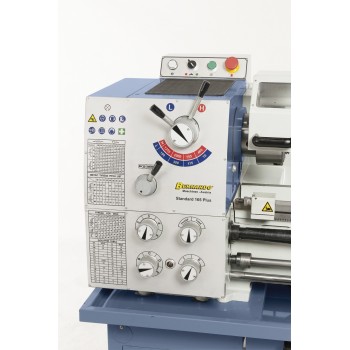

• Controls for adjusting speed and feed simple, accessible, and precise

• Machine very convenient screw-mother-and-bar turning for thread cutting and automatic feed

• Locking lever for the tailstock, slide for machining tapered parts

• The bench broken removable can machine workpieces of large diameter

• Bearing pin with 2 ball bearings precision adjustable

• Gears and shafts hardened and ground

• Chip tray opening to the front for an installation space-saving

• Brake pin mechanical foot pedal

Technical characteristics :

Entrepointes : 1000 mm

Centre height : 175 mm

Diameter machinable above the bench : 350 mm

Diameter machinable under the bench broken* : 450 mm

Diameter machinable above the carriage : 190 mm

Width of bench : 180 mm

Passage of spindle : 40 mm

Cone of spindle : DIN 55029, D1-4

Range of rotation speeds : (8) 70 - 2000 rpm/min

Advances in longitudinal : (40) 0,053 - 1.29 mm/rev

Advances cross-cutting : (40) 0,013 - 0.31 mm/tr

Threads metric : (32) 0,4 - 7 mm

Threads-inch : (36) 4 - 60 tpi

Race of the sheath against the cutting edge : 110 mm

Cone of the sleeve against-tip : 3 CM

Power continuous S1 100 % : 1.5 kW (400 V)

Power S6 40 % : 2.2 kW (400 V)

Machine Dimensions (L x w x H) : 1730 x 700 x 1340 mm

Weight (approx) : 495 kg

* Length of bench broken removable : 220 mm

Comes with :

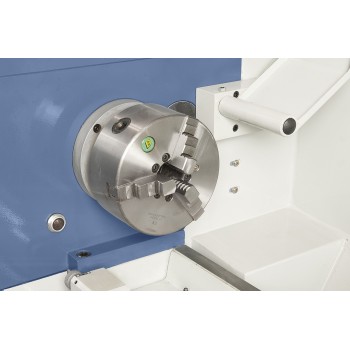

• Chuck 3-jaw chuck DK11-160 mm / D4

• Chuck 200 mm / D4, DIN 55029

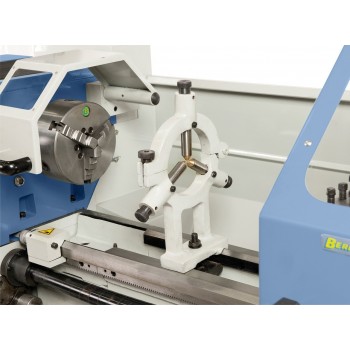

• Fixed bezel - passage max ø 60 mm

• Bezel mobile - passage max ø 60 mm

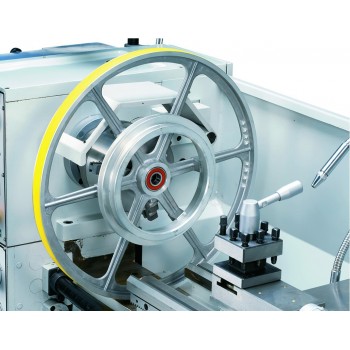

• Mounting flange 250 mm

• Turret 4 positions

• Protector turret 4 positions

• Clamping device on passage of the pin

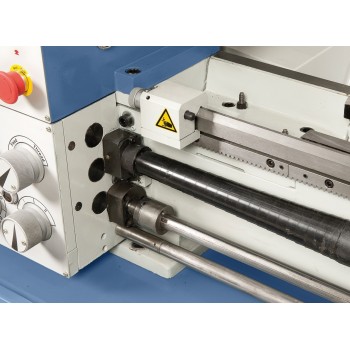

• Torque limiter

• Guide longitudinal micrometer

• Cooling device

• Chip tray removable

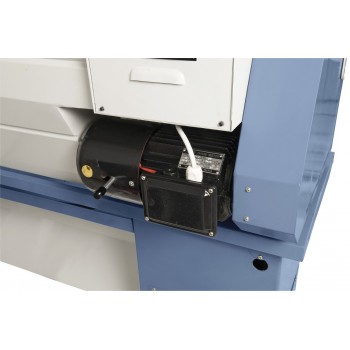

• Motor with magnetic brake, CE standard

• Brake pedal THIS

• Carter protection

• Device fall back into the thread

• LED lighting

• Cone reduction

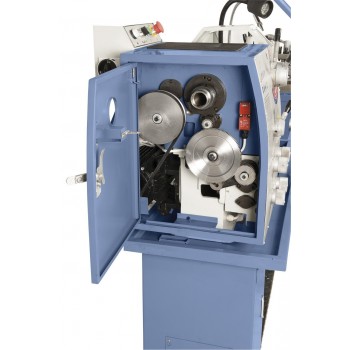

• Sprockets interchangeable

• 2 drills centering

• Stand

• Tooling service
