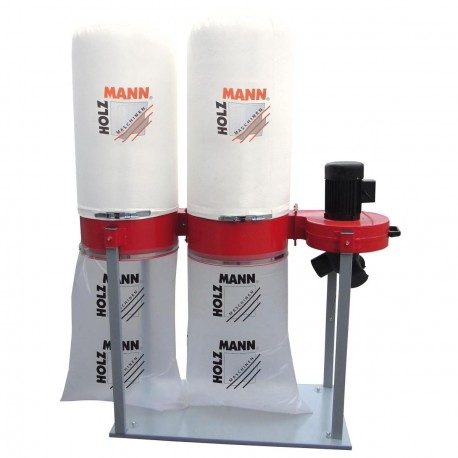

Dust collector Holzmann ABS4000
  • Dust collector Holzmann ABS4000

Dust collector Holzmann ABS4000

454.17 €

Including €2.50 for ecotax

Reference: HABS4000

The dust collector Holzmann ABS4000 is a vacuum cleaner that can be connected to 3 machines at the same time, its 2200W motor and its suction power of 3900 m³ / h make it ideal for small workshops!

Engine voltage
Quantity
Not available
05/10/2021

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

A dust collector is essential in woodworking and carpentry, it sucks dust and wood chips, protects your machine ensuring its guarantee and above all protects the health of the user!

But how to make the right choice of dust collector?
The more dust collector has a high suction flow, the better it performs. The higher the airflow, the more suitable and powerful the motor is.
For small models of woodworking machines such as planer-jointers up to 200 mm wide, small band saws, etc. .. the choice can be made on an entry-level dust collector.
On the other hand, the larger the size of the machines on which the dust collector is to be connected, the more it will be necessary to choose a dust collector with a high power. suction. For example, a planer-jointer with a width of 300 mm produces large wood chips and in large quantities, if the dust collector is undersized, unsuitable, he will not be able to extract what the machine asks him to do. the stuffing ensured, let alone the damage to the two machines!

Take note of the features of this dust collector Holzmann ABS4000!

General description :

  • Ideal device for chip extraction
  • Connectable to three machines simultaneously
  • Generous chip bag volume that increases ease of use
  • Aerodynamically shaped, the sheet steel turbine ensures superior performance
  • Clamping strap for convenient and quick change of bags
  • Mobile with its wheels

Technical specifications of dust collector Holzmann ABS4000:

  • Suction flow: 3900 m³ / h
  • Filtration area: 2.9 m²
  • Maximum depression: 1800 Pa
  • Ø suction nozzle: 1 x 150 mm / 3 x 100 mm
  • Bag capacity: 2 x 165 l
  • Idling speed: 2950 rpm
  • Sound pressure: 87 dB
  • Continuous power S1 100%: 2.2 kW (3.0 HP)
  • Engine power S6 40%: 3.0 kW (4.2 HP)
  • Voltage: 230 V / 50 Hz or 400 V as desired
  • Dimensions (W x D x H): 1530 x 600 x 1950 mm
  • Weight: 48 kg
  • Height of the vacuum cleaner adjustable!

This dust collector comes with these accessories :

  • Filtration bag
  • Recovery bag
  • Forklift
  • Y-sleeve 1 x 150 mm / 3 x 100 mm

This dust collector Holzmann ABS4000 is the same machine as the dust collector Bernardo ASA4500 that you can see by clicking here: Bernardo ASA4500 !

HABS4000-230V
2021-05-10

Data sheet

Delivery
Free shipping

Specific References

EAN13
9120039909332
