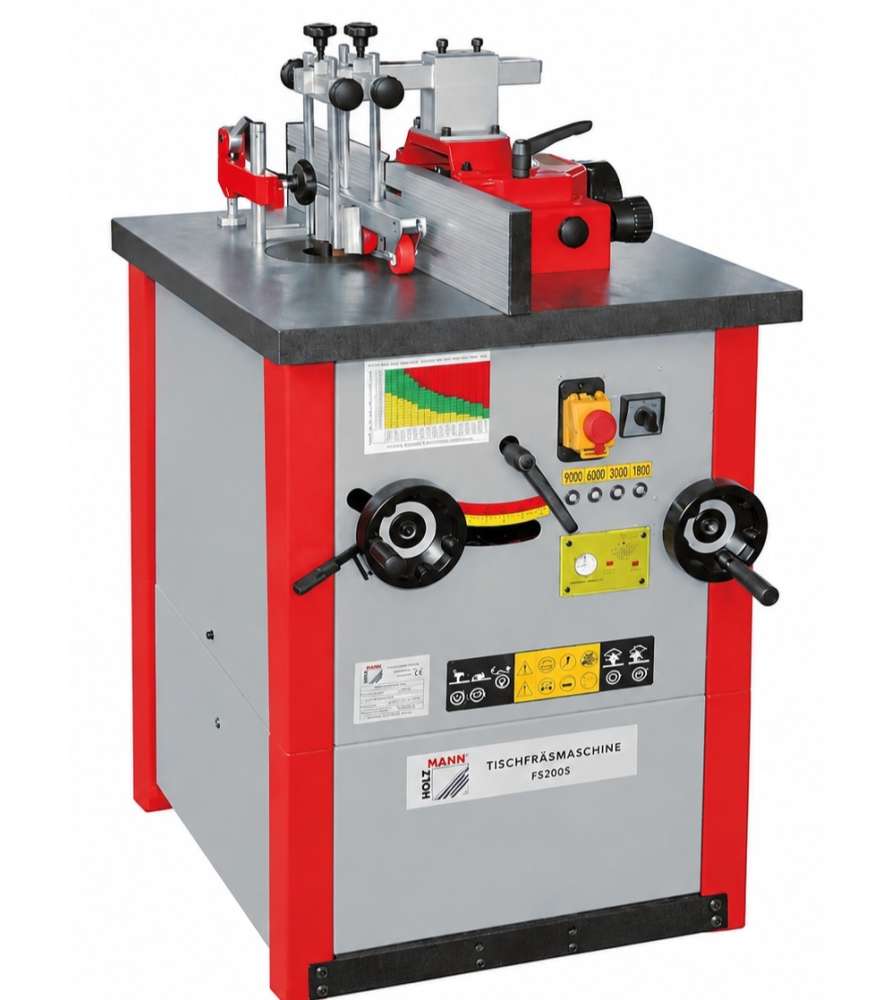

Holzmann FS200S 400V tilting spindle moulder: greater versatility for woodworking
The Holzmann FS200S 400V is a robust woodworking spindle moulder designed for users looking for greater versatility than a conventional machine with a fixed spindle.
Its main advantage is its 30 mm spindle, tilting from -5° to +30°. This feature allows you to work at different angles and produce more complex profiles and mouldings while retaining all the advantages of a genuine stationary spindle moulder.
This version operates on a 400V three-phase power supply and delivers a motor power of 2800 W in S1 duty and 3750 W in S6 duty.
Tilting spindle from -5° to +30°
The main difference between the Holzmann FS200S and the standard FS200 is its tilting spindle.
The spindle can be tilted from -5° to +30°, considerably increasing the range of profiling possibilities and allowing more complex operations than with a conventional fixed vertical spindle.
The tilting spindle is particularly useful for producing angled profiles, mouldings, chamfers, decorative elements and specialised joinery work.
30 mm spindle and 105 mm maximum clamping height
The FS200S is equipped with a 30 mm diameter spindle, a commonly used size that allows a wide range of cutter blocks and spindle moulder tooling to be fitted.
The machine offers a maximum clamping height of 105 mm and a spindle travel of 100 mm.
The spindle height can be conveniently adjusted using the handwheel located on the front of the machine.
4 spindle speeds up to 9000 rpm
The Holzmann FS200S offers 4 spindle speeds: 1800, 3000, 6000 and 9000 rpm.
This speed range allows the spindle speed to be adapted to the diameter of the cutter block and the type of machining operation being carried out.
The selected speed can be easily identified thanks to the LED speed indicator.
Powerful 2800 W three-phase motor
The Holzmann FS200S 400V features a three-phase 400V power supply and a powerful 2800 W S1 / 3750 W S6 motor.
This configuration is particularly suitable for workshops equipped with a three-phase electrical supply and looking for a robust spindle moulder for regular woodworking operations.
Large 710 x 640 mm cast-iron table
The FS200S features a large 710 x 640 mm cast-iron table, resistant to torsion and designed to provide a stable working surface.
With a working height of 900 mm, the machine provides comfortable operation and reliable support when guiding workpieces during different spindle moulding operations.
Spindle moulder fence and workpiece hold-down system
The machine is equipped with a robust spindle moulder guard with adjustable fences, as well as horizontal and vertical roller hold-down devices to help keep the workpiece correctly positioned during machining.
A Ø100 mm dust extraction outlet allows the spindle moulder to be connected to a suitable dust collector.
For tooling up to 190 mm in diameter
The FS200S accepts tooling up to 190 mm in diameter above the table and up to 190 mm below the table.
The 200 mm table opening allows a wide range of cutter blocks and tooling suitable for its 30 mm spindle to be used.
Sliding table available as an option
The Holzmann FS200S is supplied without a sliding table.
An aluminium sliding table is available as an optional accessory and can be retrofitted to the machine.
This allows you to purchase the spindle moulder on its own and add the sliding table later according to the requirements of your workshop.
Technical specifications of the Holzmann FS200S 400V spindle moulder
| Model |
Holzmann FS200S_400V |
| Power supply |
400V three-phase |
| Motor power S1 |
2800 W |
| Motor power S6 |
3750 W |
| Spindle diameter |
30 mm |
| Spindle tilt |
-5° to +30° |
| Spindle speeds |
1800 / 3000 / 6000 / 9000 rpm |
| Number of speeds |
4 |
| Spindle travel |
100 mm |
| Maximum clamping height |
105 mm |
| Maximum tool diameter above the table |
190 mm |
| Maximum tool diameter below the table |
190 mm |
| Table opening |
200 mm |
| Table dimensions |
710 x 640 mm |
| Table height |
900 mm |
| Fence dimensions |
360 x 120 mm |
| Dust extraction outlet |
Ø100 mm |
| Net weight |
170 kg |
| Gross weight |
191 kg |
| Packaging dimensions |
760 x 690 x 700 mm |
Standard equipment supplied with the Holzmann FS200S
- Spindle moulder guard
- Spindle moulder fences
- Horizontal workpiece hold-down
- Vertical roller hold-down
- LED spindle speed indicator
Advantages of the Holzmann FS200S 400V
- Tilting spindle from -5° to +30°
- Standard 30 mm spindle
- Powerful 2800 W S1 / 3750 W S6 motor
- 400V three-phase power supply
- 4 spindle speeds from 1800 to 9000 rpm
- Large 710 x 640 mm cast-iron table
- Maximum clamping height of 105 mm
- Accepts tooling up to 190 mm in diameter
- LED spindle speed indicator
- Convenient spindle height adjustment by handwheel
- Ø100 mm dust extraction outlet
- Sliding table available as an option
With its tilting spindle, powerful motor and large cast-iron table, the Holzmann FS200S 400V is an excellent solution for three-phase workshops looking for a robust and versatile spindle moulder capable of carrying out more complex profiling and woodworking operations.
