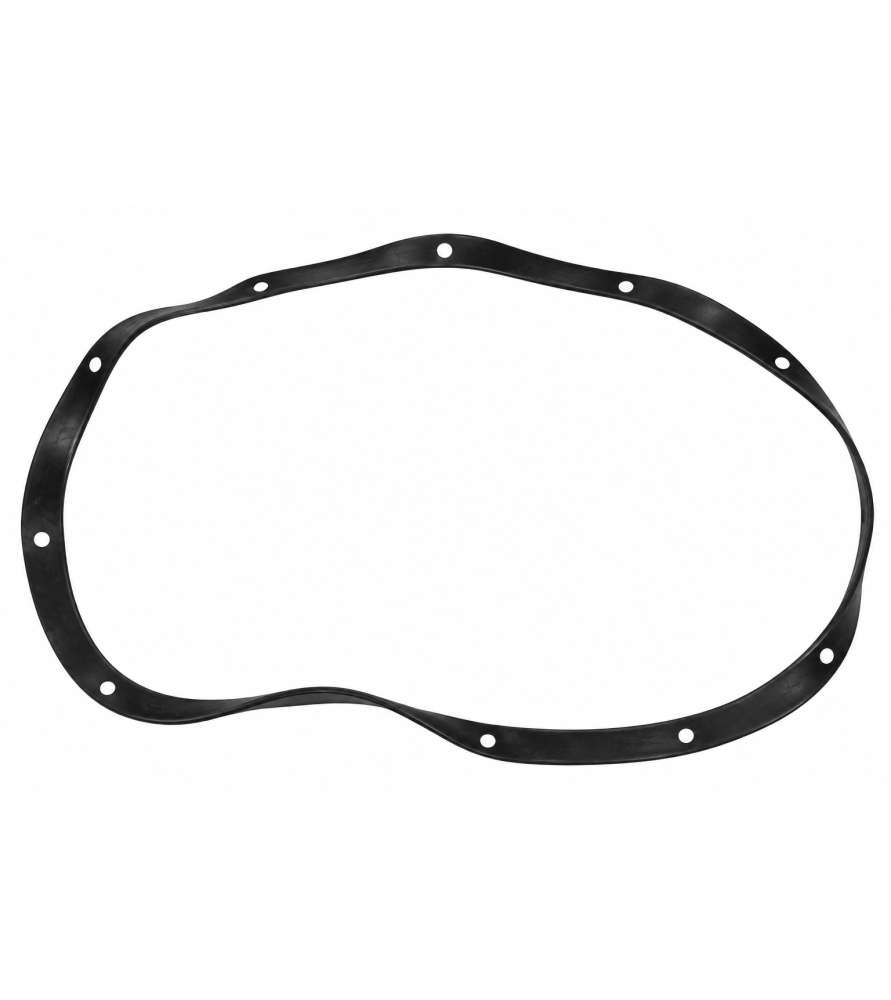

Impeller Housing Gasket for Dust Collector – Ref. 43

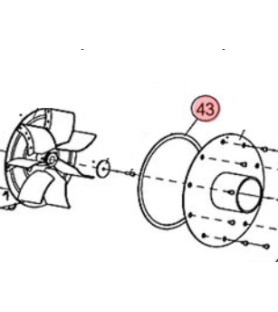

This impeller housing gasket for dust collectors corresponds to reference 43 on the exploded parts diagram. It is fitted around the impeller housing and provides a seal between the components of the dust collector's ventilation assembly.

Its specific shape and mounting holes allow it to be correctly positioned around the housing during assembly.

Function of the impeller housing gasket

The impeller is an essential component of the dust collector: its rotation generates the airflow required to extract and transport wood chips, sawdust and wood dust towards the collection system.

The impeller housing gasket provides a seal between the different parts of the housing. A proper seal helps prevent unwanted air leaks and contributes to maintaining the extraction performance of the machine.

During installation, the gasket is positioned around the edge of the impeller housing and held in place by the various mounting points.

When should the impeller housing gasket be replaced?

This gasket should be replaced if it becomes torn, cracked, distorted, crushed or otherwise damaged.

Its condition should also be checked whenever the impeller housing is removed, particularly when carrying out maintenance or repairs on the impeller, motor or associated components.

A damaged or incorrectly positioned gasket can cause air leakage around the impeller housing and may reduce the extraction performance of the dust collector.

When reassembling the unit, make sure that the gasket is correctly positioned and that all mounting holes are aligned with the fixing points on the housing.

Compatible dust collectors

This impeller housing gasket is suitable for various dust collectors, including:

• Holzmann ABS2480
• Holzmann ABS3880
• Leman ASP150
• Leman ASP152
• Leman ASP300
• Leman ASP302
• Jean l'Ébéniste FM300
• Holzprofi Starter FM300
• Jean l'Ébéniste FM300S
• Holzprofi Starter FM300S
• Bernardo DC300
• Bernardo DC400
• Bernardo DC500

IMPORTANT: check compatibility before purchasing

IMPORTANT: BEFORE PURCHASING, always check the shape, dimensions, number and position of the mounting holes on your original gasket.

The same machine model may have undergone manufacturing changes over time. The list of compatible machines is provided as a compatibility guide and does not replace checking the part against the one originally fitted to your dust collector.

If you are unsure, please provide us with the exact model of your dust collector, its month/year of manufacture and serial number, together with a photo of the gasket or impeller housing whenever possible.
