Planer thicknesser 310 mm Jean l'ébéniste ML393E - 230V
Including €2.50 for ecotax

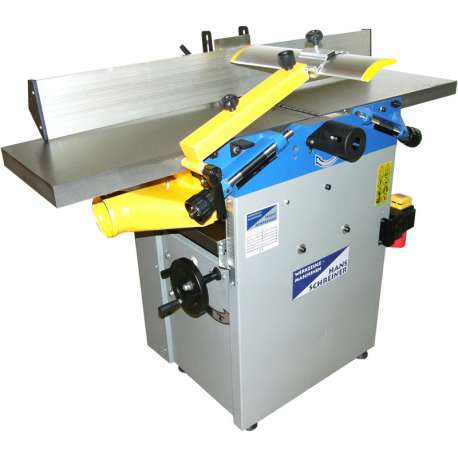

The planer thicknesser 310 mm Jean l'ébéniste ML393E is made from cast iron and gives the machine robustness and precision.
Totally secure payment!
Be delivered where you want!
14 days to change your mind!
Planer thicknesser Jean l'ébéniste ML393E fits into the mid-range machine category!
Dedicated to the handyman and amateur anxious to afford a good material for an interesting budget, it is equipped with regrindable irons. It is therefore possible to equip this jointer with carbide irons, the recommended quality for hard and abrasive wood because it is much more efficient.
Important recommendation of Probois for many woodworking machines:
- Before starting always check the inside of the machine, see if the belts are correctly fitted, tighten the bolts, grease the tables, etc. because the different transports cause vibrations.
- Always use an extension cord of 2.5² wire size
- The extension must not exceed 10 meters and must not be rolled
- Provide an electrical meter with special fuses at least 16A starting
- Have a standard electric meter with neutral and earth
- Always work with a chip vacuum cleaner for your health and machine warranty
- Always grease the cast iron tables with slip-wood
- Always work with the protections in place
- Do not work with blunted or dulled irons it can damage the mechanism, advance the planer, break the belt.
General description of planer thicknesser Jean l'ébéniste ML393E:
The large diameter of the direct locking table center shaft, supported by a guide bar, provides a high degree of accuracy in setting the pass. This planer jointer has a powerful motor, which ensures effortless work even when machining large or particularly left. Delivered with irons mounted and sharpened. As on the model Jean cabinetmaker ML392, a mechanical counter for precise adjustment of the planing table is included.
Technical characteristics of planer thicknesser Jean l'ébéniste ML393E:
- Table dimensions mm: 1285 x 310
- Width of alignment mm: 310
- shaft ø mm: 75
- Number of shoes: 3
- Depth of mm: from 0 to 3
- Table top dimensions mm: 750 x 310
- Planing width mm: 310
- Planing table length mm: 600
- Planing timber height mm: 190
- Feed speed of wood m / min: 8
- Speed of rotation rpm: 4000
- Advance of the detachable wood: yes
- 230V motor - Absorbed power P1 W: 2200
- Weight kg: 180/220 gross
- Overall dimensions mm: 1350 x 590 x 950
The planer thicknesser Jean l'ébéniste ML393E comes with:
Parallel guide - Bridge guard - Movable chip sensor for draft and planer suction - 1 set of high quality irons set in position - Instructions - Service keys - Push-button
VERY IMPORTANT FOR DELIVERY!
The delivery of this very heavy planer (more than 300 kg) requires a big truck with rags! The place of delivery must be provided so that the truck can approach easily. In the case of a delivery location which is difficult to access, we must inform us so that we can order a smaller truck but delivery charges will apply for this special request. Delivery charges must be paid before shipment.
The machine arrives in a wooden crate. Our prices do not include assembly or installation. It is advisable to have your electrical installation checked by a professional to make sure that it can support the power of this machine so as not to damage it by an unsuitable meter.
