Reference: BZSM560-230V

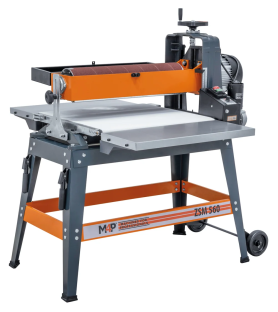

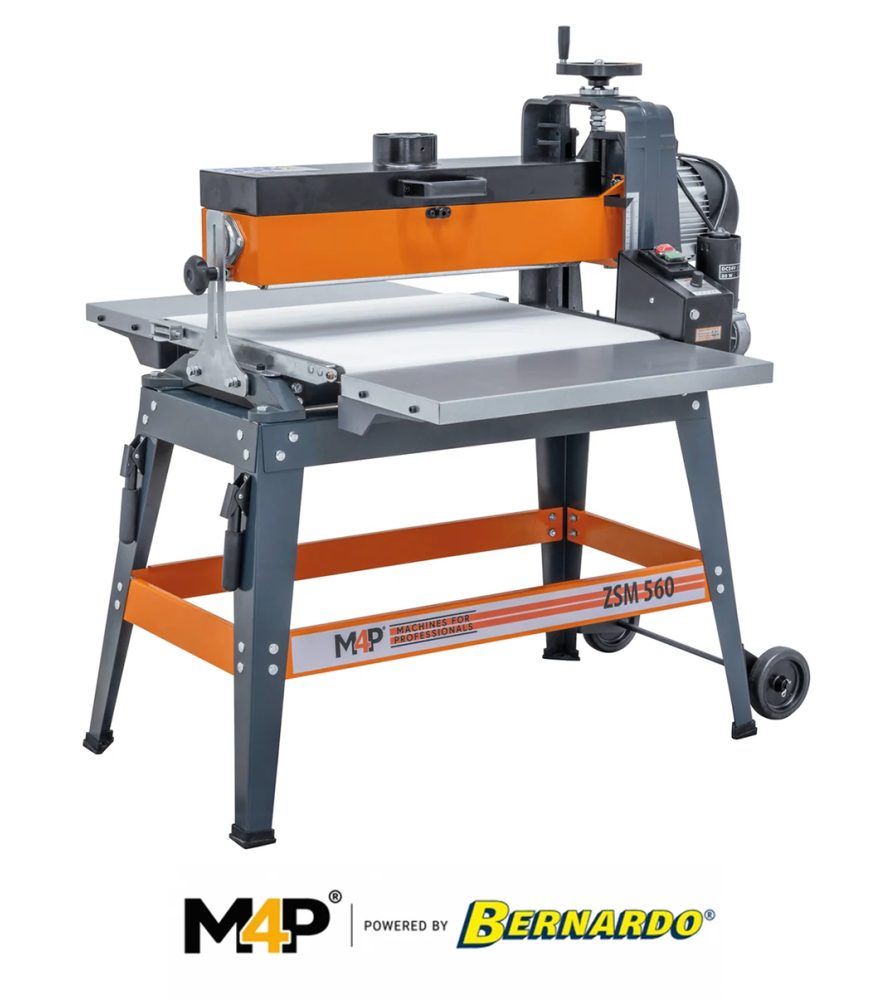

The M4P by Bernardo ZSM560 drum sander – 230 V is designed for thickness sanding, calibrating and finishing wooden workpieces. Thanks to its 565 mm long sanding drum and open-sided design, it offers a maximum sanding width of 560 mm in a single pass, extending to 1120 mm in two passes.
Equipped with a 1500 W (2 HP) motor, this drum sanding machine features a continuously variable conveyor belt speed from 0.5 to 3 m/min, allowing the feed rate to be adjusted according to the workpiece dimensions, wood species and desired finish.
The sanding drum height can be precisely adjusted using a handwheel with graduated scale. The machine accommodates workpieces from 5 to 125 mm thick and features a 100 mm dust extraction outlet.
The M4P by Bernardo ZSM560 drum sander – 230 V is a woodworking machine designed for thickness sanding, calibrating and finishing wooden workpieces. It helps achieve consistent surfaces, progressively reduce workpiece thickness and improve surface quality before assembly or finishing operations.
Thanks to its open-sided design, this M4P ZSM560 drum sanding machine provides a maximum sanding width of 560 mm in a single pass. For larger panels and workpieces, it is also possible to sand a maximum width of 1120 mm in two successive passes by turning the workpiece around to sand the remaining section.
This feature is particularly useful for joiners, cabinetmakers and woodworking enthusiasts who need to sand relatively wide panels without investing in a large industrial sanding machine.
Equipped with a 1500 W (2 HP) motor, a 130 mm diameter sanding drum and a variable-speed conveyor belt, it is suitable for calibrating and finishing operations requiring controlled material removal.
Its 230 V single-phase power supply allows installation in workshops with a suitable electrical supply, without requiring a three-phase connection.
The ZSM560 drum sander is particularly suitable for applications requiring consistent sanding across relatively large wooden surfaces.
Unlike a handheld sander, which requires continuous manual guidance, this machine uses a motorised conveyor belt to move workpieces progressively beneath the sanding drum.
This operating principle helps achieve a consistent finish along the entire length of the workpiece, provided that the drum height, conveyor speed and abrasive grit are correctly adjusted.
The machine can be used for various woodworking applications, including:
However, a drum sander does not replace a jointer or thickness planer when it comes to straightening severely warped timber. It is primarily intended for controlled sanding of properly prepared workpieces.

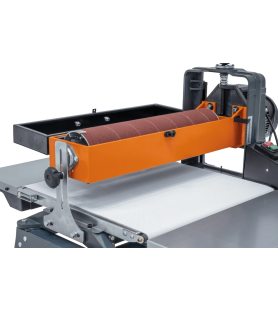

One of the main advantages of the M4P by Bernardo ZSM560 drum sander is its open-sided construction.
This design allows workpieces up to 560 mm wide to be sanded in a single pass beneath the sanding drum.
For wider workpieces, the open side of the machine allows a first sanding pass to be completed before the panel is turned around and the remaining section is sanded.
This method provides a maximum theoretical sanding width of 1120 mm in two passes, depending on the dimensions and characteristics of the panel.
This capacity is particularly useful for sanding large panels, furniture tops and various joinery components.
To obtain a consistent surface when working in two passes, it is important to maintain the same height setting and carefully control the feed rate and positioning of the workpiece.
Moderate material removal is also recommended to avoid sanding marks and differences in surface level.

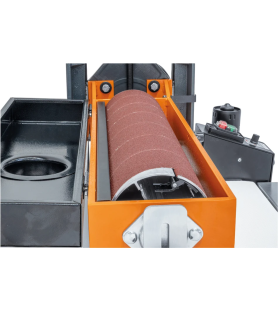

The M4P ZSM560 drum sanding machine is equipped with a sanding drum measuring 130 mm in diameter and 565 mm in length.
This drum rotates at a speed of 1420 rpm.
Its working width allows efficient sanding of wooden panels and components within the machine's operating capacity.
The manufacturer specifies that the ZSM560 can be used with commercially available abrasive strips, provided that their dimensions and characteristics are compatible with the drum's fastening system.
Choosing the correct abrasive is essential for obtaining good results. A relatively coarse grit is useful for initial thickness sanding, while finer abrasives help progressively improve the surface finish.
It is recommended to avoid removing excessive material in a single pass, particularly when sanding hardwoods or wide workpieces.

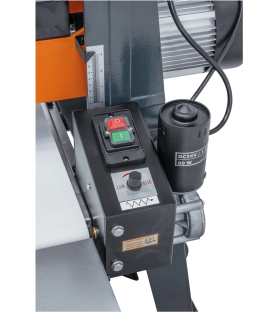

The ZSM560 drum sander features a continuously variable conveyor belt speed ranging from 0.5 to 3 metres per minute.
This function allows the feed rate to be adapted to the sanding conditions and the desired result.
A slower feed rate may be useful for certain operations requiring more intensive abrasive action, while a faster feed rate may be suitable for lighter finishing passes.
The appropriate setting depends on several factors:
This continuously adjustable conveyor speed is a valuable feature for adapting the machine to different joinery and cabinetmaking applications.

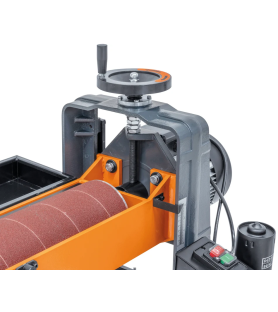

The M4P ZSM560 drum sander features a sanding unit height adjustment system operated by a manual handwheel with graduated scale.
This mechanism allows the sanding drum position to be adjusted according to the thickness of the workpiece.
The machine accommodates workpieces with a thickness ranging from 5 to 125 mm.
Progressive height adjustment allows the operator to control material removal and perform successive sanding passes until the desired thickness or surface finish is achieved.
For accurate results, it is recommended to measure workpieces regularly and make small, controlled adjustments.
This feature is particularly useful for calibrating panels, preparing wooden boards and carrying out work requiring a relatively consistent thickness.

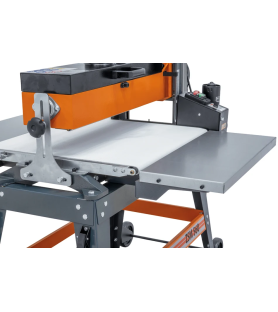

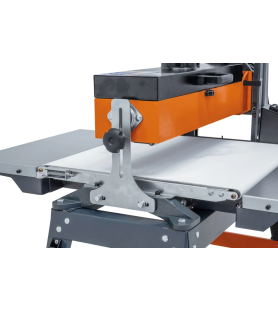

The M4P by Bernardo ZSM560 drum sander is equipped with a 500 x 580 mm worktable.
To improve workpiece support at the infeed and outfeed sides of the machine, it is also supplied with two table extensions, each measuring 245 x 580 mm.
These extensions are particularly useful when sanding panels or relatively long workpieces.
They help keep the material correctly positioned as it passes beneath the sanding drum and facilitate smooth movement along the conveyor belt.
For particularly long or heavy workpieces, additional suitable supports may be required to maintain proper balance and stability.
The M4P ZSM560 drum sander is equipped with a 1.5 kW motor, equivalent to 1500 W or approximately 2 HP.
This motor drives the sanding drum at 1420 revolutions per minute, providing the performance required for the calibrating and finishing operations for which the machine has been designed.
Its 230 V single-phase power supply is particularly convenient for workshops without a three-phase electrical installation.
To make the best use of the available power, it is essential to adjust the conveyor speed and sanding depth according to the workpiece width, wood species and abrasive grit.
Excessive loading of the sanding drum may cause abrasive overheating, sanding marks on the wood or motor overload.

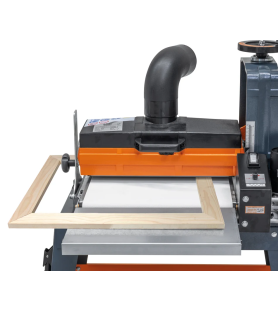

The ZSM560 drum sander features a 100 mm diameter dust extraction outlet, designed for connection to a compatible woodworking dust extraction system.
Drum sanding produces a considerable amount of fine wood dust. It is therefore essential to use an extraction system with sufficient airflow capacity and suitable filtration for the dust generated.
Effective dust extraction helps reduce dust accumulation around the sanding drum, improve working conditions and maintain sanding quality.
For best results, it is recommended to check the cleanliness of the extraction outlet and the condition of the extraction hoses regularly.
Suitable respiratory protection may still be required depending on the operating conditions, even when the machine is connected to a dust extraction system.
With an approximate weight of 101 kg, the M4P by Bernardo ZSM560 drum sander features a construction suitable for permanent installation in a woodworking workshop.
Unlike some machines for which the support stand must be purchased separately, the ZSM560 is supplied with an enclosed floor stand featuring a storage compartment.
This stand provides a dedicated support for the machine and offers convenient storage space for certain sanding accessories.
The working height specified by the manufacturer is 695 mm.
The overall machine dimensions are 1100 x 1065 x 1170 mm.
Sufficient space should be provided around the machine to allow workpieces to enter and exit freely, particularly when sanding large panels.
Below are the technical specifications of the M4P by Bernardo ZSM560 drum sander – 230 V:
The M4P by Bernardo ZSM560 drum sander is supplied with the following equipment:
The machine also features a handwheel-operated height adjustment system with graduated scale, a variable-speed conveyor belt and a 100 mm dust extraction outlet.
The enclosed floor stand and both table extensions are included in the standard delivery.
To make the most of the ZSM560 drum sander, it is important to prepare workpieces properly and adjust the machine settings according to the task being performed.
Before sanding, check that the wood does not contain nails, screws or other foreign objects that could damage the abrasive.
The timber should be sufficiently dry, and the workpieces should have a suitable surface to allow consistent movement along the conveyor belt.
For thickness sanding operations, it is preferable to perform several light passes rather than attempting to remove a large amount of material in a single pass.
The abrasive grit should also be selected according to the desired result:
It is important to monitor abrasive clogging, particularly when sanding resinous softwoods or certain timber species containing natural deposits.
A clogged abrasive strip may cause overheating, leave marks on the workpiece and reduce sanding quality.
Finally, the conveyor feed speed should be adjusted progressively to achieve the best balance between material removal, surface finish and motor load.
The M4P by Bernardo ZSM560 drum sander – 230 V is an excellent solution for woodworkers looking to improve the consistency and quality of their sanding operations.
Its 560 mm working width, extending to 1120 mm in two passes, allows relatively wide workpieces to be processed while maintaining a machine size suitable for a woodworking workshop.
The 1500 W motor, variable-speed conveyor belt, graduated handwheel height adjustment and two included table extensions provide useful adjustment possibilities for thickness sanding and finishing operations.
The enclosed floor stand with storage compartment completes the machine's equipment and makes workshop installation more convenient.
