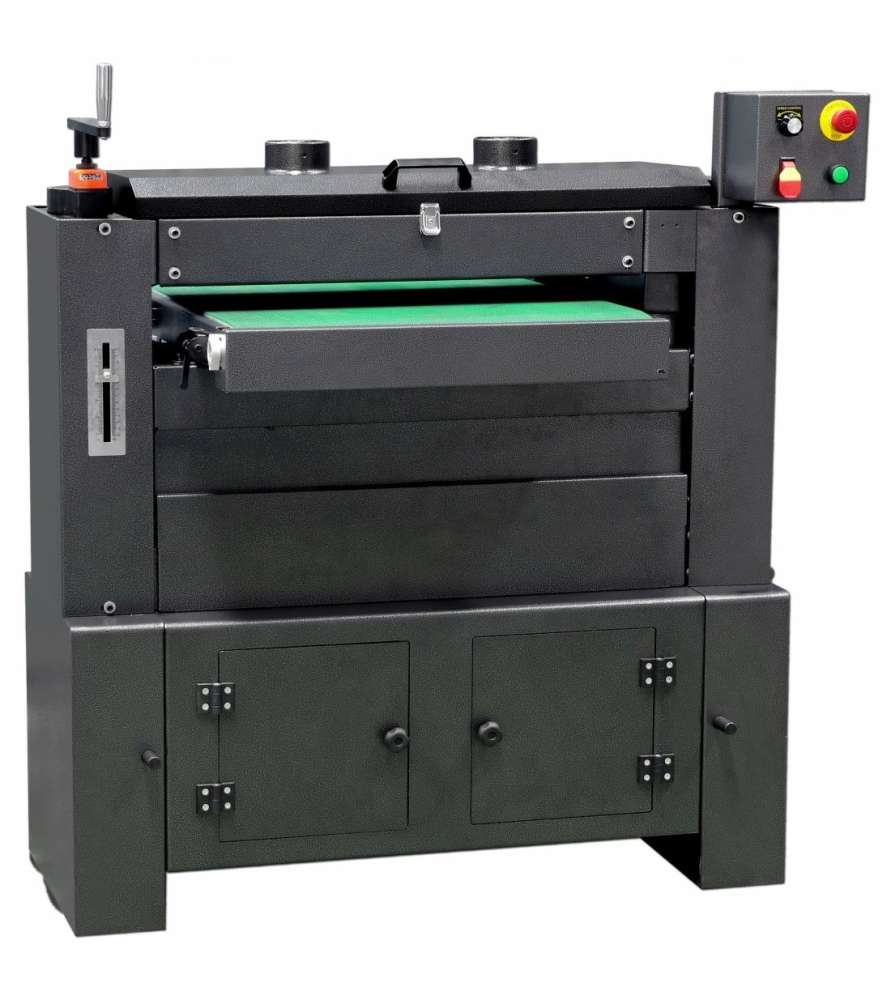

Holzprofi Maker SPB640M Twin-Drum Sander

The Holzprofi Maker SPB640M is a heavy-duty twin-drum sander designed to provide accurate, consistent and repeatable sanding on large wooden workpieces. It is particularly well suited to joiners, cabinetmakers, furniture makers and demanding woodworkers looking for a genuine stationary machine dedicated to thickness calibration and surface finishing.

Its main advantage is its two Ø125 mm sanding drums. The first drum is supplied with a 100-grit abrasive, while the second uses a 150-grit abrasive. This arrangement allows the first drum to perform the initial sanding operation before the second refines the surface, saving valuable workshop time and helping achieve a more consistent finish.

With a maximum sanding width of 625 mm, a workpiece thickness range from 5 to 130 mm and continuously variable conveyor feed, the SPB640M is particularly suitable for calibrating panels, tabletops, furniture components and many other woodworking parts.

Two sanding drums for calibration and finishing in a single pass

The twin-drum configuration is one of the major advantages of the Holzprofi Maker SPB640M. By fitting different abrasive grits to the two drums, the sanding process can be divided between them: the first drum performs the coarser sanding, while the second produces a finer finish.

This is especially useful when several workpieces need to be brought to a consistent thickness or when the same finish needs to be reproduced across a series of panels. Fewer handling operations are required, helping improve productivity while maintaining consistent results from one workpiece to the next.

For furniture production, panel work or repetitive woodworking, this two-stage sanding process makes the SPB640M particularly efficient compared with a single-drum machine where abrasive changes or additional passes may be required.

Maximum sanding width of 625 mm

The SPB640M offers a maximum sanding width of 625 mm, allowing significantly wider workpieces to be processed than with many conventional stationary sanders.

It is suitable for solid wood, MDF, panels, tabletops, cabinet components, furniture parts and similar materials where a consistent surface and controlled thickness are required.

The machine accepts workpieces from 5 to 130 mm thick, providing useful capacity for both relatively thin panels and substantially thicker timber components.

Variable conveyor feed speed to suit the job

The conveyor belt features a continuously variable feed speed from 0 to 4.6 m/min.

This allows the operator to adapt the feed rate according to the timber, abrasive grit and required finish. A slower feed provides more sanding action, while a faster feed can be useful for lighter passes or workpieces that are already close to their final dimensions.

The variable conveyor speed therefore makes the SPB640M more versatile and allows the sanding parameters to be adapted to different projects and materials.

Accurate sanding height adjustment

The worktable can be adjusted in height to set the required workpiece thickness. The manufacturer specifies a mechanical counter for reading the table height, making it easier to monitor and reproduce the selected setting.

The table measures 660 × 625 mm, providing a substantial support surface for larger workpieces.

The maximum sanding depth per pass is 0.30 mm. As with any thickness sander, the appropriate depth of cut depends on the timber, abrasive grit and width of the workpiece. Several controlled passes are generally preferable to an excessively heavy single pass, helping preserve both the abrasives and the machine while improving surface quality.

Powerful 3 kW single-phase 230 V motor

The Holzprofi Maker SPB640M is equipped with a 3.0 kW / 4 HP main motor operating on 230 V single-phase power. This makes it possible to install a substantial twin-drum sander in workshops where three-phase power is not available.

The sanding drums rotate at 1400 rpm, while the conveyor is driven by a separate 120 W motor.

As with any powerful single-phase stationary woodworking machine, the electrical installation should be appropriately rated for the machine's power requirements.

Heavy construction for greater workshop stability

With a net weight of 249 kg, the SPB640M is a substantial stationary machine designed to provide a stable working platform during sanding.

This weight is particularly useful when processing larger components or repeated batches, helping the machine remain stable while workpieces pass through the sanding drums.

Its overall dimensions of 1180 × 800 × 1400 mm provide a useful balance between substantial sanding capacity and workshop footprint.

Efficient dust extraction is essential

Thickness sanding produces a significant quantity of fine wood dust. The SPB640M is equipped with two Ø100 mm dust extraction outlets, allowing the machine to be connected to a suitable workshop dust extraction system.

Effective dust extraction helps prevent excessive dust accumulation around the sanding drums and abrasives, supports a cleaner sanding process and contributes to a healthier workshop environment.

For a twin-drum sander of this capacity, using an appropriately sized dust collector with sufficient airflow is therefore strongly recommended.

Ideal for both individual projects and repetitive production

The Holzprofi Maker SPB640M is particularly useful when the objective is to achieve a consistent thickness and uniform surface finish across several workpieces.

It can be used after initial timber preparation to equalise the thickness of components, prepare panels before finishing or improve the surface quality of assembled parts.

For furniture, doors, panels, tabletops and interior joinery components, the combination of accurate height adjustment and variable feed speed makes it easier to reproduce the same result across an entire batch.

Why choose the Holzprofi Maker SPB640M?

The SPB640M combines several features that are particularly valuable in a workshop thickness sander:

• two sanding drums for combining initial sanding and finer finishing;

• 625 mm maximum sanding width;

• workpiece thickness from 5 to 130 mm;

• maximum sanding depth per pass of 0.30 mm;

• continuously variable feed speed from 0 to 4.6 m/min;

• mechanical table-height counter;

• powerful 3 kW single-phase 230 V motor;

• separate 120 W conveyor motor;

• substantial 249 kg construction;

• two Ø100 mm dust extraction outlets;

• suitable for solid wood, panels, MDF and similar woodworking materials.

The twin-drum design is a real advantage when the aim is to progress from initial sanding to a finer surface finish without changing abrasive between each stage.

Standard equipment

The Holzprofi Maker SPB640M is supplied with a 100-grit abrasive on the first drum and a 150-grit abrasive on the second drum. The machine also features a mechanical table-height counter and complies with CE requirements.

This configuration provides a workshop-ready twin-drum sanding solution designed for regular use in joinery, cabinetmaking and furniture production.
