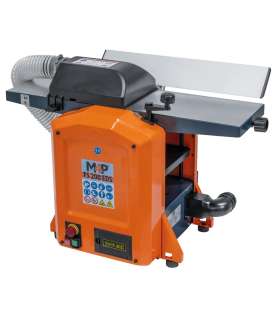

M4P FS200EDS 230V Planer Thicknesser with Helical Cutterblock and Integrated Dust Extraction

The M4P FS200EDS planer thicknesser is a compact and versatile woodworking machine designed for accurate jointing and thicknessing operations in small workshops. Equipped with a helical cutterblock featuring 18 carbide inserts, a 230V single-phase motor and an integrated chip extraction system, it provides a practical solution for machining solid wood while keeping workshop space requirements to a minimum.

With a maximum jointing width of 205 mm, a thicknessing width of 200 mm and a maximum thicknessing height of 210 mm, this machine is well suited to demanding DIY enthusiasts, passionate woodworkers and craftsmen looking for compact, well-equipped woodworking machinery.

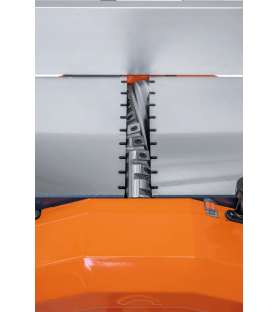

Helical Cutterblock with 18 Carbide Inserts for Excellent Wood Finishing

The M4P FS200EDS features a 50 mm diameter helical cutterblock equipped with 18 reversible carbide inserts.

Unlike traditional cutterblocks fitted with straight knives, the carbide inserts are arranged around the cutterblock to provide a progressive and consistent cutting action.

This technology offers several advantages:

• Reduced operating noise, with reductions of up to approximately 50% according to the manufacturer.

• Improved surface finish, thanks to a smooth cutting action that helps minimise wood fibre tear-out.

• Extended cutting tool life, with the manufacturer claiming up to 20 times longer service life compared with conventional planer knives.

• Simplified maintenance, thanks to reversible carbide inserts featuring four cutting edges.

• Cost-effective replacement, as individual damaged inserts can be replaced without changing the entire set.

The cutterblock operates at 8,500 rpm, providing the cutting speed required for accurate jointing and thicknessing.

The machine is also supplied with 5 spare carbide inserts, making future maintenance easier.

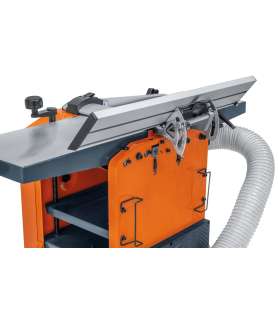

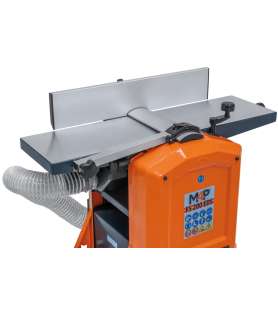

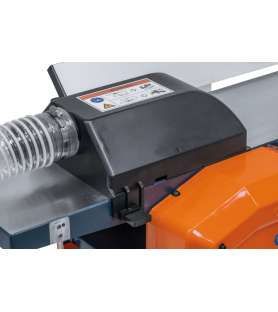

Integrated Chip Extraction for Greater Workshop Convenience

One of the main advantages of the M4P FS200EDS planer thicknesser is its integrated chip extraction system, which allows the machine to operate without necessarily requiring a separate dust extractor.

This system helps collect the wood chips produced during jointing and thicknessing operations.

The machine features a 60 mm diameter extraction connection and comes with the accessories required for chip collection:

• Integrated chip extraction system to collect chips generated during machining.

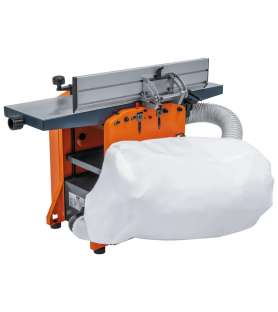

• Chip collection bag for storing the collected wood waste.

• Dust extraction hood for thicknessing, designed to improve chip collection when thicknessing timber.

This design is particularly useful in smaller workshops where installing a separate dust extraction system may be difficult.

The integrated extraction system helps maintain a cleaner working environment, although suitable ventilation and respiratory protection against fine wood dust are still recommended.

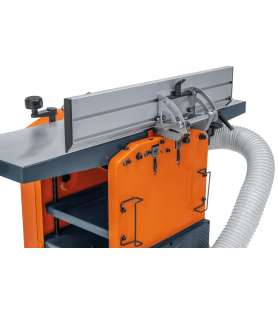

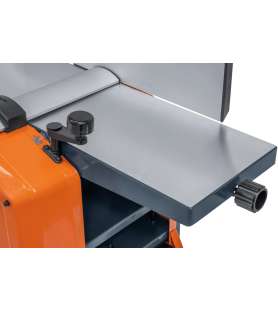

Precision-Machined Aluminium Jointing Tables

In jointing mode, the M4P FS200EDS features precision-machined aluminium tables, providing a suitable working surface for flattening and straightening timber.

The combined table length is 740 mm, with a maximum jointing width of 205 mm.

These dimensions allow a variety of solid wood workpieces to be machined, particularly for flattening surfaces and straightening edges.

The maximum depth of cut is 2 mm, allowing material to be removed progressively to achieve flat and consistent surfaces.

The 540 × 105 mm jointing fence can be tilted from 90° to 45°, making it possible to produce both square edges and angled joints.

For the best results, the depth of cut should be adjusted according to the width of the workpiece and the hardness of the timber.

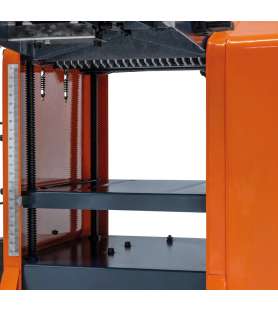

Compact Thicknesser with a Maximum Capacity of 210 mm

In thicknessing mode, the M4P FS200EDS planer thicknesser allows wooden workpieces to be machined to the required thickness after jointing.

It provides a maximum thicknessing width of 200 mm and an adjustable thicknessing height from 5 to 210 mm.

This generous 210 mm capacity is a significant advantage for a compact machine, allowing relatively thick timber to be processed without requiring a larger workshop machine.

The thicknessing table measures 285 mm in length and supports the workpiece as it passes through the machine.

The automatic feed mechanism operates at a feed speed of 7 metres per minute, ensuring consistent workpiece movement beneath the cutterblock.

The maximum thicknessing depth of cut is 2 mm and should be adjusted according to the width of the workpiece, the type of wood and the load placed on the motor.

Thanks to its helical cutterblock with carbide inserts, the machine produces smooth surfaces while helping reduce the risk of wood fibre tear-out.

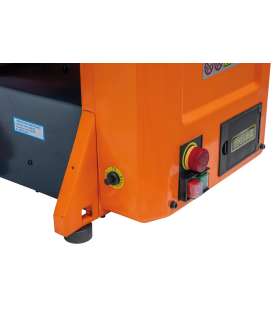

230V Single-Phase Motor for Home Workshops

The M4P FS200EDS operates on a 230V single-phase electrical supply, making it suitable for workshops without access to three-phase power.

Its motor specifications are as follows:

• Continuous motor output power S1: 1,500 W.

• Motor input power S6 40%: 2,100 W.

• Power supply: 230V single-phase.

• Cutterblock speed: 8,500 rpm.

This motor configuration is suitable for general woodworking applications, provided that the machine's capacity is respected and the depth of cut is adjusted according to the type of timber.

It allows home workshops and small woodworking businesses to use a versatile planer thicknesser without requiring an industrial three-phase electrical supply.

Compact and Easy-to-Transport Planer Thicknesser

With overall dimensions of 790 × 480 × 550 mm and an approximate weight of 28 kg, the M4P FS200EDS is particularly suitable for workshops where space is limited.

Its compact design allows it to be installed on a workbench or stable support, while ensuring sufficient clearance for feeding and removing timber.

Its relatively low weight also makes it easier to move and store when not in use.

It is therefore an interesting solution for home woodworkers, small joinery workshops and craftsmen who occasionally need a portable machine for on-site work.

Technical Specifications of the M4P FS200EDS Planer Thicknesser

General Information

• Brand: M4P

• Model: FS200EDS

• Manufacturer reference: 3001011

• EAN code: 9009468083892

• Power supply: 230V single-phase

• Motor output power S1: 1,500 W

• Motor input power S6 40%: 2,100 W

• Machine dimensions (L × W × H): 790 × 480 × 550 mm

• Weight: approximately 28 kg

Cutterblock Specifications

• Cutterblock type: helical cutterblock with carbide inserts

• Number of carbide inserts: 18

• Cutterblock diameter: 50 mm

• Cutterblock speed: 8,500 rpm

• Reversible carbide inserts with 4 cutting edges

Jointing Capacity

• Maximum jointing width: 205 mm

• Total jointing table length: 740 mm

• Table material: aluminium

• Maximum depth of cut: 2 mm

• Fence dimensions: 540 × 105 mm

• Fence tilt: 90° to 45°

Thicknessing Capacity

• Maximum thicknessing width: 200 mm

• Thicknessing height: 5 to 210 mm

• Thicknessing table length: 285 mm

• Maximum depth of cut: 2 mm

• Automatic feed speed: 7 m/min

Dust Extraction System

• Integrated chip extraction: yes

• Chip collection bag: included

• Dust extraction hood for thicknessing: included

• Extraction connection diameter: 60 mm

Standard Equipment Supplied with the M4P FS200EDS

The M4P FS200EDS planer thicknesser is supplied with the following equipment:

• Helical cutterblock fitted with 18 carbide inserts, factory-installed on the machine.

• 5 spare carbide inserts, for convenient cutterblock maintenance.

• Integrated chip extraction system, for collecting wood chips during machining.

• Chip collection bag, designed to store collected wood waste.

• Dust extraction hood for thicknessing, allowing chips to be collected during thicknessing operations.

• Safety push stick, helping keep hands away from the cutterblock during certain jointing operations.

Why Choose the M4P FS200EDS Planer Thicknesser from Probois Machinoutils?

The M4P FS200EDS planer thicknesser with helical cutterblock and integrated dust extraction is an excellent choice for woodworkers looking for a compact, versatile and well-equipped woodworking machine.

Its 18-insert helical cutterblock, 210 mm maximum thicknessing height and integrated chip extraction system are key advantages for carrying out routine woodworking operations in a limited space.

At Probois Machinoutils, we offer a selection of woodworking machinery for demanding DIY enthusiasts and professionals, along with technical advice on machine operation and maintenance.

Discover the M4P FS200EDS 230V planer thicknesser and enjoy a compact, high-performance machine for accurate jointing and thicknessing.
