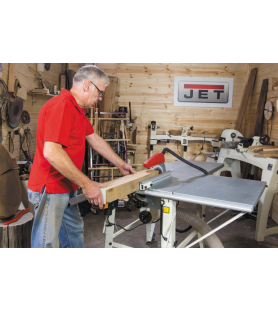

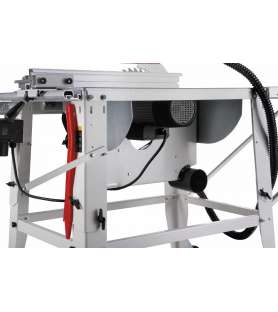

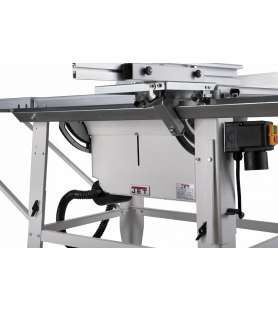

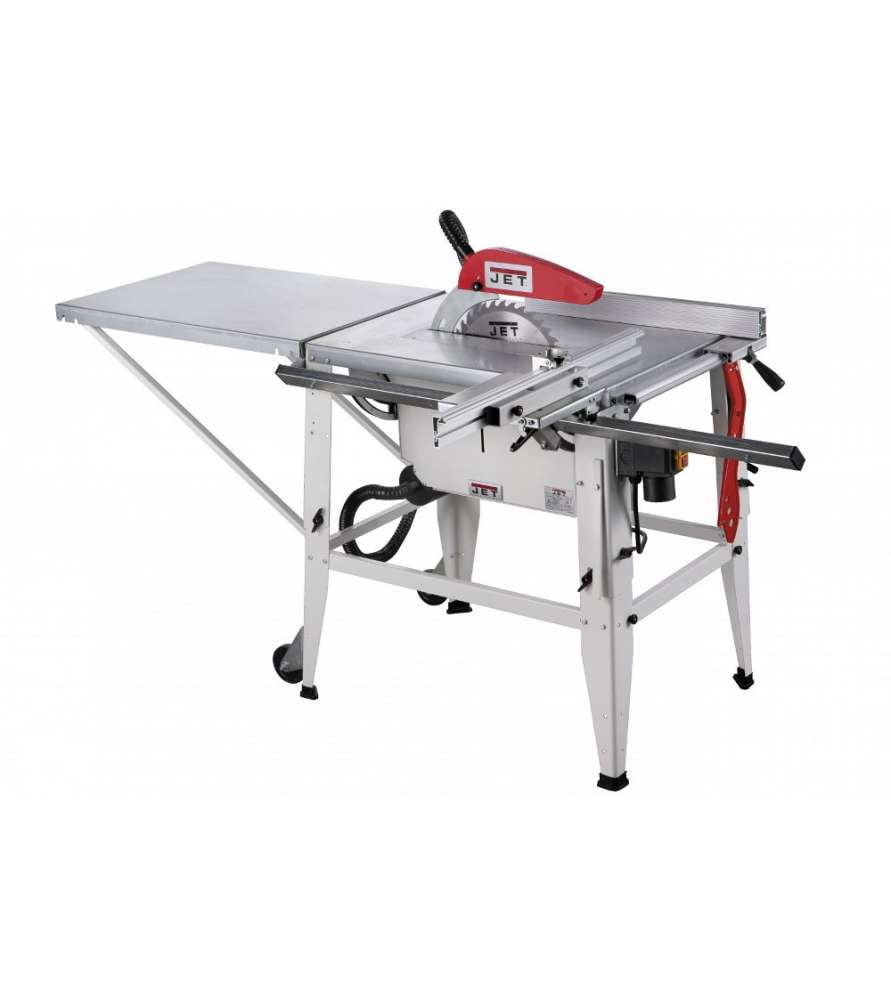

General description of the Construction Circular saw JET JTS-315SP :

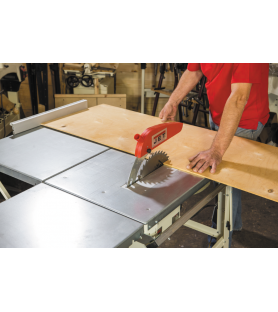

• Equipped with its mobile table, panel cuts will be easier.
• Just like the JTS 315LA, its rigid but light base will allow you to move it effortlessly, while maintaining the rigidity necessary for quality work.
• This saw combines simplicity of design, very wide functionality, mobility, reliability, high power (especially in the three-phase version) and large sawing depth (up to 90 mm).

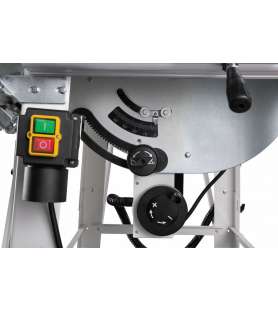

• Unlike most specialty construction saws, the JTS-315SP has adjustable tilt and depth of cut

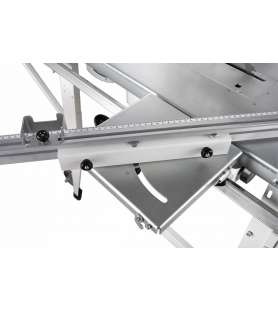

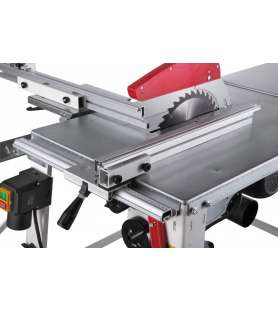

• The JTS-315SP also has a movable table that moves on roller bearings along the main table.

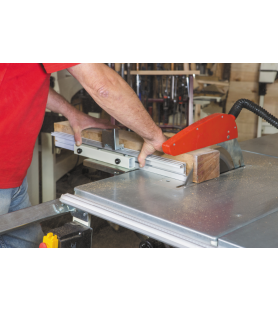

• The parallel stop moves along the guide profile and has an eccentric clamp for quick and secure fixing.

The JET JTS-315SP construction circular saw comes with:

• User Manual
• Exploded view
• Supplied with a Ø315 blade
• Safety push button
• Service keys

Technical characteristics of the JET JTS-315SP construction circular saw:

• Motor power: 400V / 1.6 kW
• Blade rotation speed: 2950 rpm
• Blade diameter: 315 mm
• Blade bore: Ø 30 mm
• Blade tilt: 0° - 45°
• Cutting capacities (90°/45°): 90mm / 60mm
• Cutting width: 310 mm
• Dimensions table: 800 x 550 mm
• Rear extension dimensions: 800 x 550 mm
• Right extension dimensions -
• Dimensions Mobile Table: 250 x 230 mm
• Max Cutting Length: 600 mm
• Speed ​​of rotation Scorer rpm -
• Scoring dimensions (outside Ø / Bore) -
• Overall dimensions: 2050 x 970 x 1000 mm
• Weight: 69kg
