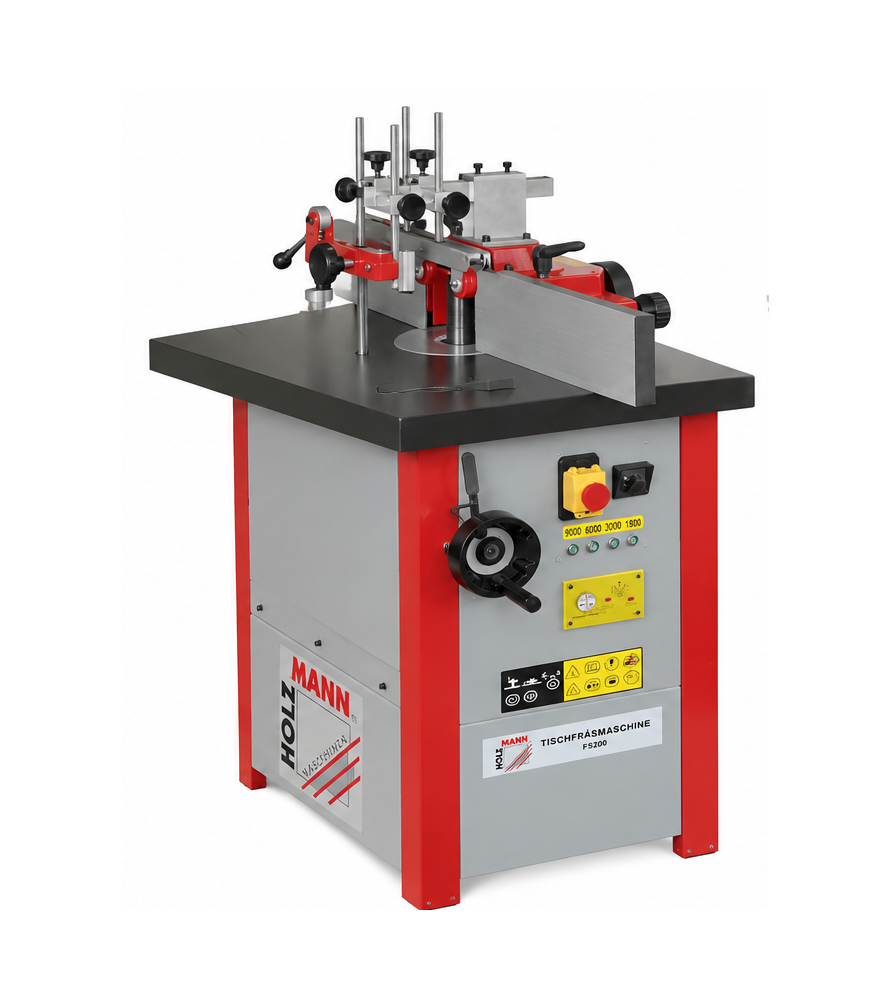

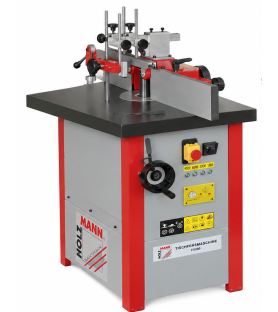

Holzmann FS200 400V spindle moulder: power, stability and versatility
The Holzmann FS200 400V is a stationary spindle moulder designed for users looking for a robust, easy-to-use machine with enough power for a wide range of woodworking and moulding operations.
This 400V three-phase version delivers 2800 W in S1 duty and 3750 W in S6 duty. Its sturdy construction combined with a large 690 x 480 mm cast-iron table provides excellent stability while machining.
30 mm spindle and 4 spindle speeds
The Holzmann FS200 is equipped with a 30 mm diameter spindle offering 100 mm of vertical travel and a maximum clamping height of 105 mm.
Its 4 spindle speeds of 1800, 3000, 6000 and 9000 rpm allow the speed to be adapted to the tooling diameter and the type of work being carried out.
The selected speed can be easily identified thanks to the LED speed indicator, while the spindle height can be conveniently adjusted using the handwheel.
Large cast-iron table for comfortable and accurate work
The cast-iron worktable measures 690 x 480 mm and has a working height of 900 mm. Its solid construction contributes to the stability of the machine and provides reliable support when guiding workpieces during moulding operations.
The spindle moulder fence is equipped with independently adjustable aluminium fence plates and a workpiece hold-down system.
Tooling diameter up to 190 mm
The FS200 accepts tooling up to 190 mm in diameter above and below the table. Its 200 mm table opening allows the use of a wide range of cutter blocks and suitable tooling for a 30 mm spindle.
This makes the machine suitable for a wide variety of operations including profiling, moulding, rebating and grooving on different types of wooden workpieces.
Optional sliding table
The Holzmann FS200 is supplied without a sliding table. A compatible sliding table can be purchased separately and fitted to the machine.
This allows you to purchase the spindle moulder on its own and add the sliding table later according to your workshop requirements.
Technical specifications of the Holzmann FS200 400V spindle moulder
| Model |
Holzmann FS200_400V |
| Power supply |
400V three-phase |
| Motor power S1 |
2800 W |
| Motor power S6 |
3750 W |
| Spindle diameter |
30 mm |
| Spindle thread |
M10 |
| Spindle speeds |
1800 / 3000 / 6000 / 9000 rpm |
| Number of speeds |
4 |
| Spindle travel |
100 mm |
| Maximum clamping height |
105 mm |
| Maximum tool diameter above the table |
190 mm |
| Maximum tool diameter below the table |
190 mm |
| Table opening |
200 mm |
| Table dimensions |
690 x 480 mm |
| Table height |
900 mm |
| Fence dimensions |
360 x 120 mm |
| Dust extraction outlet |
100 mm |
| Net weight |
150 kg |
| Gross weight |
155 kg |
| Packaging dimensions |
730 x 520 x 680 mm |
| EAN |
9120039900568 |
Standard equipment supplied with the Holzmann FS200
- Spindle moulder guard
- Aluminium fence plates
- Workpiece hold-down system with rollers
- Spindle protection
- Sanding attachment
Why choose the Holzmann FS200 400V?
- Powerful 2800 W S1 three-phase motor
- Standard 30 mm spindle
- 4 spindle speeds up to 9000 rpm
- Large and robust cast-iron table
- Convenient spindle height adjustment by handwheel
- LED spindle speed indicator
- Accepts tooling up to 190 mm in diameter
- Optional sliding table can be added later
- 100 mm dust extraction outlet
The Holzmann FS200 400V spindle moulder is an excellent choice for workshops looking for a genuine 30 mm spindle moulder combining power, stability and versatility, while retaining the option of adding a sliding table at a later date.
