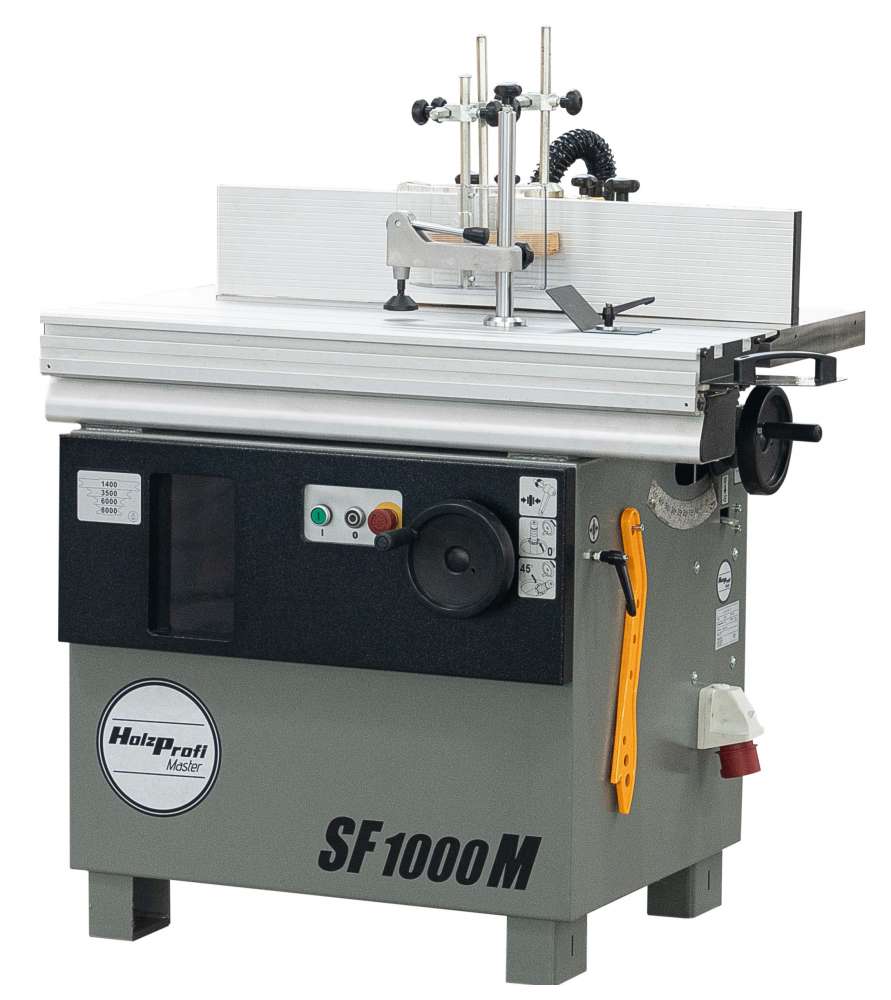

Holzprofi SF1000M-MONO Spindle Moulder with Tilting Spindle

The Holzprofi Master SF1000M-MONO is a robust and versatile spindle moulder designed for joinery and woodworking workshops as well as demanding users looking for a high-performance machine operating on a 230V single-phase power supply.

It combines a solid construction with a 1000 x 350 mm cast-iron table, a 30 mm spindle and a 1000 x 360 mm aluminium sliding table. Its 3 kW / 4 HP S1 motor provides ample power for a wide range of profiling, moulding, grooving, rebating and joinery operations.

Tilting Spindle from -5° to +45°

One of the major advantages of the SF1000M-MONO is its spindle tilting from -5° to +45°.

This wide tilting range considerably increases the machining possibilities compared with a spindle moulder equipped with a fixed vertical spindle. It makes it possible to produce more complex profiles and joints and to adapt the cutting angle to a wide variety of woodworking applications.

The spindle has a diameter of 30 mm, a total height of 130 mm, including 100 mm usable height, and a vertical travel of 140 mm.

4 Spindle Speeds up to 9000 rpm

The Holzprofi SF1000M-MONO features 4 mechanical spindle speeds: 1400, 3500, 6000 and 9000 rpm.

This speed range allows the spindle speed to be adapted to the diameter and type of cutter used as well as to the machining operation. Speed selection is carried out by belt change.

1000 x 360 mm Aluminium Sliding Table

The machine is supplied as standard with a 1000 x 360 mm aluminium sliding table positioned close to the cutting area.

This sliding table is a major advantage when machining workpieces requiring controlled movement past the cutter and increases the machine's versatility for a wide range of joinery operations.

An eccentric workpiece clamp is also included to help secure the workpiece during suitable machining operations.

Cast-Iron Table for Excellent Stability

The SF1000M-MONO features a large 1000 x 350 mm cast-iron table. Its solid construction contributes to machine stability and provides a substantial working surface for guiding timber and other wooden workpieces.

The working height is 890 mm.

The adjustable aluminium infeed and outfeed fence plates allow the fence to be adapted to the machining operation and cutter dimensions.

Large Spindle Moulder Tool Capacity

The SF1000M-MONO accepts cutters with a maximum diameter of 175 mm below the table and up to 220 mm inside the cutter guard.

Combined with the 30 mm spindle, 100 mm usable spindle height and four available speeds, these capacities allow the use of a wide range of spindle moulder tooling compatible with the machine specifications.

Powerful 3 kW / 4 HP Single-Phase 230V Motor

The SF1000M-MONO version is powered by a 3 kW / 4 HP S1 motor – 230V single-phase / 50 Hz.

This makes it a particularly attractive solution for users looking for a powerful and well-equipped spindle moulder in a workshop where a three-phase electrical supply is not available.

100 mm Dust Extraction Port

A 100 mm diameter dust extraction port allows the spindle moulder to be connected to a suitable dust collector to efficiently remove chips and dust produced during machining.

Technical Specifications of the Holzprofi SF1000M-MONO

Standard Equipment

• 30 mm spindle tilting from -5° to +45°;
• 1000 x 360 mm aluminium sliding table;
• cast-iron worktable;
• 4 mechanical spindle speeds;
• belt-driven speed change;
• eccentric workpiece clamp;
• adjustable aluminium infeed and outfeed fence plates;
• 100 mm dust extraction port;
• 3 kW / 4 HP single-phase 230V motor.

Optional Accessories for the SF1000M

The spindle moulder can also be fitted with various optional accessories to adapt the machine to different woodworking operations:

• safety bar fence;
• tenoning plate;
• spindle work guide;
• mobility kit.

A Powerful 230V Spindle Moulder for Demanding Workshops

With its 3 kW single-phase motor, tilting 30 mm spindle, four spindle speeds, cast-iron table and 1000 mm aluminium sliding table, the Holzprofi Master SF1000M-MONO offers an excellent combination of capacity and versatility for joiners, cabinetmakers and experienced woodworkers looking for a capable spindle moulder without requiring a three-phase power supply.

Its tilting spindle and generous tooling capacities extend its possibilities beyond conventional spindle moulding operations, making it suitable for a wide variety of profiling, moulding and woodworking joint applications.
