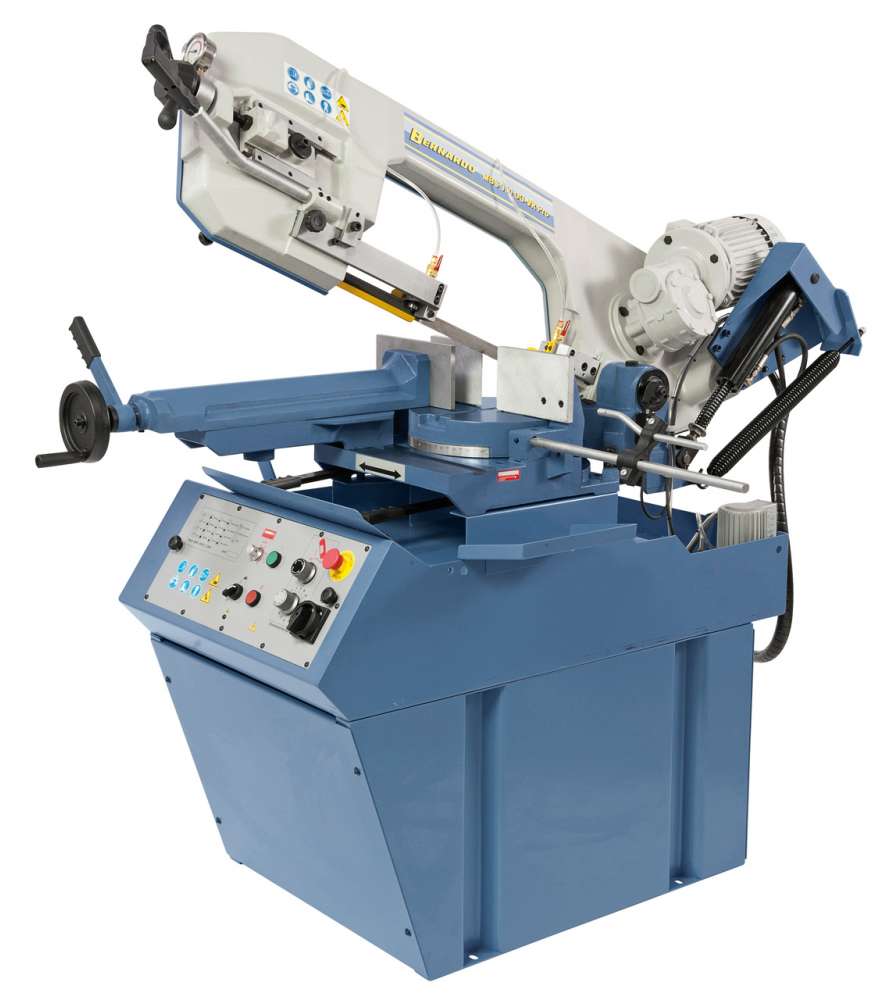

General description of the Bernardo MBS350DG-VR PRO double miter metal band saw:

• Professional band saw for locksmiths, machine and mold building etc.
• Large arm in dimensionally stable ductile iron
• Cutting speed variator for optimum adaptation to the workpiece (20 - 80 m / min)

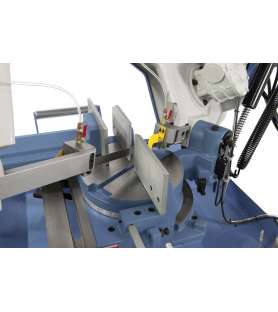

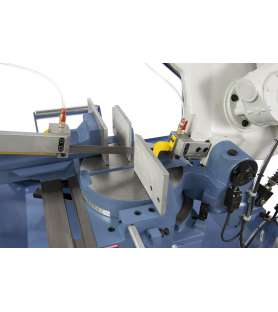

• The groove of the turntable is always aligned with the bow: whatever the cutting angle, there is no risk of the table being damaged.
• Combined blade guide with bearings and jaws with carbide inserts
• Rugged construction for quiet and vibration-free operation

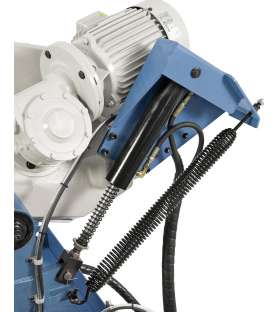

• Gradual lowering of the bow by hydraulic cylinder
• Gearbox with hardened and ground worm shaft and bronze impeller
• Robust gray cast iron vice with stopper, ideal for series cuts
• Automatic cut-off at the end of the stroke
• Tilting bow for double miter cuts left (-45 °) and right (+ 60 °)

Technical characteristics of the Bernardo MBS350DG-VR PRO double miter metal band saw:

• Cutting capacity 90 ° round / square: 270 mm / 260 x 260 mm
• Cutting capacity 90 ° flat: 350 x 240 mm
• Cutting capacity 45 ° D round / square: 230 mm / 210 x 210 mm
• Cutting capacity 45 ° D flat: 230 x 150 mm
• Cutting capacity 45 ° G round / square: 200 mm / 170 x 170 mm
• Cutting capacity 45 ° G flat: 200 x 140 mm
• Cutting capacity 60 ° D round / square: 140 mm / 140 x 140 mm
• Working height: 975 mm
• Ribbon dimensions: 2925 x 27 x 0.9 mm
• Cutting speeds: 20 - 80 m / min

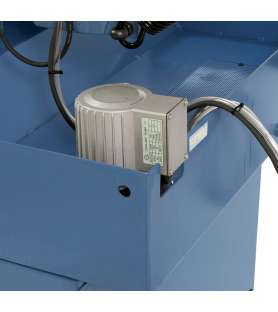

• Watering pump S1 100%: 100 W
• Continuous power S1 100%: 1.9 kW
• Power S6 40%: 2.8 kW
• Voltage: 400V
• Machine dimensions (W x D x H): 2000 x 1300 x 2000 mm
• Weight (approx.): 550 kg

The Bernardo MBS350DG-VR PRO double miter metal band saw is delivered with:

• Ribbon
• Stopper
• Basement
• Ribbon tension gauge
• Carbide insert blade guide
• Quick-release vise
• Watering device
• Hydraulic cylinder for lowering the bow
• Motor circuit breaker
• Automatic cut-off at the end of the stroke
