Advantages of the JET JPT-310 planer thicknesser :

• Quick change from jointer to planer by switching input and output tables simultaneously
• Machined jointer table, in gray cast iron guaranteeing optimal sliding of the workpieces
• Disengageable wood feed in jointer position
• Safety on the protection of the shaft in the planer position

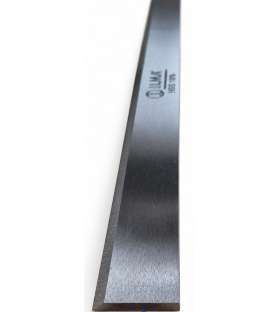

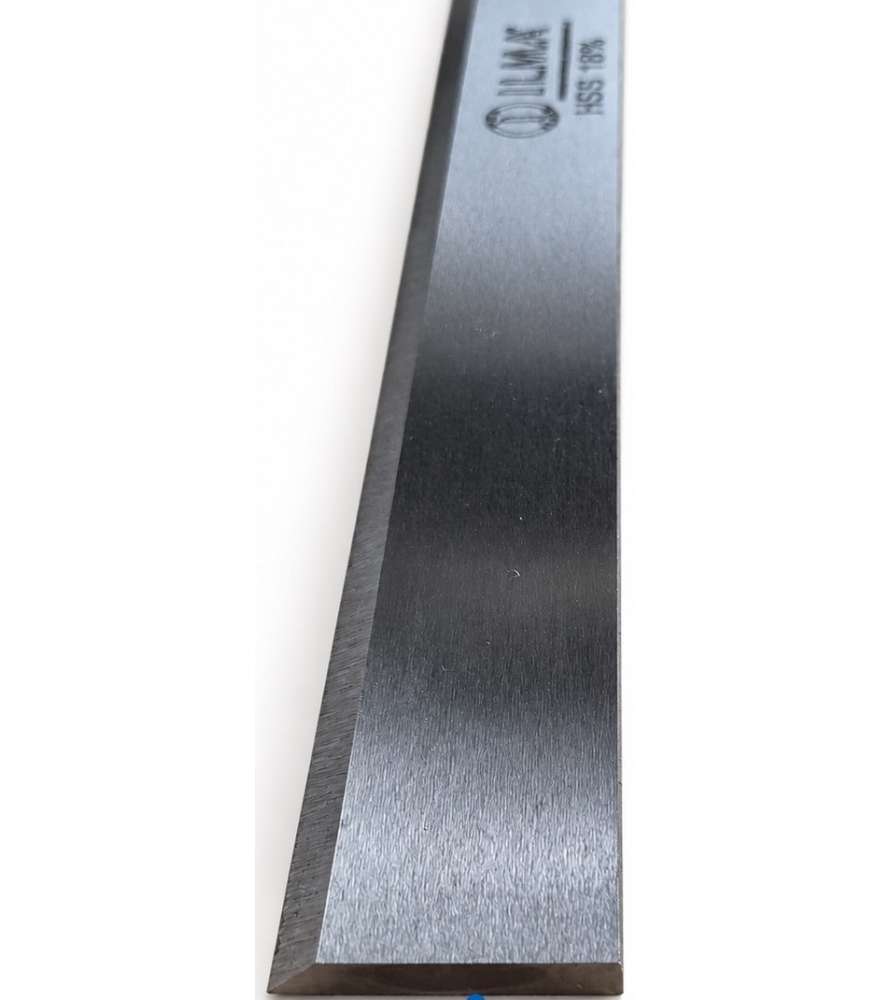

• Resharpenable blades 310 x 25 x3.0 mm

The JET JPT-310 planer thicknesser comes with:

• Set of 3 mounted blades
• 100mm suction nozzle
• Jointer Table Precision Guide
• Tiltable shaft protection
• push button

Technical characteristics of the planer thicknesser JET JPT-310:

• Motor power P1 - 400V: 3500W / S1 100%
• Max planing width : 307mm
• Maximum planing height: min 3 - max 225 mm
• Max. pass thickness (Planing) 4.5 mm
• Max thickness of pass (Thicknesser): 3 mm
• Advance speed: 7 m/min - disengageable
• Segmented input roller diameter: yes
• Steel output roller diameter: yes
• Rubber output roller diameter: 32 mm
• Length of the jointer table: 1400 x 310 mm
• Minimum work piece length: 150 mm
• Rotation speed - planer: 5,500 rpm.
• Shaft diameter: 70mm
• Number of irons: 3
• Planing guide (H x W): 150 x 1100 mm
• Guide tilt: +45° / 90°
• Suction connection diameter: 100 mm
• Dimensions: 1400 x 750 x 1000mm
• Net weight (kg): 270.00 kg
