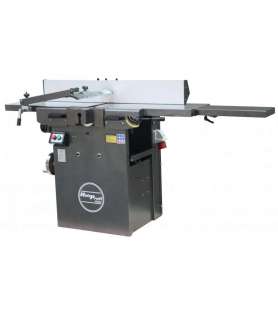

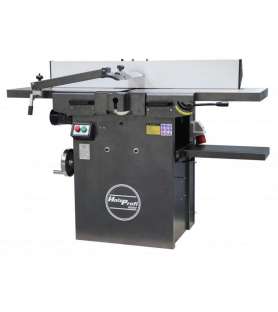

General description of the Holzprofi Maker DR310 jointer and planer with helical shaft:

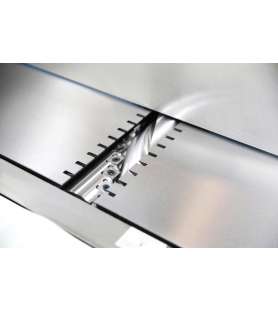

• Reduced noise stress (by approximately 50%) thanks to a standard helical knife planer shaft and up to 20 times longer knife life (thanks to reversible carbide inserts that can be reused four times)
• Advantage of reversible carbide inserts: in the event of damage, the individual knives can be replaced or rotated

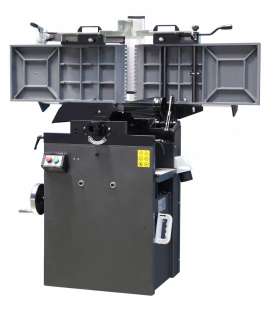

• The jointing tables fold into the rear of the machine, allowing space-saving installation
• Carbide knives guarantee crack-free planing results and optimal surface quality for all types of wood
• Simultaneous lifting of the planing tables for maximum ease of use
• Table feed can be deactivated for planing

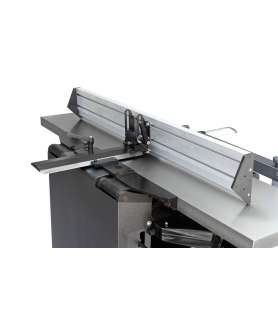

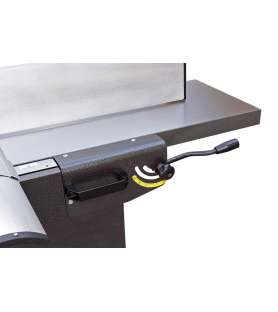

• Anodized aluminum guide, tiltable from 90° to 45°

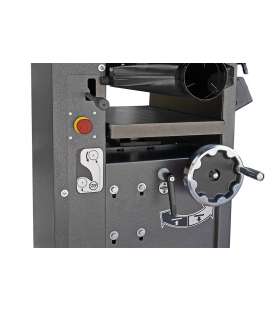

• Planing table on central column and support for precise planing

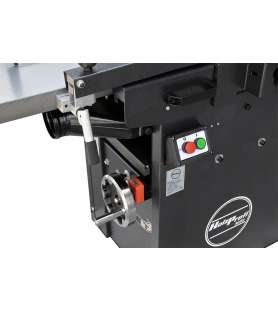

• Numerous protection devices: on/off switch with undervoltage coil, CE-compliant shaft protector, limit switch against accidental starting
• Semi-professional range machine

Technical characteristics of the Holzprofi DR310 jointer and planer:

• Cast iron table: Simultaneous opening, length 1,400 mm
• Jointing width: 310 mm
• Planing height: 230 mm
• Planing table: 600 x 310 mm
• Perpendicular guide: 1,100 x 152 mm

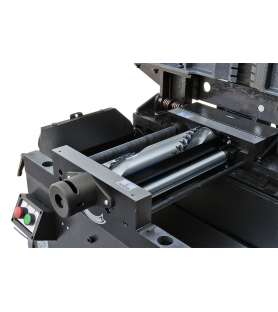

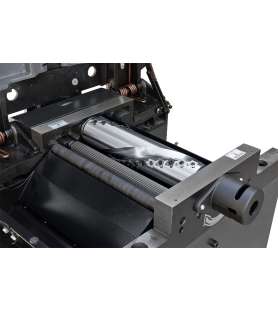

• Shaft Ø: 75 mm with 2 propellers fitted with 30 carbide inserts 15x15x2.5 mm with rounded corners
• Feed speed: 6 m/min
• Max chip intake: 3 mm in planing / 4 mm in planing
• Brake motor: 3kw / 4CV / 50Hz / Mono 230V
• Rotation: 4,500 rpm
• Ø of suction nozzle: 100 mm
• Compliant: CE

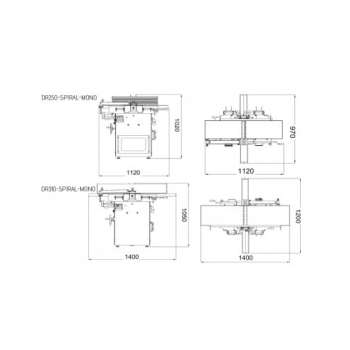

• Dimensions: 1400 x 640 x 920 mm
• Weight: 190 kg
• Packaging: 1,450 x 640 x 950 / 208 kg

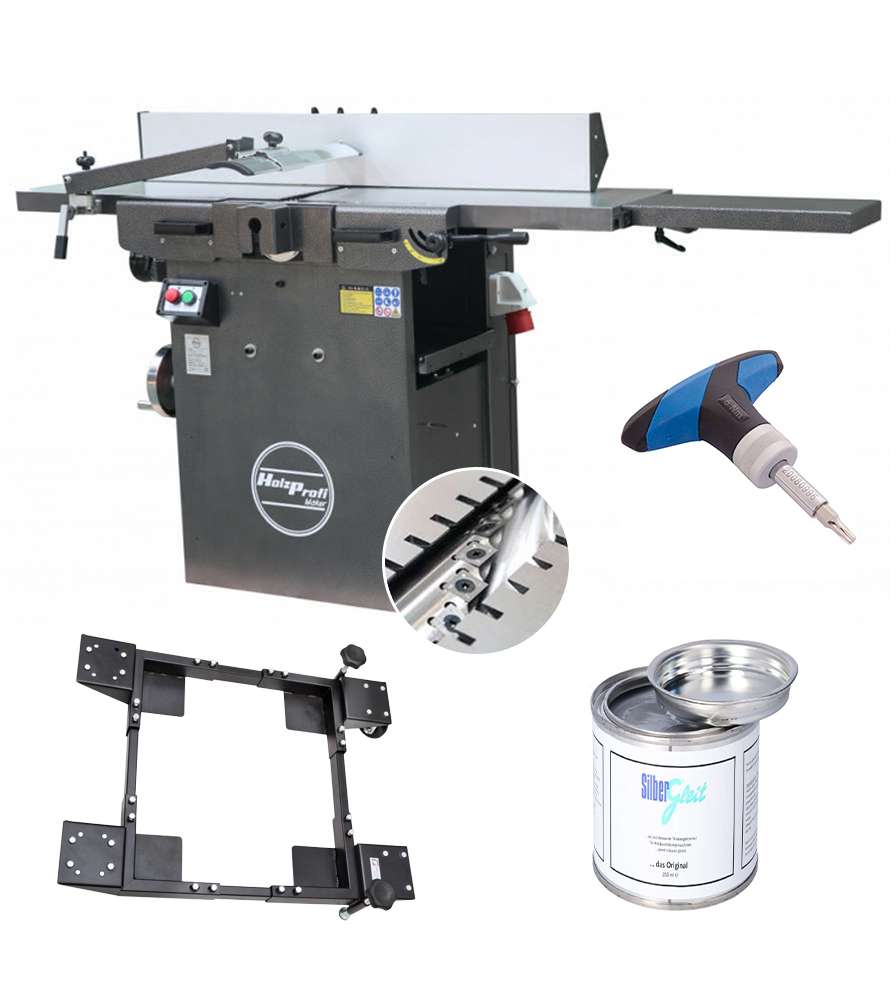

The Holzprofi Maker DR310 machine comes with :

• a spiral planer arbor with reversible carburetor inserts.

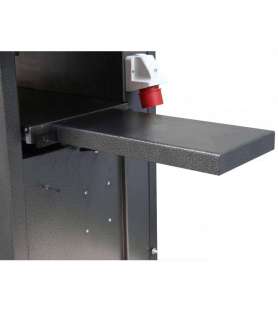

• INCLUDED! 1 table extension and its support for inserting the planer or thicknesser into/out of the planer.
• Push rod
• + SPECIAL OFFER FOR DELIVERY IN DECEMBER, including the transport kit, 1 kg container of wood slider, and torque wrench!

Important recommendation from Probois for many woodworking machines :

Before starting, always check the inside of your machine, see if the belts are put on correctly, tighten the bolts, etc. because different transports cause vibrations.

Always use an extension cord with a 2.5² wire size

The extension cord must not exceed 10 meters and must not be coiled

The use of drums, triplets or multi-grips is PROHIBITED.

Have a standard electric meter with neutral and earth

Always work with a chip vacuum cleaner for your health and for the warranty of the machine

Always grease cast iron tables with wood slider

Always work with protections in place

Do not work with unsharpened or dull irons, this can damage the mechanism, the feed of the planer, break the belt

This machine is exactly the same as the Bernardo FS310PS helical shaft planer and jointer
