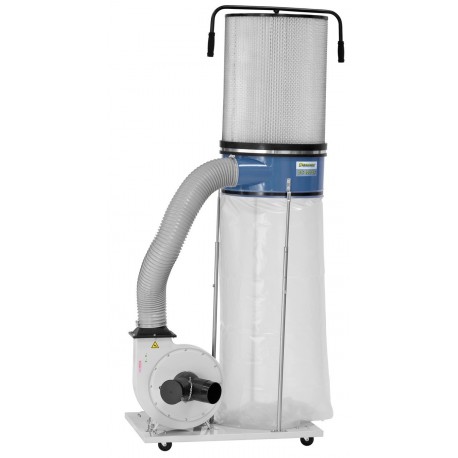

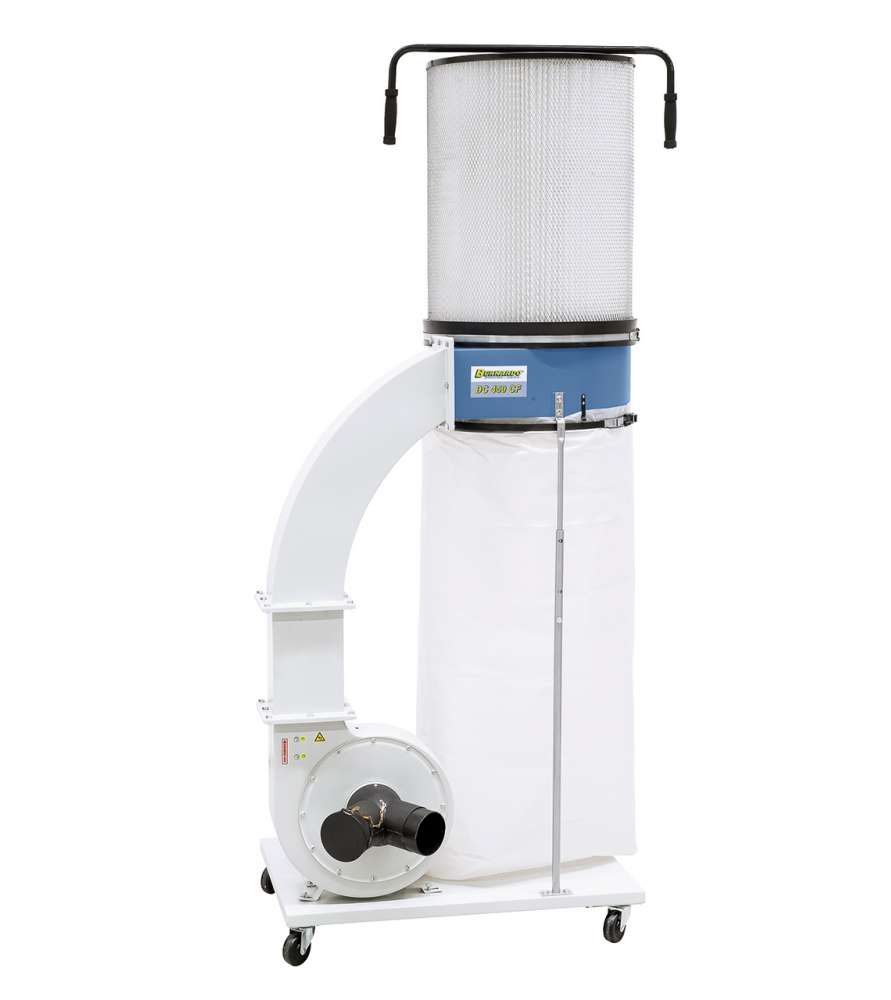

Dust collector Bernardo DC450CF
Including €2.50 for ecotax
The Bernardo DC450CF dust collector equipped with an FP2 filter cartridge offers a suction capacity of 2800 m³ / h and storage of 300 liters of chips!
A dust collector is essential in woodworking and carpentry, it sucks dust and wood chips, protects your machine ensuring its guarantee and above all protects the health of the user!
But how to make the right choice of dust collector?
The more the dust collector has a high suction flow, the better it performs. The higher the airflow, the more suitable and powerful the motor is.
For small models of woodworking machines such as planer-jointers up to 200 mm wide, small band saws, etc. .. the choice can be made on an entry-level dust collector.
On the other hand, the larger the size of the machines on which the dust collector is to be connected, the more it will be necessary to choose a dust collector with a high power. suction. For example, a planer-jointer with a width of 300 mm produces large wood chips and in large quantities, if the dust collector is undersized, unsuitable, he will not be able to extract what the machine asks him to do. the stuffing ensured, let alone the damage to the two machines!
Take note of the characteristics of this dust collector Bernardo DC450CF!
General description :
- Standard with FP2 filter cartridge
- High airflow thanks to the large filtration area for increased suction power
- Connection of stationary or mobile wood machines
- Increases the performance of woodworking machines
- Increased mobility with the standard roller chassis
- Constant suction power even during prolonged operation
Technical specifications of dust collector Bernardo DC450CF:
- Capacity: 2,800 m3 / h
- Filtering surface: 4,0 m²
- Low pressure max. : 1,800 Pa
- Inlet diameter: 1 x 130/2 x 100 mm
- Bag volume: 300 liters
- Idle speed: 2.950 rpm
- Motor power output S1 100%: 1.5 kW (2.0 HP)
- S6 engine power input 40%: 2.1 kW (2.8 hp)
- Voltage: 230 V or 400 V optional / 50 Hz
- Size of the machine (W x D x H): 860 x 670 x 2210 mm
- Weight approx. : 49 kg
This dust collector Bernardo DC450CF comes with:
- The FP2 filter cartridge
- Receiver bag
- Y adapter: 1 x 130 mm / 2 x 100 mm
- Moving wheels
- Supplied without hose diameter 100 mm (see optional)
