Main function

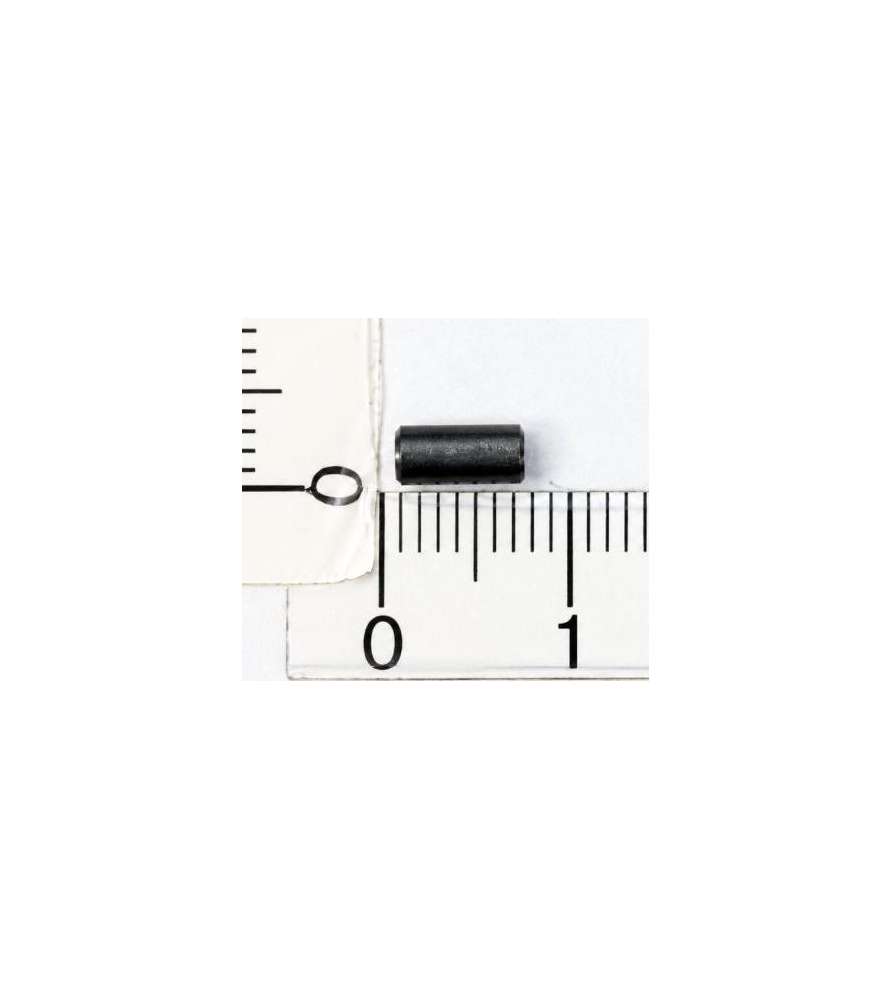

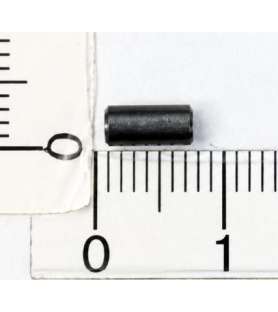

The Ø3 x 6 mm safety pin for Scheppach, Woodster and Parkside air compressors – Ref. 5906101007 is a small mechanical component designed to secure, position or retain a part of the compressor.

It helps keep a component in its intended position and reduces the risk of movement or disassembly while the compressor is operating.

With a diameter of 3 mm and a length of 6 mm, this pin is designed to fit into a suitable housing.

Its exact function depends on its location within the compressor and the mechanism with which it is associated.

When should the safety pin be replaced?

The safety pin for Scheppach, Woodster and Parkside air compressors – Ref. 5906101007 should be replaced in the following cases:

• Broken or sheared pin: it can no longer perform its retaining function.

• Bent or deformed pin: it can no longer ensure correct positioning.

• Missing pin: the relevant component may no longer be properly secured.

• Worn or loose pin: it can no longer be reliably retained in its housing.

• Replacement required after disassembly: particularly if the pin was damaged during removal.

It is important to replace this component with a pin of identical dimensions and specifications to ensure the correct operation of the associated mechanism.

Warning: The part number alone does not confirm the exact location of this pin or its safety function within the compressor. Consult the exploded parts diagram for the relevant model before carrying out any work.

This safety pin for Scheppach, Woodster and Parkside air compressors is suitable for the following models:

• Scheppach HC24

• Scheppach HC50

• Scheppach AC240

• Scheppach HC51

• Scheppach AC500

• Scheppach HC54 — from 11/2022

• Scheppach HC50e

• Scheppach HC24e

• Scheppach HC50S

• Scheppach HC08

• Scheppach HC80V

• Scheppach HC50-10

• Scheppach DAC50

• Scheppach HC63

• Scheppach HC65 — up to 6/2025

• Scheppach HC65 — from 7/2025

• Scheppach HC53DC

• Scheppach AC503D

• Scheppach HC500

• Scheppach ACP500-BE

• Scheppach GK520DCZ

• Scheppach GK520DC

• Scheppach GK520TI

• Scheppach HC55DC

• Scheppach HC52DC — up to 10/2018

• Scheppach HC52DC — from 10/2018

• Scheppach HC24DC

• Scheppach HC100DC

• Scheppach HC110DC

• Scheppach HC120DC

• Woodster CB24

• Woodster CB50

• Woodster CB51

• Parkside PKO 270 A1

• Parkside PKO 500 A2 — 2018

• Parkside PKO 500 A2 — 2019

• Parkside PKO24A1

• Parkside PKO24B2

• Parkside PKO2410B2

• Kity CB5000

• Mac Allister CB24

• Mac Allister CB50
