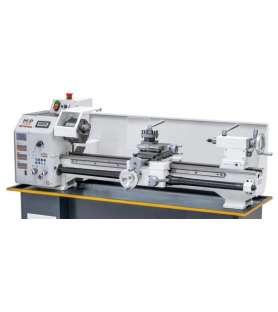

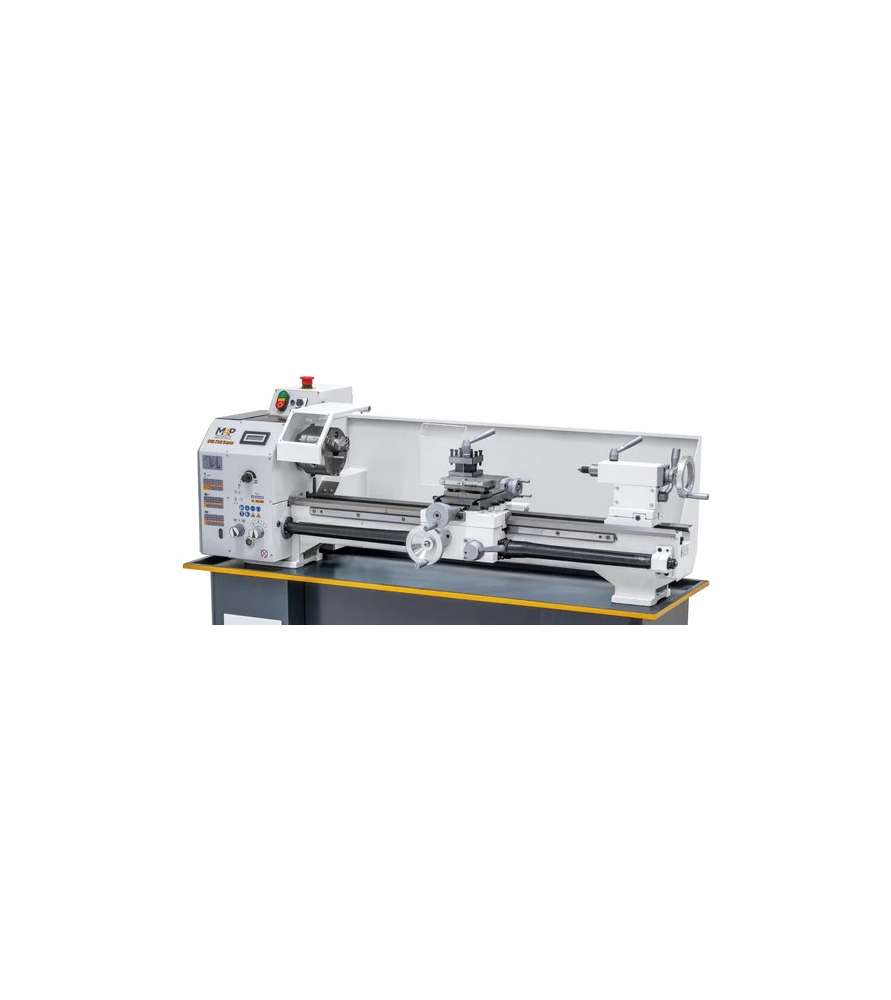

M4P DM 750 Vario Metal Lathe – Precision, Versatility and Variable Speed

The M4P DM 750 Vario metal lathe is a versatile metalworking machine designed for mechanical workshops, maintenance applications, technical training and demanding hobby users.

With a 750 mm distance between centres, a 250 mm swing over bed and a 1100 W single-phase motor, this lathe is suitable for a wide range of turning operations on steel, non-ferrous metals and engineering plastics.

Its electronic variable speed control and digital speed display allow the spindle speed to be adjusted according to the workpiece diameter, material and machining operation.

Electronic Variable Speed Control with Digital Display

The M4P DM 750 Vario features an electronic speed control system for smooth and progressive spindle speed adjustment.

Two speed ranges are available:

• 50–1000 rpm

• 100–2000 rpm

This configuration allows the cutting speed to be adapted to different machining operations.

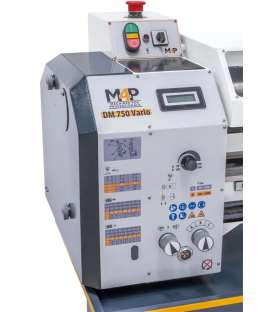

The digital spindle speed display provides clear speed readings and makes adjustments easier during operation.

Precision Spindle and Robust Construction

The spindle is supported by two adjustable precision tapered roller bearings, designed to provide accurate guidance during machining.

The manufacturer specifies a spindle nose concentricity accuracy better than 0.015 mm.

With a 135 mm bed width and a weight of approximately 138 kg, the M4P DM 750 Vario offers a solid construction suitable for general metalworking and precision turning applications.

The 26 mm spindle bore also allows suitable bar stock to pass through the spindle.

Automatic Longitudinal Feed and Thread Cutting

The M4P DM 750 Vario metal lathe is equipped with a leadscrew for thread cutting and automatic longitudinal feed.

It offers:

• 21 metric thread pitches from 0.2 to 4 mm

• 21 imperial thread pitches from 8 to 56 TPI

• 6 longitudinal feed rates from 0.07 to 0.4 mm/rev

These features make the machine suitable for cylindrical turning, facing, longitudinal turning and thread cutting.

The feed and threading system provides versatility for producing and repairing mechanical components.

Suitable for Mechanical Workshops and Technical Training

The M4P DM 750 Vario is suitable for maintenance workshops, technical training centres and users who need to machine small and medium-sized metal components.

It can be used for machining:

• Steel, for manufacturing and repairing mechanical parts.

• Aluminium and other non-ferrous metals, for general turning applications.

• Engineering plastics, for producing bushes, spacers and specialised components.

Its practical control layout makes spindle speed adjustment and everyday machining operations easier.

Technical Specifications

Standard Equipment and Included Accessories

The M4P DM 750 Vario metal lathe is supplied with the following equipment:

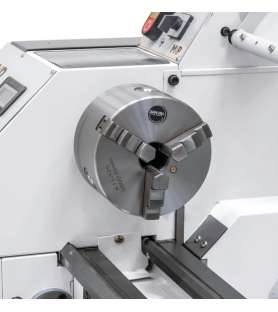

• 125 mm 3-jaw chuck (BC3-125).

• Fixed centres.

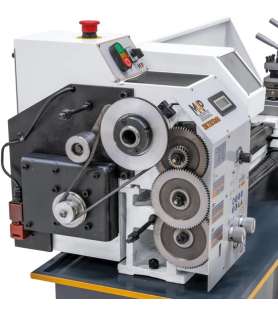

• Interchangeable gears for feeds and threading.

• 4-way tool post.

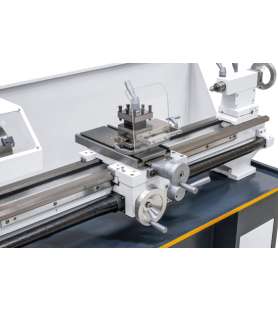

• Cross slide and swivelling compound slide.

• Digital spindle speed display.

• Chuck safety guard.

• Chip protection.

• Spindle protection.

• Maintenance tools.

Please note: The stated machine dimensions exclude the stand. A stand is not listed among the manufacturer's standard accessories.

Why Choose the M4P DM 750 Vario Metal Lathe?

The M4P DM 750 Vario metalworking lathe combines practical machining capacity, electronic variable speed control and a precision spindle in a compact and versatile machine.

Its 750 mm distance between centres, 1100 W single-phase motor, precision spindle bearings and metric and imperial threading capabilities make it an excellent choice for workshops requiring a reliable metal lathe for everyday machining operations.

Available from Probois Machinoutils, the M4P DM 750 Vario variable speed metal lathe is suitable for mechanical engineering, maintenance, component manufacturing and technical training.
