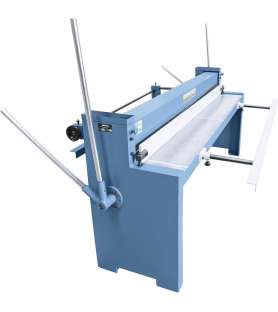

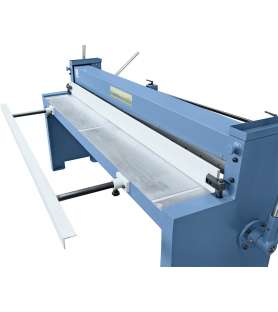

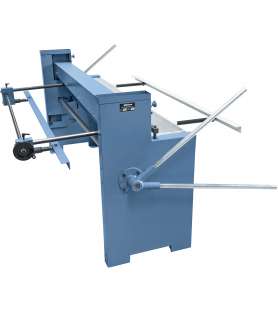

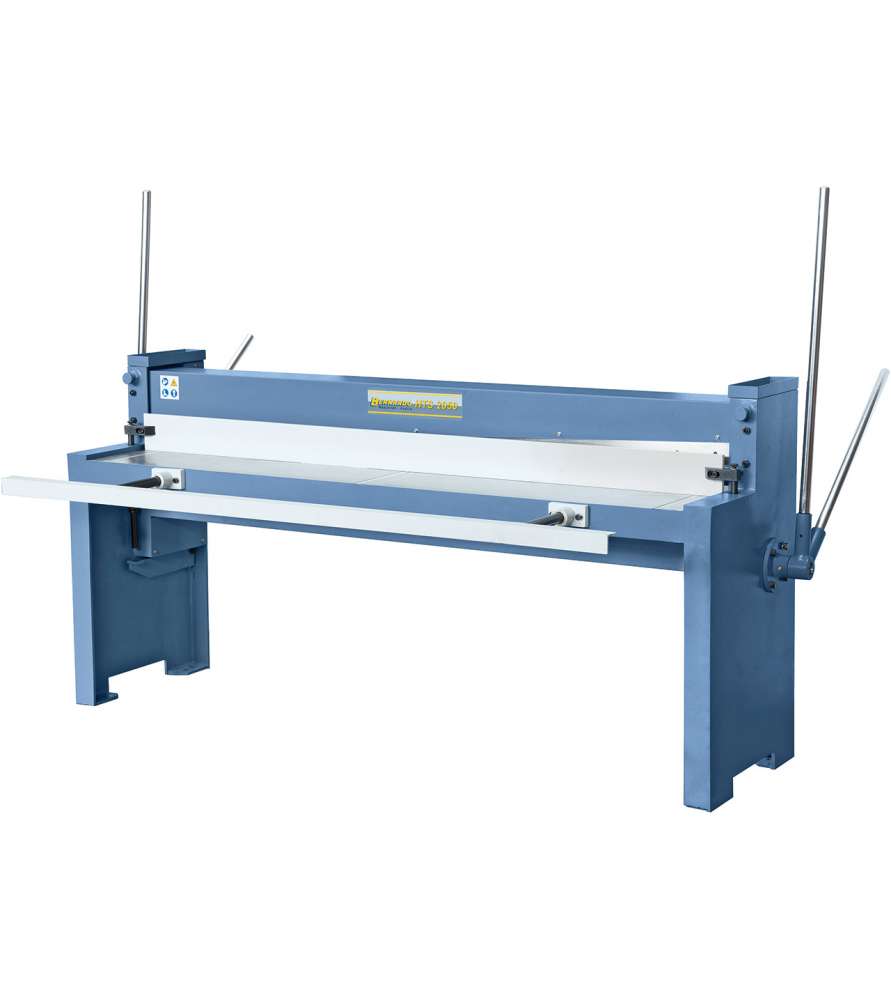

Advantages of the Bernardo HTS2050 manual metal shears :

• Modern design in stable construction
• Cutting movement takes place via laterally arranged levers
• Extendable support arm for secure placement of large format sheets
• Automatic downholder for fixing the sheet metal
• Work table with inserted measuring tapes and right-angled stop on both sides

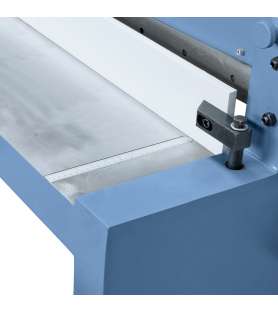

• Quick adjustment of the precise back gauge (450 mm) by handwheel
• Double-edged top and bottom blades made of quality steel guarantee a clean and burr-free cutting

The Bernardo HTS2050 manual metal shears are supplied with :

• Downholder
• Backgauge
• Knives made of tool steel

Technical specifications of the Bernardo HTS2050 manual metal shears :

• Cutting length : 2045 mm
• Sheet thickness max. (400 N / mm2) : 1,25 mm
• Table height : 800 mm
• Backgauge : 0 - 450 mm
• Length : 2450 mm
• Depth* : 1250 mm
• Height : 1110 mm (1660 mm**)
• Weight approx. : 540 kg
• * with backgauge
• ** with lever
