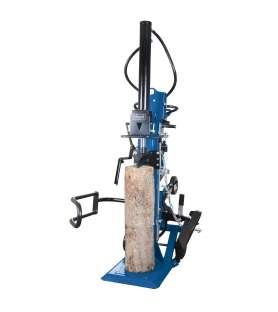

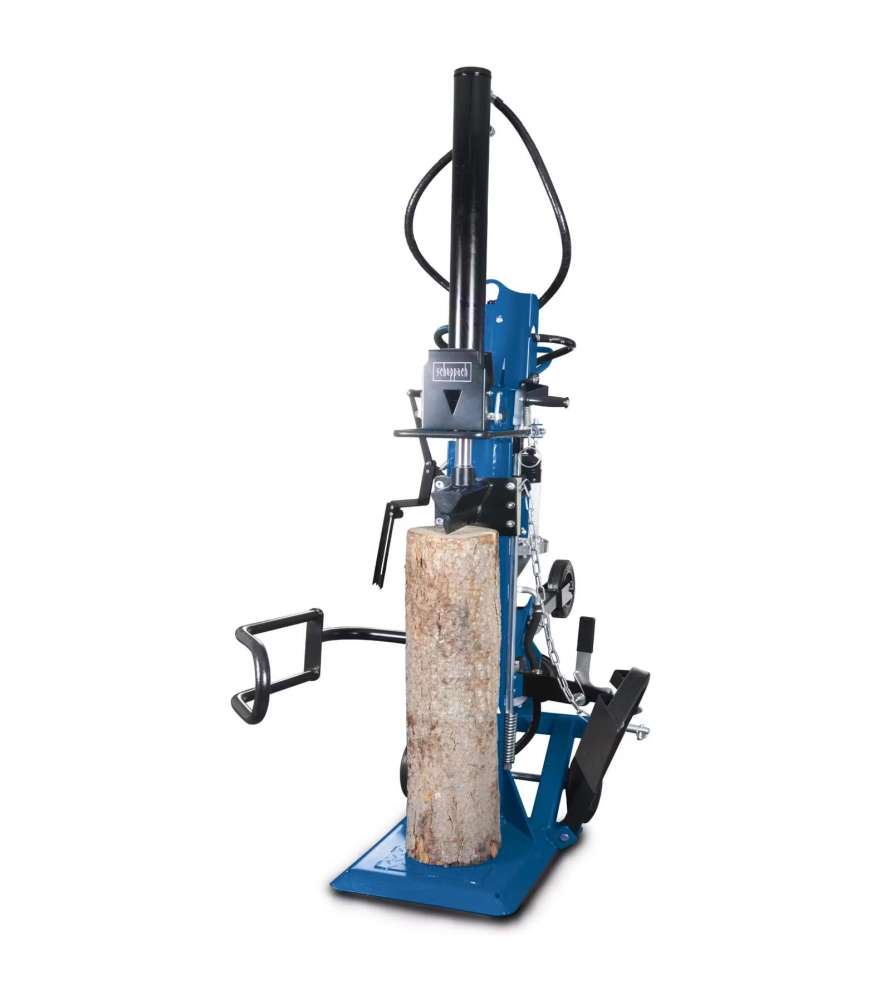

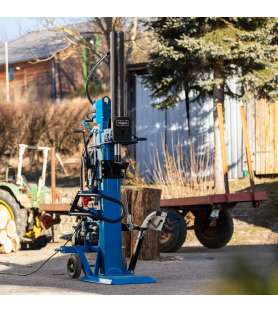

Scheppach HL3000GM 30 ton vertical log splitter

The Scheppach HL3000GM is a powerful vertical log splitter designed for demanding firewood processing and large logs.

With a maximum splitting force of 30 tons, it is suitable for splitting both hardwood and softwood and can handle logs measuring up to 1100 mm in length and 400 mm in diameter.

One of the main advantages of the HL3000GM is its dual drive system. The log splitter can be powered either by its 5500W three-phase 400V electric motor or by the PTO of a suitable tractor.

This versatility makes it particularly useful for users who want to operate the machine both near a three-phase electrical supply and directly in the field, woodland or firewood storage area.

Powerful 30 ton splitting force

With a maximum 30 ton splitting force, the Scheppach HL3000GM is designed for demanding log splitting applications.

Its substantial splitting power makes it suitable for processing both softwood and hardwood, including large sections of timber.

The splitting wedge moves vertically down onto the log while the timber is positioned on the low base plate.

This vertical design is particularly practical for heavy logs because they do not need to be lifted onto a high working table.

Splits logs up to 110 cm long

The Scheppach HL3000GM can process logs up to 1100 mm long.

This makes it particularly suitable for preparing large quantities of firewood and splitting longer logs.

The machine is designed for logs with a diameter of approximately 80 to 400 mm.

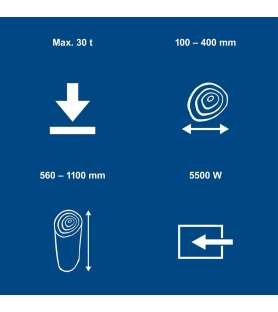

The combination of 110 cm maximum log length, 40 cm maximum diameter and 30 tons of splitting force provides substantial capacity for demanding firewood preparation.

Dual drive: 400V electric motor or tractor PTO

A major advantage of the Scheppach HL3000GM is its versatile dual drive system.

The log splitter can be operated in two different ways:

• with its 5500W three-phase 400V electric motor;

• via a tractor PTO at up to 540 rpm.

This provides considerable flexibility.

Where a suitable 400V electrical supply is available, the integrated electric motor allows the splitter to be operated without using a tractor.

For work in locations without access to three-phase electricity, the machine can instead be driven by a compatible tractor PTO.

Powerful 5500W three-phase motor

The Scheppach HL3000GM is equipped with a 5500W three-phase 400V electric motor.

The motor operates at a maximum speed of 1400 rpm and features thermal protection.

The electrical protection rating is IP54, suitable for the working environment of this type of machinery.

A suitable 400V three-phase electrical supply must be available and correctly sized for the power requirements of the machine.

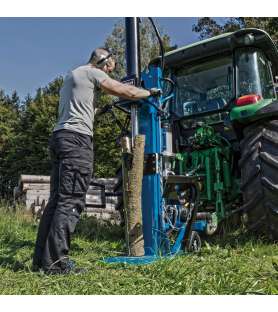

PTO drive up to 540 rpm

The second drive option for the HL3000GM is the tractor's power take-off (PTO).

The maximum PTO speed specified for the machine is 540 rpm.

Scheppach specifies a minimum tractor power requirement of 10.5 kW.

PTO operation is particularly useful when the log splitter needs to be used directly near the timber, in woodland or in other locations where a suitable electrical supply is unavailable.

High working speeds with PTO operation

The hydraulic system of the HL3000GM provides different travel speeds to suit the splitting operation.

With the electric drive, Scheppach specifies:

• forward speed 1: 37 mm/s;

• forward speed 2: 125 mm/s;

• return speed: 67 mm/s.

When operated via the PTO:

• forward speed 1: 57 mm/s;

• forward speed 2: 215 mm/s;

• return speed: 104 mm/s.

PTO operation therefore provides particularly fast hydraulic movement for efficient firewood processing.

Adjustable splitting stroke

The Scheppach HL3000GM features an adjustable splitting stroke.

This allows the wedge travel to be adapted to the length of the logs being processed.

When splitting shorter logs repeatedly, limiting the return stroke prevents the wedge from travelling unnecessarily through its complete range.

This can significantly reduce cycle times during repetitive splitting work.

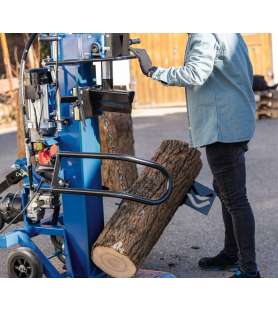

Integrated log lifter

The log lifter is a particularly useful feature on a log splitter of this size and capacity.

It uses the machine's hydraulic movement to help raise heavy logs and position them ready for splitting.

This reduces the amount of manual lifting required when handling large and heavy sections of timber.

The log lifter is supplied as standard with the Scheppach HL3000GM.

Low base plate for easier log handling

The HL3000GM features a low-positioned base plate.

Large logs can therefore be rolled or moved into the splitting area without having to be lifted onto a high working platform.

This is especially useful when handling logs up to 40 cm in diameter and 110 cm in length.

Combined with the integrated log lifter, the low base plate makes heavy timber considerably easier to handle.

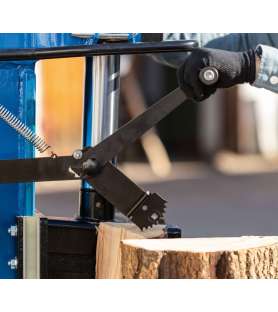

Log retaining system

The Scheppach HL3000GM features a log retaining system and retaining arms.

These components help position and control the timber during splitting.

They also help catch and support split sections instead of allowing them to fall immediately away from the machine.

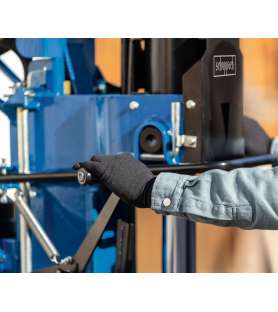

Two-hand safety control

The log splitter features a two-hand safety control system.

This requires the operator to use the designated controls during the splitting cycle, helping to keep both hands away from the hazardous splitting area.

This is an essential safety feature on a vertical log splitter capable of producing 30 tons of splitting force.

Safety devices must never be removed, bypassed or modified.

Robust steel construction

The Scheppach HL3000GM features a robust, torsion-resistant powder-coated steel construction.

This heavy-duty design is suitable for the substantial loads generated by the hydraulic system and 30 ton splitting force.

The hydraulic cylinder has a diameter of 120 mm and a stroke of 948 mm.

The hydraulic system operates at a pressure of 26.1 MPa.

30 litre hydraulic system

The HL3000GM has a hydraulic oil capacity of 30 litres.

The specified hydraulic oil type is HLP32.

The machine features components including an oil filter, oil level indicator and a drain plug positioned underneath the hydraulic tank.

The hydraulic oil level should be checked regularly to ensure correct operation and protect the hydraulic pump and other components.

3-point linkage for tractor use

For use with a tractor, the Scheppach HL3000GM is equipped with a 3-point linkage.

This is particularly useful for agricultural, forestry and large-property applications where the log splitter needs to be moved between different working areas.

The machine can therefore be transported more conveniently to the location where the timber is being processed.

Large wheels for easier manoeuvring

The HL3000GM is also equipped with large 250 mm diameter wheels.

These make it easier to manoeuvre the machine over short distances.

This is an important feature considering the substantial construction of the splitter and its net weight of approximately 368 kg.

Easier transport and storage

Despite its large working dimensions, the Scheppach HL3000GM has been designed to reduce its size for transport and storage.

The hydraulic cylinder can be lowered and the retaining arms can be folded.

This reduces the overall dimensions of the machine when it is not in use.

Technical specifications of the Scheppach HL3000GM

Supplied equipment

The Scheppach HL3000GM is supplied with equipment including:

• vertical log splitter;

• retaining arms;

• log lifter;

• retaining hook;

• PTO protection;

• additional transport wheel;

• assembly accessories;

• operating manual.

A powerful log splitter for large timber

The Scheppach HL3000GM 30 ton vertical log splitter is particularly suitable for users processing substantial quantities of firewood and large logs.

Its 30 ton splitting force, capacity for logs up to 110 cm long and 40 cm in diameter, and especially its dual 400V electric / PTO drive system make it an extremely versatile machine.

The log lifter, low base plate, 3-point linkage, large transport wheels and adjustable splitting stroke also make heavy timber easier and more efficient to process.

The HL3000GM is therefore an excellent solution for users looking for a powerful vertical log splitter that can operate either from a three-phase 400V power supply or from a tractor PTO.
