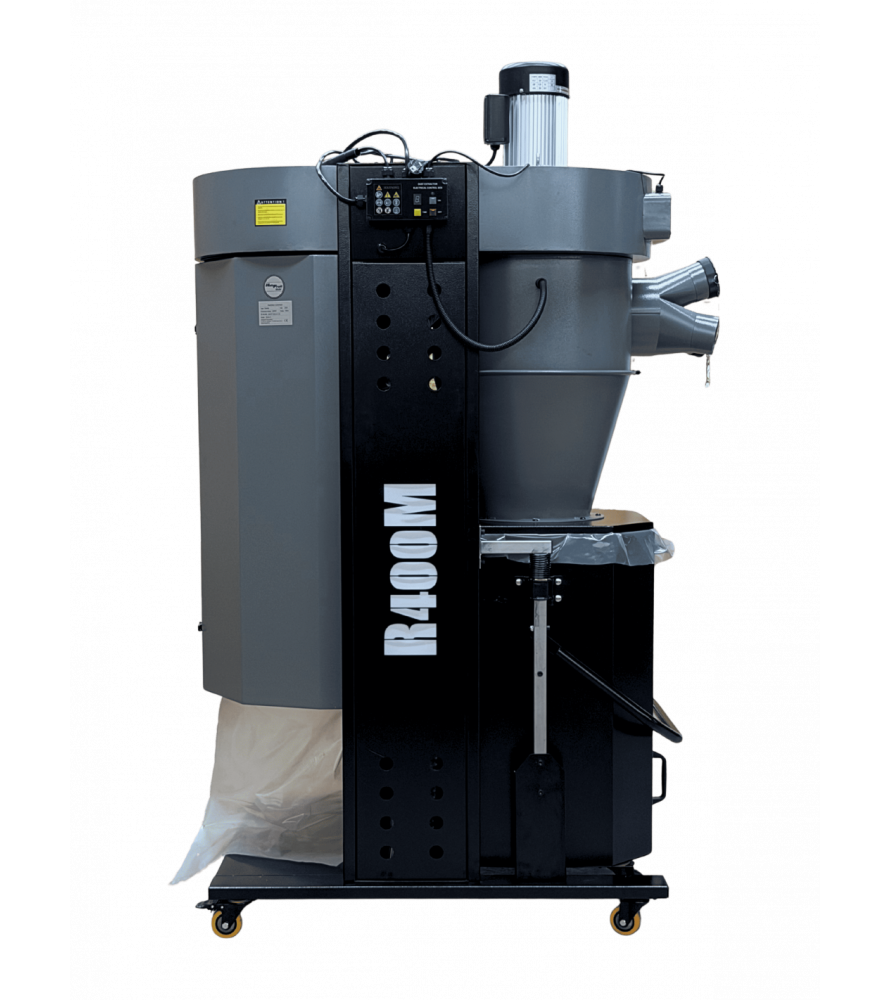

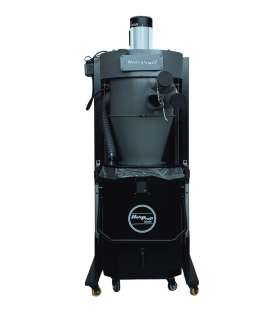

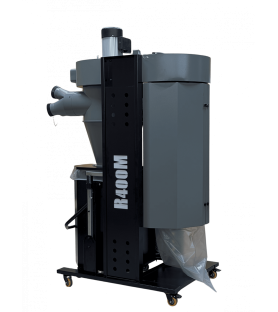

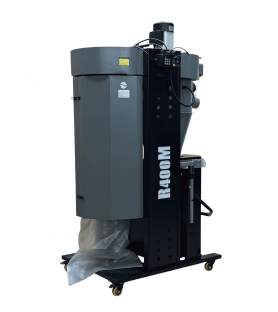

240-Litre Cyclonic Dust Collector Holzprofi Master R400M-TRI with HEPA H13 Filtration

The Holzprofi Master R400M-TRI dust collector is a professional three-phase dual-filtration extraction system designed for woodworking, joinery, cabinetmaking and production workshops requiring powerful chip extraction combined with highly efficient fine dust filtration.

Its system combines cyclonic separation, designed to separate wood chips and sawdust from the airflow, with a HEPA H13 filter cartridge for filtering the remaining fine dust particles. With its large 240-litre collection drum, airflow of 2860 m³/h according to the new measurement method and vacuum pressure of 2800 Pa, the R400M-TRI provides a powerful extraction solution for professional woodworking workshops.

This R400M-TRI version operates from a 400V three-phase power supply and is equipped with a powerful 3 kW / 4 HP motor.

Dual filtration: cyclone and HEPA H13 cartridge

The Holzprofi R400M-TRI uses a dual-filtration system designed to separate wood chips, sawdust and fine dust particles from the extracted airflow.

The first stage uses a cyclonic separation system. Air containing wood chips and dust enters the cyclone, where the rotating airflow separates a large proportion of the wood particles by centrifugal force.

This process allows most wood chips and sawdust to be collected before the airflow reaches the main filter cartridge, reducing the amount of material reaching the final filtration stage.

HEPA H13 filter cartridge for fine dust

After cyclonic separation, the air passes through a Ø370 x 1045 mm HEPA H13 filter cartridge.

The filter provides a stated filtration efficiency of 99.97% for particles measuring 0.3 micron and 100% for particles measuring 0.5 micron and above.

With a filter surface area of 4.32 m², the cartridge complements the cyclonic separator by capturing the fine dust particles that remain in the airflow after the first filtration stage.

Residual dust is collected in a dedicated PVC bag.

2860 m³/h airflow and 2800 Pa vacuum pressure

The R400M-TRI provides an airflow of 2860 m³/h according to the new measurement method. Holzprofi also specifies an airflow of 3700 m³/h according to the previous measurement method.

This distinction is important when comparing dust collectors, as stated airflow figures can vary depending on the measurement method used.

With a vacuum pressure of 2800 Pa, the R400M-TRI is designed to provide powerful extraction for woodworking machinery producing substantial volumes of wood chips, sawdust and dust.

Large 240-litre collection drum

The dust collector is equipped with a large 240-litre collection drum measuring Ø622 x 810 mm.

This generous capacity reduces the frequency of emptying, which is particularly useful in professional workshops regularly operating machinery that produces large quantities of wood chips, including surface planers, thickness planers, planer thicknessers and other stationary woodworking machines.

Collection drum fill warning system

For improved day-to-day convenience, the Holzprofi R400M-TRI features a collection drum fill warning system.

This makes it easier to monitor the fill level of the 240-litre drum and helps the operator manage emptying during regular or intensive workshop use.

Timed automatic electric filter cleaning

The R400M-TRI is equipped with a timed automatic electric filter cleaning system.

This system assists with cleaning the filter cartridge by helping to limit dust accumulation on the filter surface. It contributes to maintaining filtration performance while reducing the need for manual filter cleaning.

Remote control

A remote control is supplied, allowing the dust collector to be started remotely.

This feature is particularly useful when the extraction unit is installed away from the woodworking machine or connected to a workshop extraction network serving several machines.

Ø200 mm main inlet with 3 x Ø100 mm adaptor

The dust collector features a Ø200 mm main extraction inlet, allowing it to be connected to an extraction system suitably sized for its high airflow capacity.

A 3 x Ø100 mm adaptor is also supplied, providing additional flexibility when connecting the extractor to different workshop layouts or several branches of an extraction network.

Ø402 mm impeller

The Holzprofi Master R400M-TRI is equipped with a substantial Ø402 mm impeller. Combined with the 3 kW motor and the design of the extraction unit, it provides the airflow and vacuum pressure required for extracting wood chips and sawdust produced by woodworking machinery.

3 kW / 4 HP motor – 400V three-phase

The R400M-TRI is powered by a 3 kW / 4 HP motor operating from a 400V / 50 Hz three-phase power supply.

This three-phase version is particularly suitable for professional workshops equipped with a three-phase electrical supply and requiring a high-capacity professional cyclonic dust collector.

78 dB sound pressure level

The specified sound pressure level of the R400M-TRI is 78 dB, providing a controlled operating noise level considering the airflow capacity and Ø402 mm impeller of this professional extraction system.

Main advantages of the Holzprofi Master R400M-TRI Dust Collector

• Dual filtration: cyclone + HEPA H13 filter cartridge
• Stated filtration efficiency of 99.97% for 0.3-micron particles
• Stated filtration efficiency of 100% for particles of 0.5 micron and above
• 4.32 m² filter surface area
• Airflow of 2860 m³/h according to the new measurement method
• Stated airflow of 3700 m³/h according to the previous measurement method
• Vacuum pressure of 2800 Pa
• Large 240-litre collection drum
• Timed automatic electric filter cleaning system
• Remote control
• Collection drum fill warning system
• Ø402 mm impeller
• Ø200 mm main extraction inlet
• 3 x Ø100 mm adaptor supplied
• Powerful 3 kW / 4 HP motor
• 400V three-phase power supply
• 78 dB sound pressure level
• Designed for professional woodworking workshops

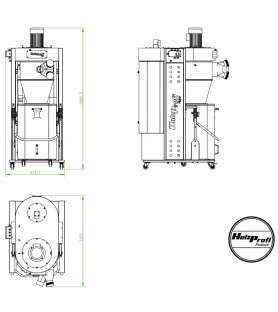

Technical specifications of the Holzprofi Master R400M-TRI

A professional three-phase dust extraction system for woodworking workshops

The Holzprofi Master R400M-TRI stands out through its combination of cyclonic separation and a HEPA H13 filter cartridge, allowing the extraction system to handle both wood chips and sawdust as well as the remaining fine dust particles.

Its 240-litre collection drum, 2860 m³/h airflow, 2800 Pa vacuum pressure and Ø200 mm main inlet make it particularly suitable for workshops equipped with woodworking machinery producing substantial volumes of chips and sawdust.

The timed automatic electric filter cleaning system, remote control and collection drum fill warning system also improve everyday operating convenience. With its 3 kW / 4 HP motor and 400V three-phase power supply, the R400M-TRI provides a powerful professional cyclonic dust extraction solution for demanding woodworking workshops.
