Important recommendation from Probois for many woodworking machines, such as this combined machine :

Before starting up, always check the inside of your machine, make sure the belts are correctly installed, tighten the bolts, grease the tables, etc., as the various transport methods cause vibrations.

Always use a 2.5 mm² wire extension cord.

The extension cord must not exceed 10 meters and must not be coiled.

The use of reels, power strips, or multi-socket adapters is PROHIBITED.

Install an electrical panel with special machine start fuses of at least 16A.

Have a compliant electrical panel with neutral and ground connections.

Always work with a dust collector for your health and to maintain the machine's warranty.

Always grease cast iron tables with wood lubricant.

Always work with the safety guards in place.

Do not work with dull or blunt blades; this can damage the mechanism, the planer feed, and break the belt.

The machine won't start? The chip ejection cover is probably incorrectly installed on the jointer/planer side; this is a safety feature!

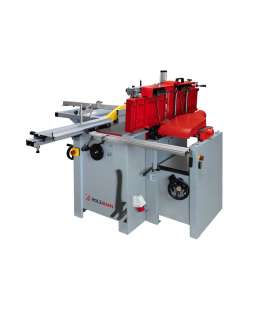

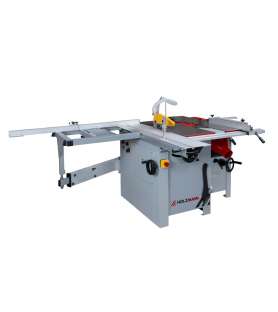

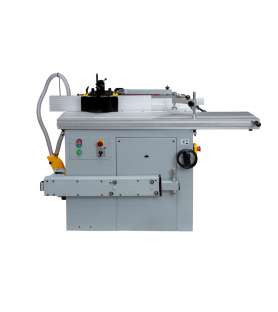

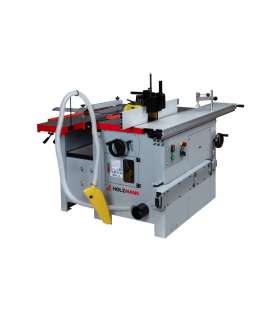

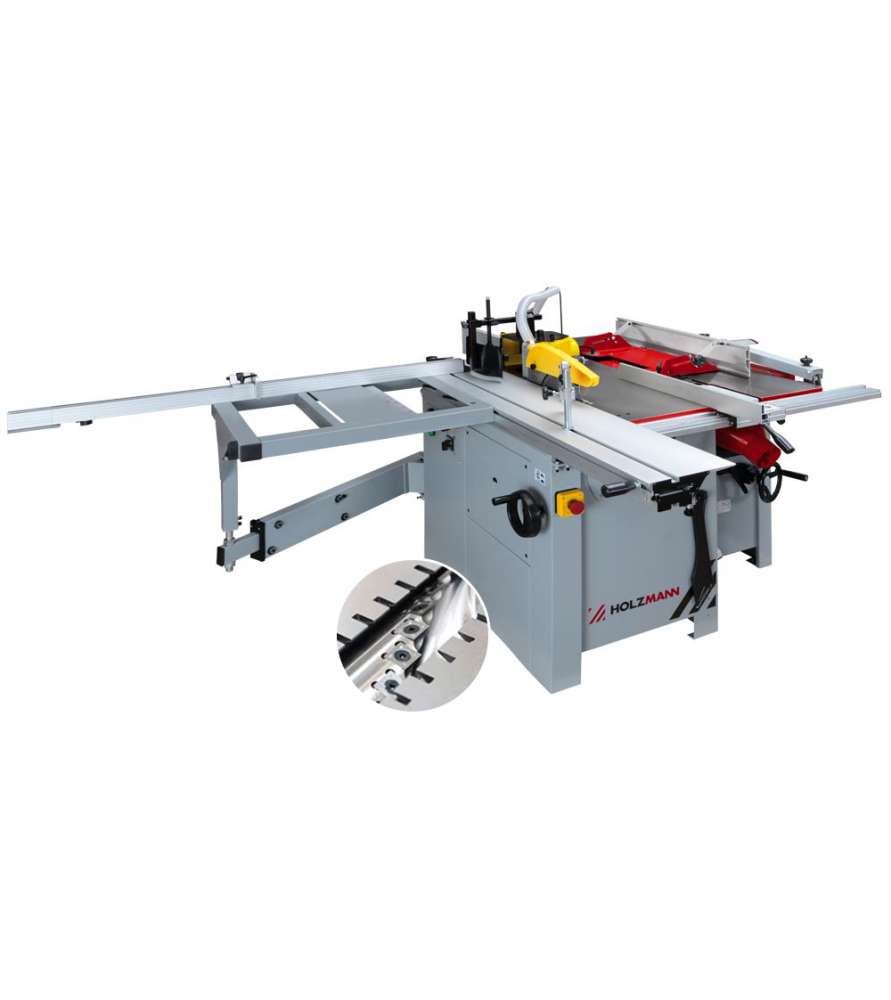

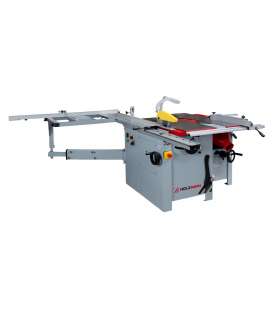

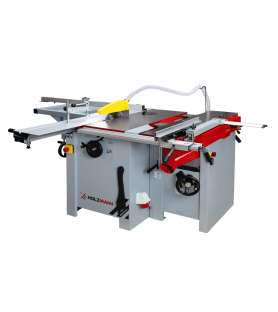

Designed for small spaces, the HOLZMANN K5260PSMW2 – 400V combines several high-performance machines into one compact and versatile solution, ideal for demanding DIY enthusiasts.

This intelligently designed machine integrates a circular saw, spindle shaper unit, jointer, and thickness planer in one compact device. A standout feature is the spiral cutter block on the planer, paired with a format sliding table for precise and professional results. Three independently driven motors power each unit, delivering strong and reliable performance for every application – whether you're sawing, planing, or milling.

All in all: A compact powerhouse that meets nearly every workshop need in one smart, multifunctional unit.

Advantages of the Holzmann K5260PSMW2 5 operation combined machine with helical shaft - 400V :

• saw blade can be swiveled up to 45° using a hand wheel

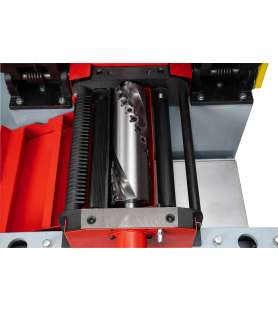

• spiral cutter shaft for planing and thicknessing with 2 grooves and 24 cutting plates
• sliding table with extension table and crosscut fence (1225-2100 mm)
• function selection via rotary switch
• spindle shaper motor power 1.5 kW
• circular saw motor power 2.2 kW
• planer-thickness planer motor power 2.2 kW
• thickness planer with activating/deactivation feed-lever: feed-speed max. 7 m/min

The Holzmann K5260PSMW2 5 operation combined machine with helical shaft - 400V comes with :

TCT saw blade (254 x 30 x 3.0/2.2 mm), dust collector hose (saw blade dust hood to connection piece), 24 x cutter inserts pre-assembled (15x15x2.5-R150 mm)

Technical specifications of the Holzmann K5260PSMW2 5 operation combined machine with helical shaft - 400V :

planing

• planing table size : 1090 x 260 mm
• max. thicknessing cutting depth : 3 mm
• planer fence : 700 x 123 mm
• fence tilt : 90-45°

motor data

• motor power s1 : 2200 | 1500 | 2200 W
• voltage : 400 V / 50 Hz

measurements

• table size : 920 x 410 mm
• table height : 850 mm
• sliding table : 1320 x 238 mm
• outrigger table : 680 x 530 mm
• dust collector port : 100 / 100 / 32 mm
• total dimensions : 1320 x 2330 x 1090 mm

cutting performance

• max. cutting height 90° : 78 mm
• max. cutting height 45° : 63 mm
• max. trimming : 1300 mm
• max. cutting width at parallel fence : 710 mm

thicknessing

• table size : 545 x 258 mm
• cutting depth : 4 mm
• thicknessing height : 225 mm

general planing

• shaft diameter : 70 mm
• shaft speed : 5500 min-1

technical specification

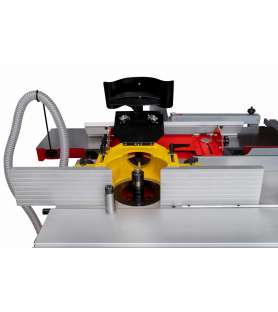

• milling spindle diameter : 30 mm
• milling spindle speed : 1400 | 4000 | 6000 | 9000 min-1
• spindle stroke : 110 mm
• table opening : 160 mm
• max. tool diameter below table : 160 mm
• max. tool diameter above table : 180 mm

circular saws

• sawblade : 254 x 30 x 3/2,2 mm
• sawblade speed : 4000 min-1
• sawblade swivel : 0-45°

volume level and vibration

• sound power level : 103 dB(A)
• sound pressure level : 89,5 dB(A)

weight

• gross weight : 420 kg
• net weight : 362 kg
