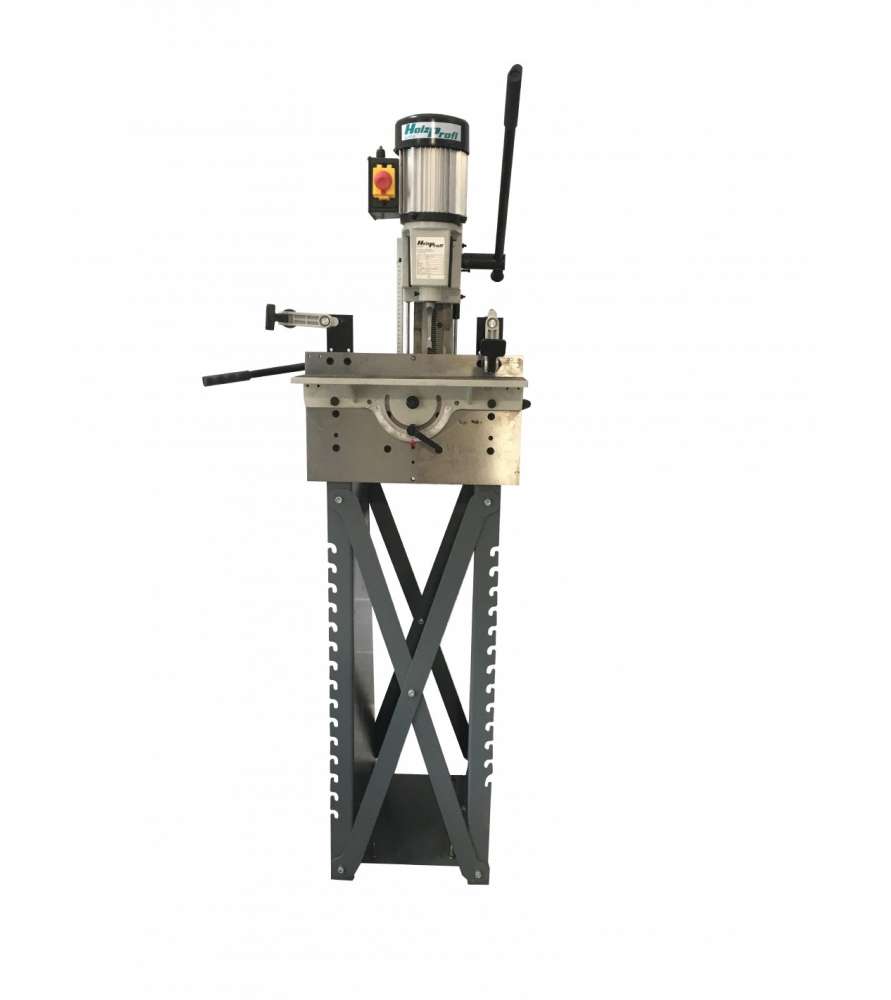

General description of the Holzprofi MAB01 square chisel mortiser:

• This mortise is made with precision and does not require any rework, its ends being perfectly square.
• It is made of cast iron and steel in its entirety, which provides essential rigidity when machining mortises undergoing high mechanical stress.
• It is equipped with gas struts compensating the weight of the head, large operating levers with multiple positions, an asynchronous motor and precise column guidance.

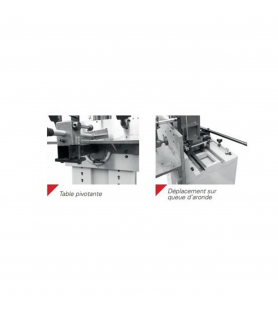

• The movement of the table and the head is done on a dovetail.

Technical characteristics of the Holzprofi MAB01 square chisel mortiser:

• Shaft rotation speed: 2,800 rpm
• Dimensions of the table: 500 x 250mm
• Table tilt: 0 - 45°
• Maximum workpiece width: 200 mm
• Maximum room height: 200 mm
• Slotting capacity: 6 to 26 mm
• Maximum chuck capacity: 13 mm
• Ø chisel: 19 mm
• Distance chisel to guide: 100 mm
• Maximum mortising depth: 76 mm
• Drill stroke: 200 mm
• Guide dimensions: 55 x 400 mm
• Left and right side travel: 200 mm
• Front / rear travel: 195 mm
• Maximum door height: 950 mm

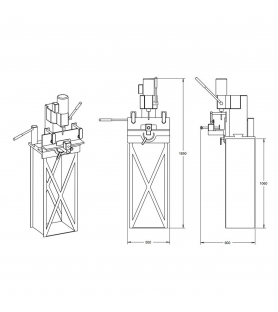

• Dimensions L x b x h: 900 x 500 x 1,650 mm
• Motor power 400V / 50Hz: 1.1kw / 1.5hp
• Weight: 180kg
