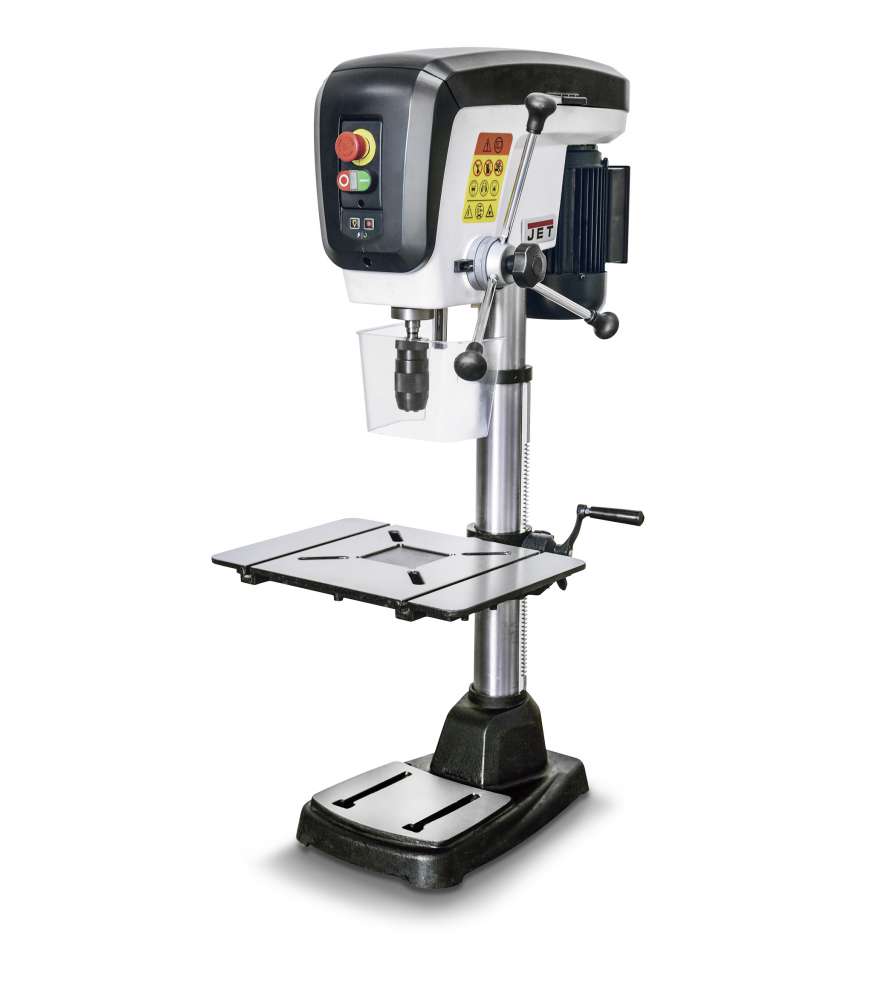

General description of the JET JDP 15B-T bench drill press :

• Built-in depth stop makes repetitive drilling quick and easy
• Large cast iron base provides stability
• One-handed belt tension allows for quick gear changes
• Power switch includes safety key and large paddle-style off button
• Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
• Replaceable MDF table insert
• Table edge lip designed for easy clamping
• Xacta-X laser system easily identifies the drill center

The JET JDP 15B-T bench drill press comes with :

• Chip protector
• 16mm chuck
• Lighting
• Cross line laser guide

Technical characteristics of the bench drill press JET JDP 15B-T :

• Voltage: 400V ~3L/N/PE 50Hz
• Power: 0.55kW (0.75 HP) S1
• Machine lighting: LED
• Number of rounds: 16
• Speed range: 180 - 2900 rpm
• Shaft: CM2
• Keyless chuck (with B16 arbor): 1-16mm
• Drilling: 80mm
• Sleeve diameter: 47 mm
• Spindle / column distance: 190 mm
• Distance chuck / max table: 471mm
• Chuck / base distance: 683 mm
• Table dimensions D x W: 320 x 454mm
• Table slides (4x): 15 x 70mm
• Table T-slides (2x): 13mm
• Spacing of the T slides: 270 mm
• Table insert (MDF): 95 x 95 x 16mm
• Table swivel: +/- 90°
• Maximum table load: 30 kg
• Column diameter: 73 mm
• Base dimensions D x W: 460 x 288 mm
• Base mounting surface D x W: 200 x 240mm
• Base grooves (2x): 15 x 160 mm
• Groove spacing: 126 mm
• Distance between mounting holes (2x Ø 11): 200 mm
• Dimensions: D x W x H 677 x 434 x 1115 mm
• Net weight: 71 kg
