Bench column drill JET JDP 15B - 230V
  • Bench column drill JET JDP 15B - 230V

Bench column drill JET JDP 15B - 230V

1,095.00 € Tax included

Including €2.80 for ecotax

Reference: JET-JDP15B-230V

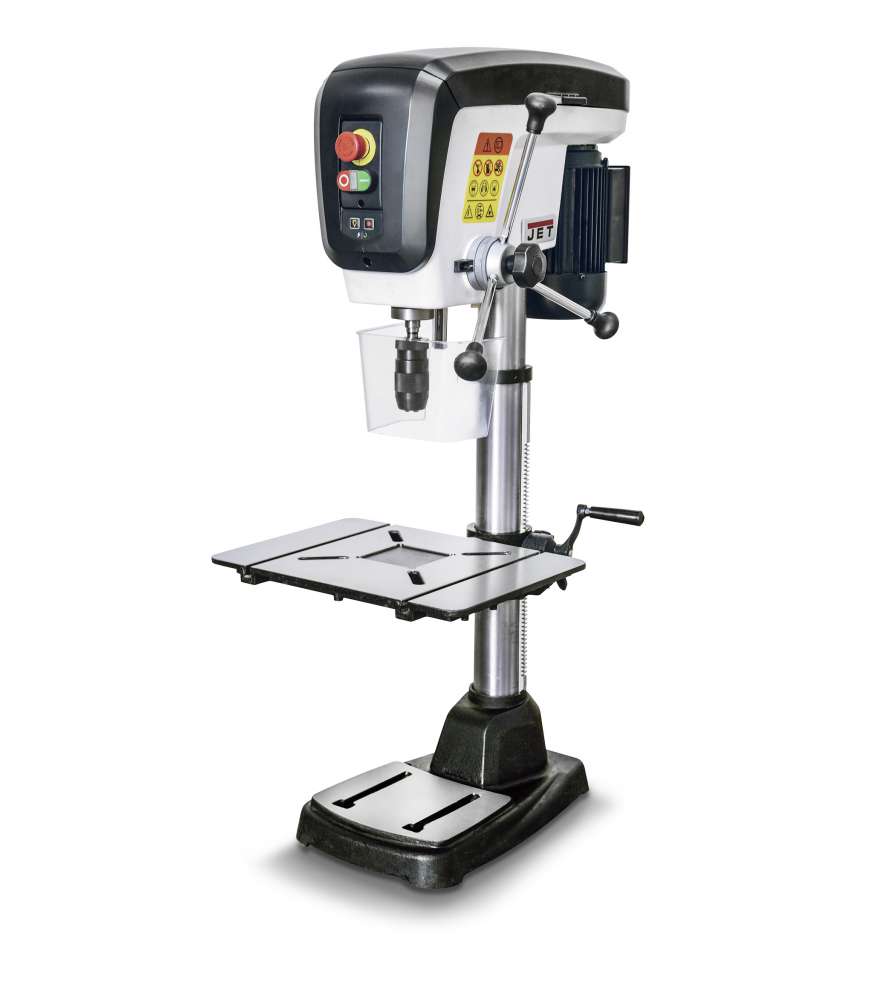

Bench drill press JET JDP 15B - 230V equipped with a large cast iron base and a high precision laser system, one-hand belt tensioning.

Quantity
Factory Shipping, delivery time 5-8 working days

General description of the JET JDP 15B bench drill press :

  • Built-in depth stop makes repetitive drilling quick and easy
  • Large cast iron base provides stability
  • One-handed belt tension allows for quick gear changes
  • Power switch includes safety key and large paddle-style off button
  • Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
  • Replaceable MDF table insert
  • Table edge lip designed for easy clamping
  • Xacta-X laser system easily identifies the drill center

The JET JDP 15B bench drill press comes with :

  • Chip protector
  • 16mm chuck
  • Lighting
  • Cross line laser guide

Technical characteristics of the bench drill press JET JDP 15B :

  • Motor power: 0.55 Kw
  • Power supply: 230V
  • Speeds (16): 180 to 2900 rpm
  • Morse taper: CM2
  • Capacity: 23 mm (wood)
  • Gooseneck: 190mm
  • Spindle stroke: 80 mm
  • Dimensions of the table: 320x454 mm
  • Table swivel: 45D/45G °
  • Grooves: T-12
  • Spindle/table stroke: 471 mm
  • Spindle/Base stroke: 683 mm
  • Column diameter: 73 mm
  • Dimensions (LxWwH): 845x325x92 mm
  • Weight: 79 Kg
