Bandsaw JET JWBS-18 flywheel 460 mm (Cut 406 mm) - 230V
  • Bandsaw JET JWBS-18 flywheel 460 mm (Cut 406 mm) - 230V

Bandsaw JET JWBS-18 flywheel 460 mm (Cut 406 mm) - 230V

3,145.00 €

Including €2.50 for ecotax

Reference: JET-JWBS18-230V

The JWBS-18 bandsaw has a 460mm flywheel and the 32mm blade width allows for edging over a cutting height of 406mm, the cast iron table tilts 45 degrees and the depth of cut is 457 mm.

Quantity
delivery within 15 to 20 days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

Advantages of the JET JWBS-18 band saw:

  • Quick release system of the blade by lever when the machine is stopped
  • 2 cutting speeds of 570 and 900 m/min
  • Cast iron flywheel balanced with rubber gasket protecting the blade set

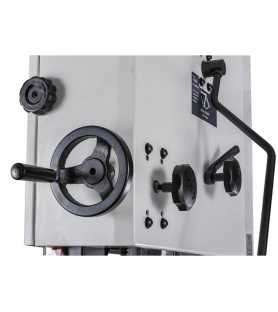

  • Rack and pinion guide with millimeter scale for precise cutting height adjustment
  • Parallel cutting guide with eccentric locking handles
  • Rectified gray cast iron cutting table, tiltable at -10°/0°/45°
  • Upper and lower blade guide by bearing with eccentric
  • Blade tension adjustment window

The JET JWBS-18 bandsaw comes with:

  • Precision stopper with device for parallel cut
  • Adjustable miter fence +/-60°
  • Switch with undervoltage release
  • 2 x 100 mm suction outlet
  • 20mm width saw blade and 7mm tooth pitch
  • Upper and lower precision blade guide
  • BG dust test

Technical characteristics of the JET JWBS-18 band saw:

  • 230V motor power: 1.5 KW
  • Motor power 400V: 2.2kW
  • Bandsaw blade size 3 – 32 mm
  • Max height cutting height 406 mm
  • Cutting width at the parallel guide 457 mm
  • Swivel range - 45°
  • Table size 692 x 508 mm
  • Table height 940mm
  • Flywheel diameter 458 mm
  • Cutting speed Wood 900 m/min.
  • Cutting speed Metals 570 m/min
  • Saw blade min 3 mm
  • saw blade max. 30mm
  • Saw blade length 3810 mm
  • Suction connection diameter 2 x 100 mm
  • Sound volume 75dB
  • Dimensions 914 x 864 x 2032mm
  • Net weight (kg) 228.00 kg
