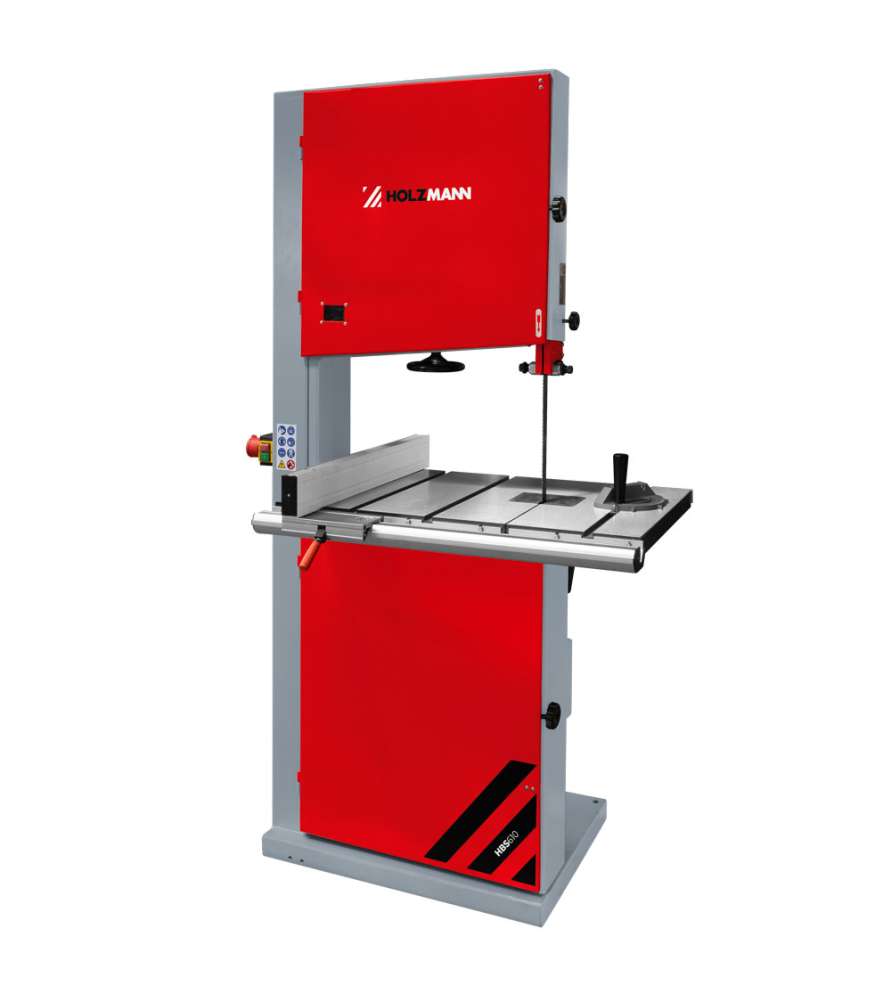

This Holzmann HBS610 band saw is equipped with a drilled base for securing the machine to the ground!

It is also equipped with a powerful, durable and quiet asynchronous motor and a welded, rigid and robust frame.

The advantages of the Holzmann HBS610 band saw:

• Cast iron table tilting from 0 to 45 °.
• Large aluminum table cradle.
• Double rack cradle.
• Upper and lower roller blade guide, rack-mounted upper blade guide and crank height adjustment.
• Adjusting blade tension by a crank.
• Quick release handle for the blade.
• 2 flywheels ø 610 mm aluminum coated with a rubber band.
• Longitudinal cutting guide with reading magnifying glass for the graduation and quick clamping handle, graduation on each side of the blade.
• Adjustable miter guide
• Security contactor on each door.

Technical specifications of the Holzmann HBS610 band saw:

• Cutting width: 590 mm
• Cutting height: 310 mm
• Table dimensions: 700 x 500 mm
• Steering wheel diameter: 610 mm

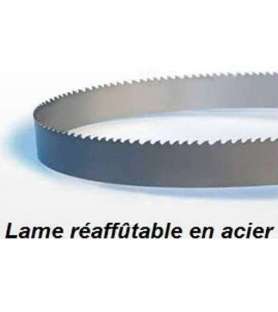

• Ribbon length: 4080 mm
• Tilting of the table: 0 - 45 °
• 230V motor power: 3000 W - 4 CV
• Suction nozzle: 100 mm
• Gross / net weight: about 370 Kg
• Machine height: 199 cm

Click here for the user manual
